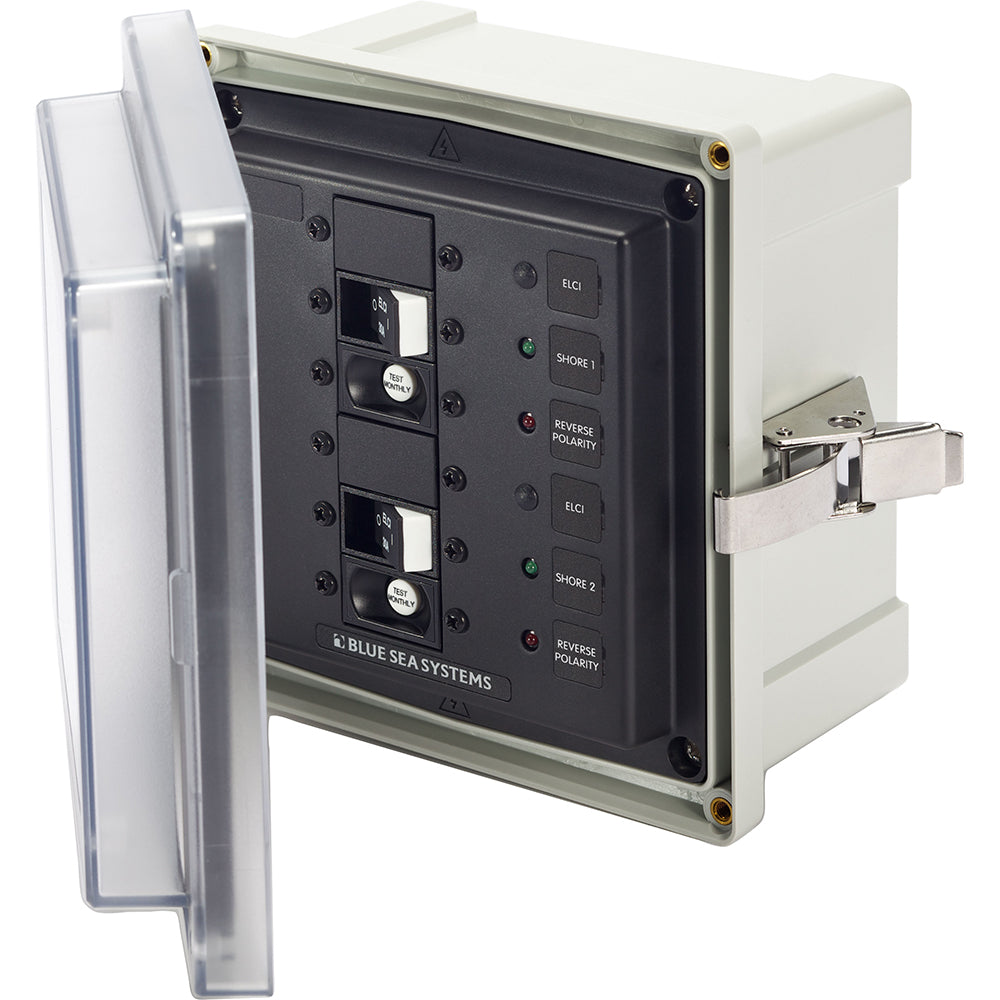

Blue Sea 3117 - SMS Panel Enclosure w/2 ELCI (30A) - 120V AC

Ensure the safety and reliability of your boat's electrical system with the 3117 SMS Panel Enclosure. Specifically designed for marine applications, this robust enclosure accommodates dual Equipment Leakage Circuit Interrupters (ELCI) and other large frame devices, providing superior protection and easy monitoring of your vessel's electrical circuits.

Features

• Custom breaker loading with blank apertures
• Durable glass-filled polycarbonate base for enhanced strength
• Clear cover for effortless visibility of circuit breaker status
• Overlapping cover design for increased strength and gasket protection
• Seamless, oversized PUR gasket formed in place for superior sealing
• Removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch securely holds the cover without penetrating the enclosure
• Compatible with Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands to prevent moisture ingress
• Integrated LED lights for backlighting and ON indication

Technical Specifications

Parameter	Details
Circuit Breaker Type	2 x ELCI (30A) Main 120V
Overall Dimensions (H x W x D)	7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
Enclosure Dimensions (H x W x D)	6" x 6" x 4" (152 x 152 x 102mm)
LED Indicators	2 x Red (Reverse Polarity - 120V AC), 2 x Green ON (120V AC)
Power Type	AC
Voltage	120V
Box Dimensions	7"H x 10"W x 10"L
Weight	4.4 lbs
UPC	632085031176

What's in the Box

• 3117 SMS Panel Enclosure
• 6 Waterproof Glands
• Product Labels
• Mounting Hardware
• Instruction Manual

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
