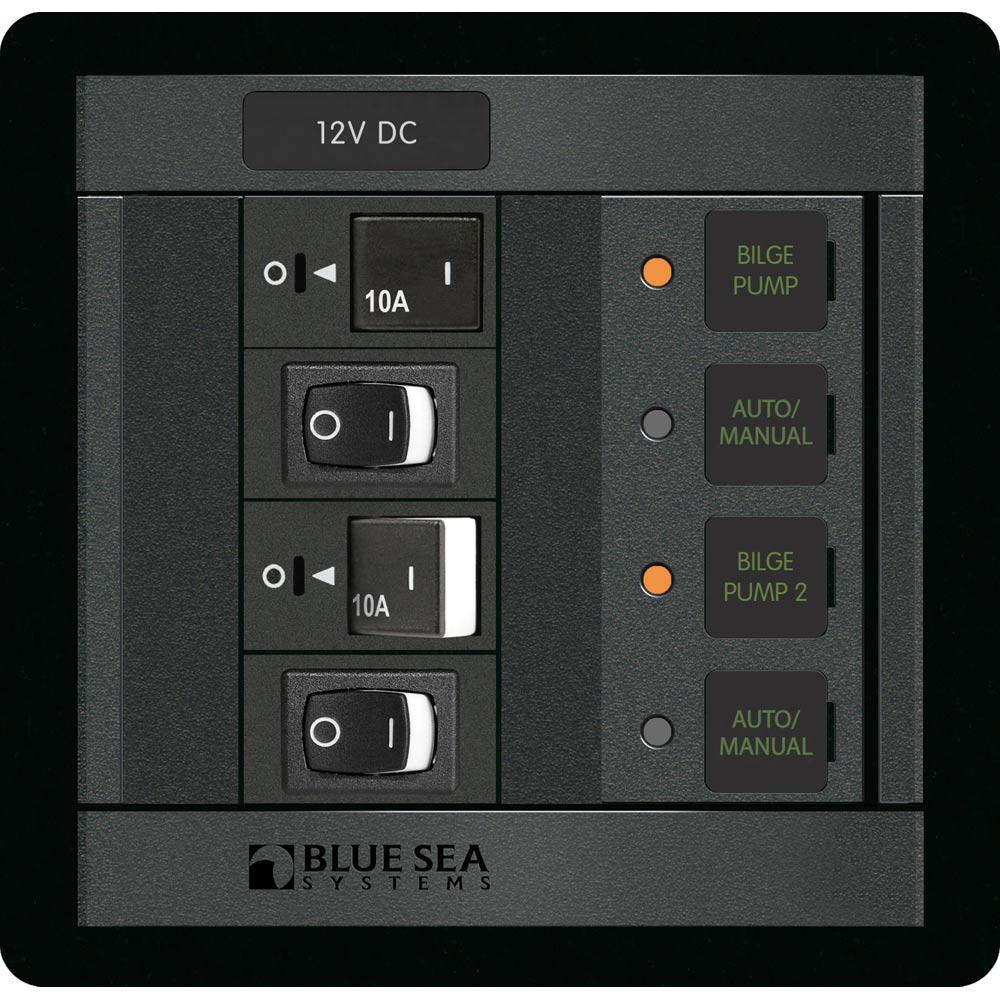

Blue Sea 1522 360 Panel Dual Bilge Pump Control

The 360 Panel Dual Bilge Pump Control is an essential component for marine enthusiasts and boaters, providing reliable and efficient control of your vessel's bilge pumping system. Whether you're navigating calm waters or facing rough seas, this control panel ensures your bilge pumps operate seamlessly to keep your boat dry and safe from unwanted water accumulation. Featuring user-friendly manual override switches and state-of-the-art circuit protection, the 360 Panel is designed for durability and ease of installation, making it a must-have for any serious boating setup.

Features

• Dual Pump Control: Manage two bilge pumps simultaneously for enhanced reliability and redundancy.
• On-Indicating LED: Displays power availability at the bilge pump float switch, ensuring you always know the status of your pumps.
• Restricted-Off Circuit Breakers: Provide 24-hour circuit protection to the bilge pump float switches, safeguarding against electrical faults and potential damage.
• Manual Override Switch: Equipped with an On-indicating LED, this switch allows you to manually activate the pumps and provides visual confirmation when the pump is running, whether manually or automatically via the float switch.

Specifications

Nominal Voltage	12V DC
Height	4.75" (120.65mm)
Width	4.88" (123.95mm)
Box Dimensions	5"H x 7"W x 9"L
Weight	1.3 lbs
UPC	632085015220
Power Input	DC

What's Included

• (2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
• (2) - 7480 - Rocker Switch SPST - ON-OFF

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Download Quick Guide (PDF)
