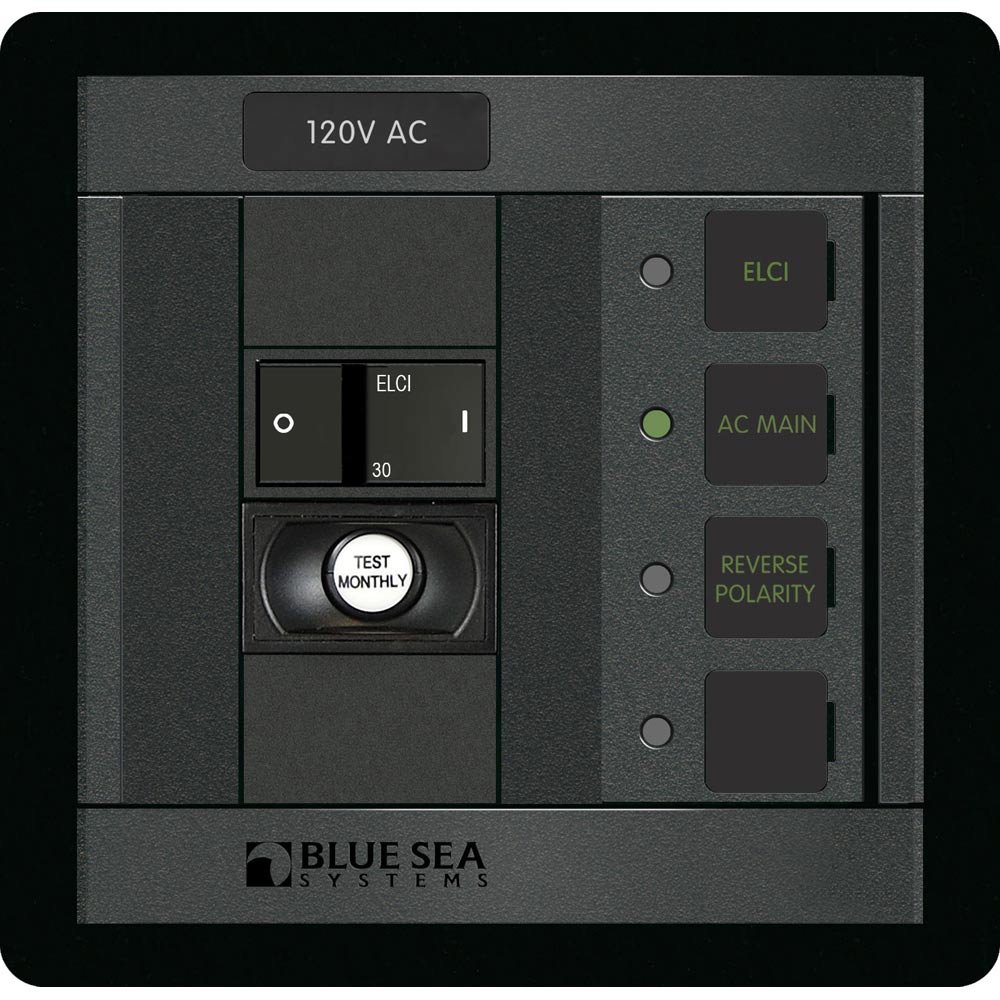

Blue Sea 1502 ELCI Main 30A Double Pole Panel

The ELCI Main 30A Double Pole Panel is a crucial component for ensuring safe and reliable shore power connections on your vessel. Designed specifically for marine applications, this circuit breaker panel provides comprehensive protection against overcurrent and electrical leaks, adhering to the highest industry standards to keep your boat's electrical system secure.

Key Features

• 30A AC ELCI Main Residual Current Circuit Breaker: Offers robust protection with a leakage trip amperage of 30 mA, ensuring safety against electrical faults.
• Compliant with ABYC E-11: Delivers overcurrent and leakage protection, meeting the American Boat and Yacht Council standards for comprehensive shore power safety.
• Reverse Polarity Indicator: Equipped with a red "Reverse Polarity" LED to alert you instantly if the power connections are incorrect.
• Backlit Circuit Labels: All circuit label positions are backlit for easy identification in low-light conditions.
• ON Indicators: Bright "ON" LEDs provide a clear status of active circuits, enhancing usability and monitoring.

Technical Specifications

Attribute	Details
Positions	1
Nominal Voltage	120V AC
Current Rating	30A
Height	4.75" (120.65mm)
Width	4.88" (123.95mm)
Depth	3.00" (76.2mm)
Weight	1.10lb (0.5kg)
AC/DC	AC
Box Dimensions	6"H x 6"W x 9"L
Weight	2.2 lbs
UPC	632085015022

What's Included

• (1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
