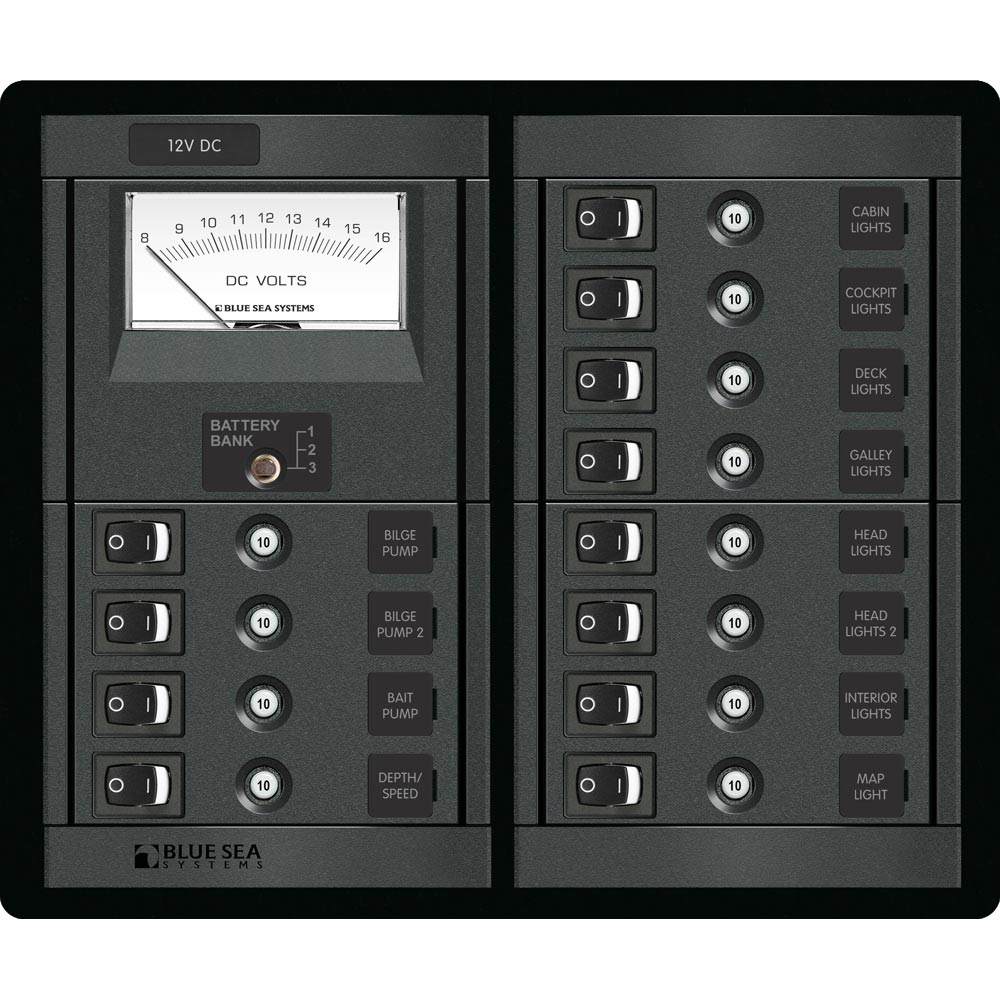

Blue Sea 1464 12 Position Switch CLB + Meter Square

The 12 Position Switch CLB + Meter Square is a versatile and reliable solution designed specifically for marine and boating applications. This robust panel allows you to efficiently monitor and control multiple battery banks, ensuring optimal performance and safety for your vessel’s electrical system.

Features

• Equipped with high-precision voltmeters and ammeters for accurate monitoring
• Integrated toggle switch for seamless voltage monitoring across up to three battery banks
• Comes with a 4205-Square Format Label Set for easy identification and organization

Specifications

Feature	Details
Positions	12
Nominal Voltage	12V DC
Maximum Amperage	120A
Height	7.75" (196.85mm)
Width	9.25" (234.95mm)
Depth	3.50" (88.9mm)
Weight	4.29 lb (1.95 kg)

Note: Maximum amperage ratings depend on the use of appropriately sized fuses and wiring for specific applications.

Included Components

• (12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
• (12) - 7480 - Rocker Switch SPST - ON-OFF
• (1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
• (1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Power Type: DC
• Box Dimensions: 6"H x 10"W x 13"L
• Weight: 3.65 lbs
• UPC: 632085014643

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
