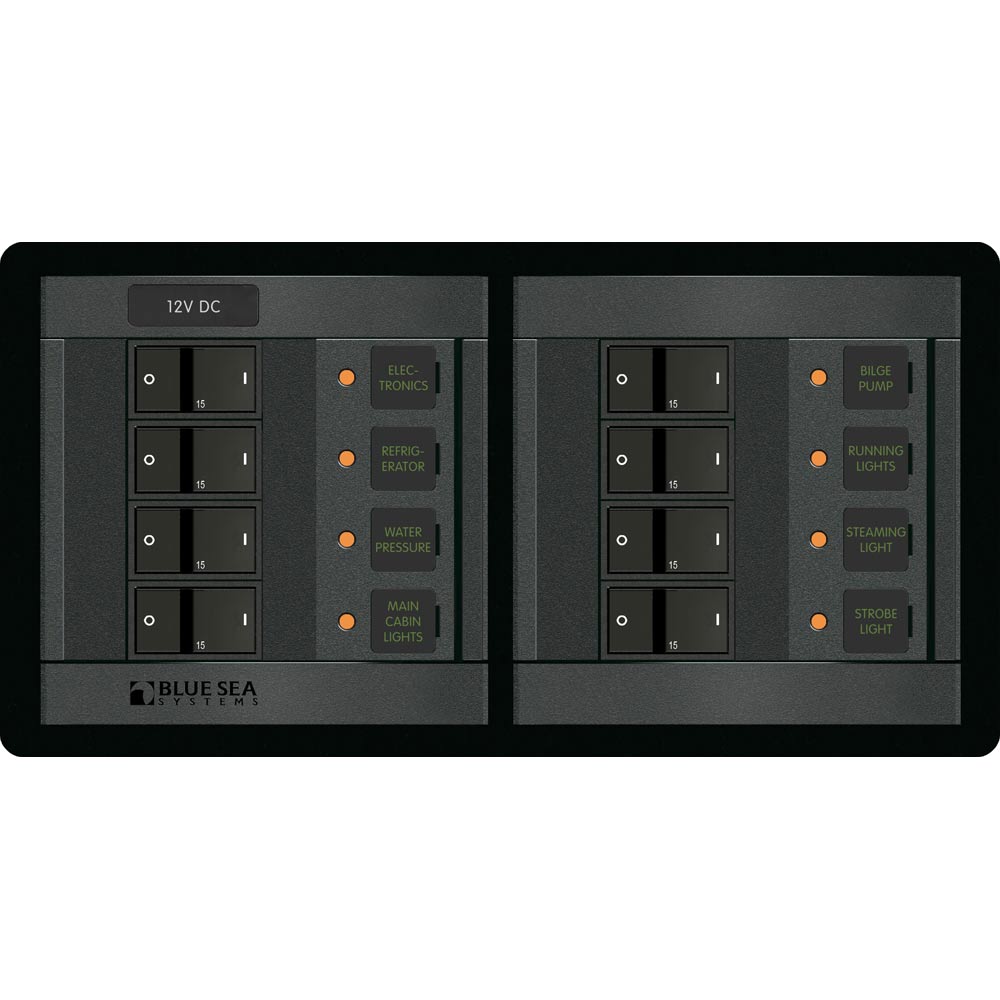

Blue Sea 1225 12V DC 8 Position - Horizontal

The 12 Volt DC 8 Position Horizontal breaker panel is an essential component for marine and boating electrical systems, providing reliable protection and organization for your vessel's power distribution. Designed to handle multiple branch circuits, this horizontal breaker box ensures your marine electronics and equipment operate safely and efficiently.

Key Features

• Supports 4 to 32 branch circuits with built-in 15 Ampere circuit breakers, offering flexibility for various marine applications
• Optional integration with voltmeters, ammeters, and digital multimeters for precise electrical monitoring
• Comes with a 4205-Square Format Label Set for easy identification and organization of circuits

Specifications

Feature	Details
Positions	8
Nominal Voltage	12V DC
Maximum Amperage*	100A per bus
Dimensions	Height: 4.75" (120.65mm) Width: 9.25" (234.95mm) Depth: 3.00" (76.2mm)
Weight	3.84 lb (1.74 kg)
AC/DC	DC
Box Dimensions	5"H x 10"W x 12"L
UPC	632085012250

*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wire for a given application.

What's Included

• 8 x 7403 - A-Series Flat Rocker Circuit Breakers - Single Pole 15A
• 1 x 4205 - Basic DC Label Kit - 30 Black Square Labels

Safety Compliance

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
