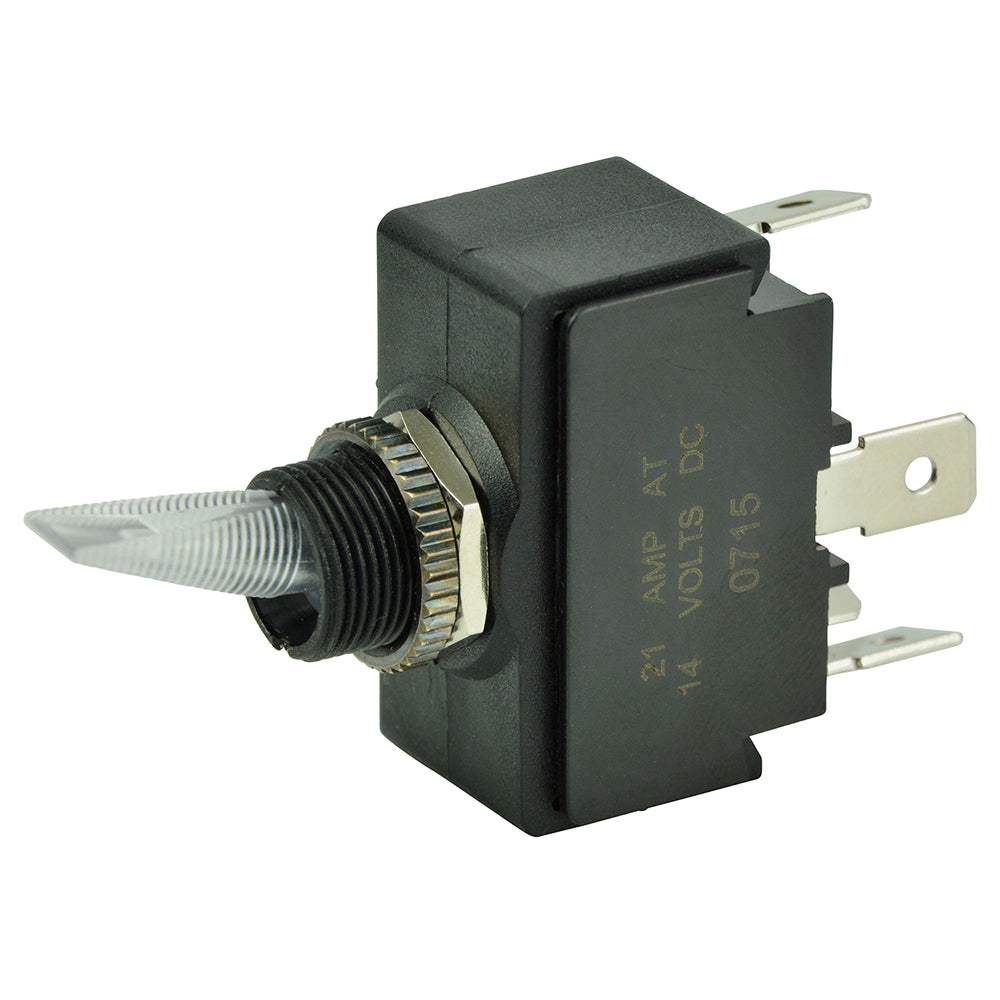

BEP SPST Lighted Toggle Switch - Red LED - 12V - ON/OFF

The SPST Lighted Toggle Switch is an essential component for marine and boating applications, providing reliable control for your vessel's electrical systems. Designed for durability in harsh marine environments, this switch ensures seamless operation whether you're navigating open seas or docking in calm waters.

Key Features

• Voltage Compatibility: Operates at a nominal 12V DC, ideal for most marine electrical setups.
• High Current Rating: Rated for 25A at 12V DC, capable of handling significant electrical loads.
• Terminal Configuration: Equipped with four 1/4" blade terminals for versatile wiring options.
• Illuminated Indicator: Red LED lights up when the switch is in the ON position, providing clear visual confirmation of operation; remains clear when OFF.
• Mounting Flexibility: Features a 15/32" mounting hole, suitable for panels up to 1/8" thick, ensuring easy installation on various marine dashboards and control panels.
• OEM Equivalent: Direct replacement for Cole Hersee part number M-54111-01, ensuring compatibility with existing setups.

Specifications

Attribute	Details
Throw/Pole	SPST (Single Pole Single Throw)
Color	Clear with Red LED
Action	On/Off Toggle
Nominal Voltage	12V DC
Current Rating	25A at 12V DC
Terminals	Four 1/4" Blade Terminals
Mounting Hole	15/32"
Panel Thickness	Up to 1/8"
Dimensions (Box)	2"H x 3"W x 5"L
Weight	0.1 lbs
UPC	870216046570

Installation Guide

Installing the SPST Lighted Toggle Switch in your marine vessel is straightforward. Follow these steps for a secure and efficient setup:

1. Choose an appropriate location on your dashboard or control panel that is easily accessible.
2. Mark the position for the 15/32" mounting hole.
3. Drill the mounting hole in the selected panel, ensuring it fits panels up to 1/8" thick.
4. Attach the switch securely using the provided mounting hardware.
5. Connect the four 1/4" blade terminals to your electrical system, ensuring proper insulation and secure connections to handle up to 25A.
6. Test the switch by toggling it ON and OFF, verifying the red LED illumination signifies proper operation.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Why Choose Our Toggle Switch?

Designed specifically for marine and boating applications, our SPST Lighted Toggle Switch offers durability, reliability, and ease of use. Whether you're upgrading your boat's electrical system or building a custom control panel, this switch provides the performance and visibility needed in demanding marine environments.
