BEP Pro Installer 400A Dual Bank Control Switch - MC10
BEP Pro Installer 400A Dual Bank Control Switch - MC10 is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Pro Installer 400A Dual Bank Control Switch - MC10 from our award-winning Pro Installer EZ Mount range is the perfect solution for marine and boating electrical management. Combining the functionality of three switches in one—House, Start, and Emergency Parallel—it offers intuitive and reliable control for boaters, ensuring optimized battery usage and enhanced safety on board.
Key Features
- Triple functionality: House, Start, and Emergency Parallel in one switch
- Unique isolated-On position allows independent control of house loads and VHF radio
- Optimized battery management with separate deep cycle and starting batteries
- Protects sensitive electronics from starter motor voltage spikes by separating House and Engine loads
- EZ Mount design for easy surface mounting and compact installations
- Compatible with Pro Installer Busbar Range for streamlined installation
- UL1107 ignition protection and CE tested for safety and reliability
- Durable construction with tinned copper 10mm (3/8 inch) studs, stainless steel washers and nuts, and fiber-reinforced plastics
- Waterproof to IP67 rating, ensuring protection in harsh marine environments
- Removable knob and side plates for easy maintenance and protection
- Industry-standard 3.85 x 3.85-inch footprint for seamless integration
- Fully tested for pressure sealing, rotation force, and electrical load
Technical Specifications
| Mounting | Surface, Rear, or Front |
|---|---|
| Voltage | 48V DC (compatible with 12-48V systems; both banks must be the same voltage) |
| Rating | 400A Continuous / 600A Intermittent / 1500A Cranking |
| Dimensions | 3.85" x 3.85" x 3.62" |
| Operation Positions | 1, 1/2, Parallel, Off |
| Studs | 4 x 10 mm (3/8 inch) |
Additional Specifications
| AFD | No |
|---|---|
| Lockable | No |
| Positions | 1-1/2-Parallel-Off |
| Continuous Amperage | 400A |
| Box Dimensions | 4"H x 7"W x 8"L |
| Weight | 1.2 lbs |
| UPC | 843687007807 |
Installation and Compatibility

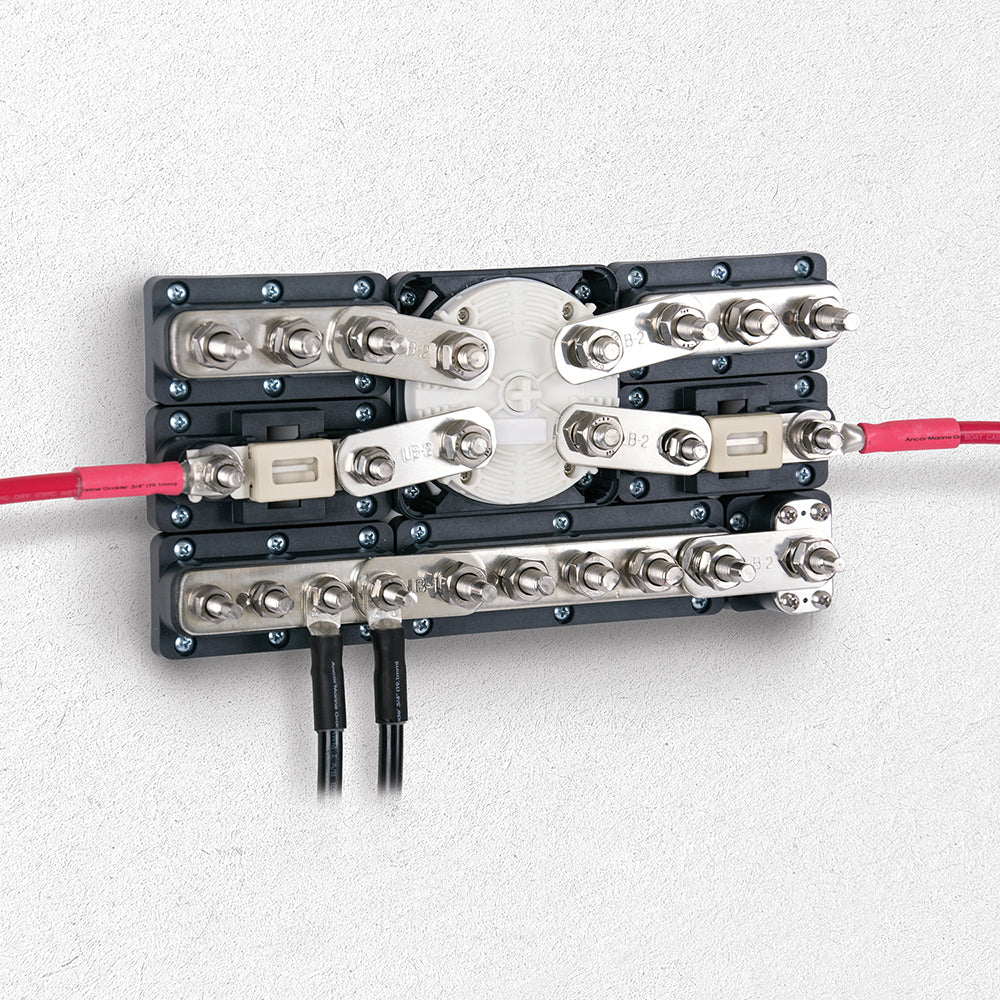

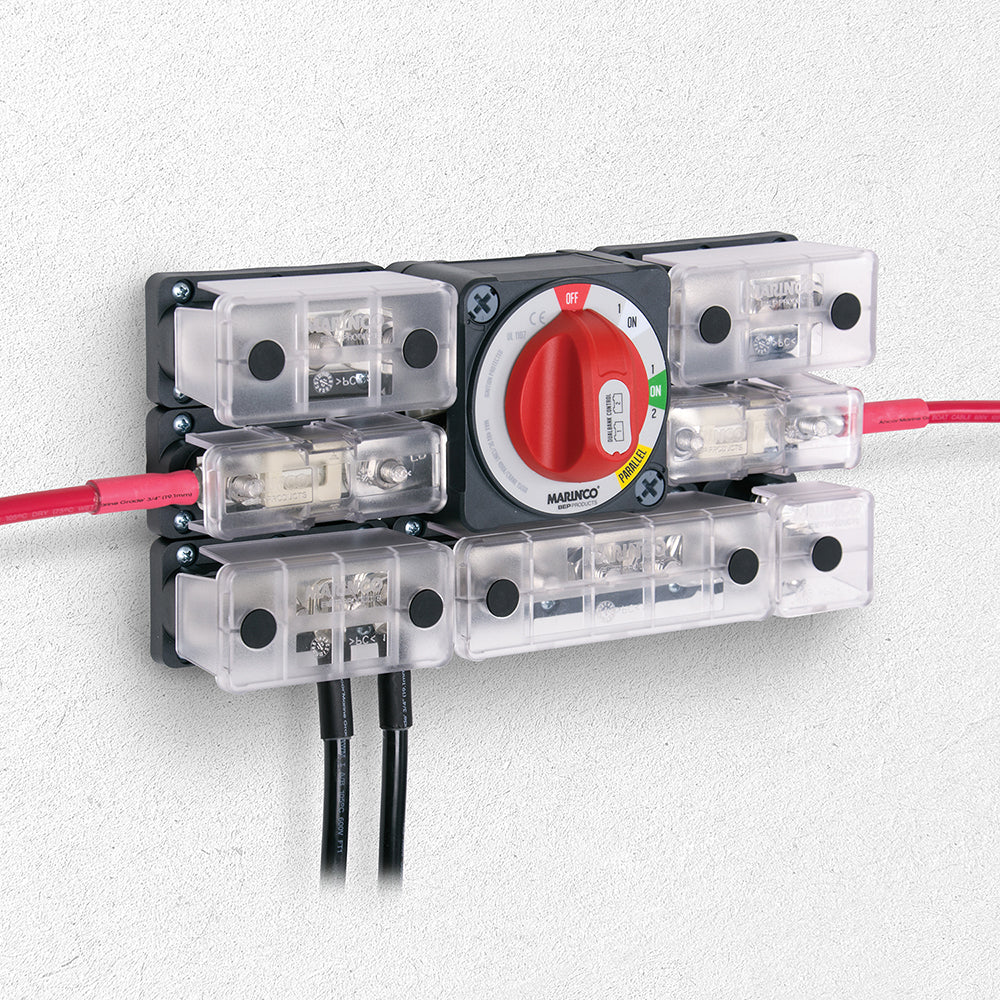

The Pro Installer 400A Dual Bank Control Switch is designed for effortless installation. Its EZ Mount feature allows wiring from the front for the easiest surface mounting, while the shared interconnection height ensures it clusters directly with the Pro Installer Busbar Range. This results in the fastest and most compact installations, with optimized cable access making the setup process a breeze.
Compliance and Safety
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
