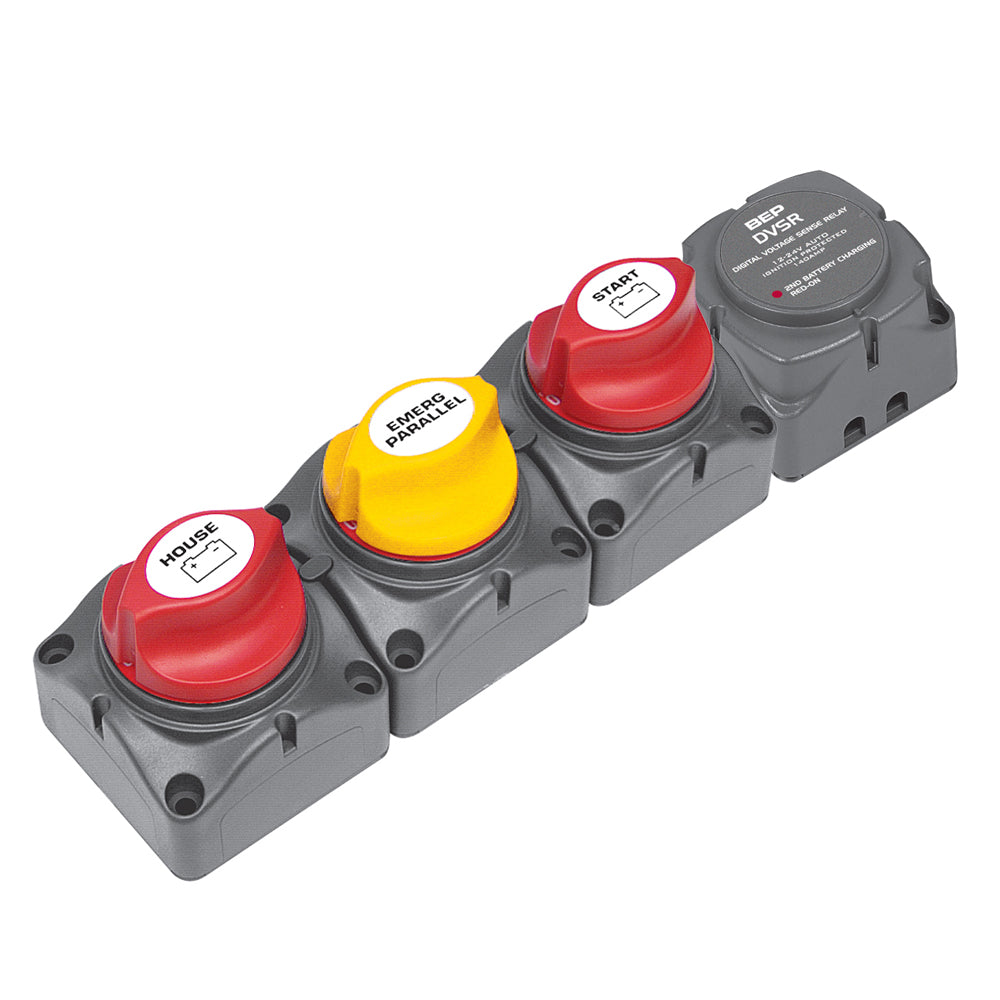

BEP Horizontal Battery Distribution Cluster f/Single Engine w/Two Battery Banks

The Horizontal Battery Distribution Cluster for Single Engine with Two Battery Banks (Model 716-H-140A-DVSR) is the ultimate solution for efficient and automatic battery management in your marine electrical system. Designed specifically for single outboard dual battery setups or single alternator inboard engine dual battery systems, this cluster seamlessly replaces traditional battery selector switches, enhancing reliability and performance without the need for additional wiring.

Key Features

• Automatic Battery Management: Eliminates the need for a manual selector switch by automatically managing battery charging and distribution.
• Dual Battery Banks: Supports two separate battery banks, ensuring power availability for both starting and auxiliary systems.
• High Charging Capacity: Compatible with charging systems up to 150A, making it suitable for a wide range of marine applications.
• Electronics Protection: Shields your marine electronics from harmful engine start spikes, prolonging the lifespan of your equipment.
• Easy Installation: Simplifies the upgrade process by requiring no additional wiring—connect your existing wires directly to the cluster.

Benefits

• Reliable Starting Power: Prevents flat start batteries by ensuring your starting battery is always charged and ready.
• Enhanced Safety: Protects your vessel’s electrical system from potential damage caused by voltage spikes and battery misuse.
• Space-Saving Design: The horizontal layout maximizes space efficiency, ideal for tight engine compartments.
• Durable Construction: Built to withstand the harsh marine environment, ensuring long-lasting performance.

Technical Specifications

Model	716-H-140A-DVSR
Charging Capacity	Up to 150A
Battery Banks Supported	Two
Application	Single Outboard Dual Battery System, Single Alternator Inboard Engine Dual Battery System
Dimensions	[Insert Dimensions Here]
Weight	[Insert Weight Here]

Installation

Installing the 716-H-140A-DVSR Battery Distribution Cluster is straightforward. Follow these steps for a seamless setup:

1. Disconnect the existing battery selector switch from your marine electrical system.
2. Connect the existing wires directly to the 716 cluster terminals as per the wiring diagram provided in the Owner's Manual.
3. Secure the cluster in a suitable location within your engine compartment, ensuring proper ventilation.
4. Verify all connections are tight and free from corrosion.
5. Reconnect the battery and test the system to ensure automatic management is functioning correctly.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
