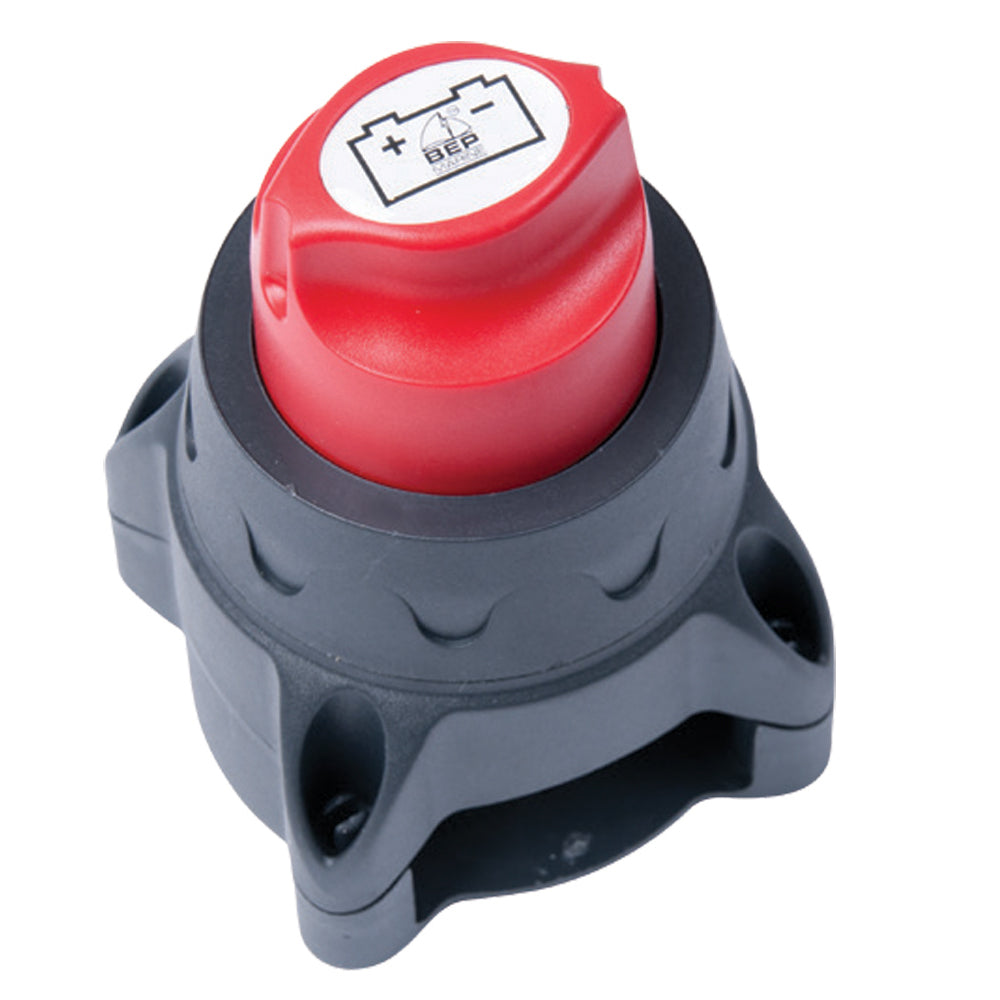

BEP Easy Fit Battery Switch - 275A Continuous

The Easy Fit Battery Switch - 275A Continuous is engineered for marine and boating applications, offering seamless installation through panels of varying thicknesses. Its innovative design ensures reliable performance and flexibility, making it an essential component for your vessel's electrical system.

Product Overview

The Easy Fit Battery Switch is crafted to accommodate recessed installations with ease. Featuring a removable threaded ring, it supports panel thicknesses up to 3/4" (19 mm), allowing for versatile mounting options. Additionally, it can be surface mounted, providing a stylish alternative to standard switches available in the market.

Key Features

• Compatible with most European post and lever-type switches for easy retrofitting
• Constructed from high-temperature, fiber-reinforced plastics for enhanced durability
• Equipped with tin-plated copper studs and nuts to ensure excellent conductivity and corrosion resistance
• Ignition-protected design to meet stringent safety standards
• Removable key extends 45 degrees past the off position for convenient operation
• Clearly labeled handle for intuitive use
• Removable back cover that protects exposed terminals, ensuring compliance with ABYC specifications

Performance Specifications

Test Type	Duration	Objective
Continuous	1 hour	Assess maximum current handling without rear terminals exceeding 100°C (212°F) above ambient temperature
Intermittent	5 minutes	Evaluate switch performance under short-term use
Cranking	10 seconds	Verify reliability during engine starting

All tests are conducted at 110% of the specified ratings to ensure robust performance. The Easy Fit Battery Switch is independently tested by a third-party laboratory, adhering to BEP Marine Battery Switch Test Procedures (UL 1107), guaranteeing top-tier quality and safety.

Installation Flexibility

The Easy Fit Battery Switch's removable threaded ring allows for quick adjustments to panel thickness, simplifying the installation process. Whether you prefer a recessed or surface-mounted setup, this switch adapts to your specific needs, enhancing both functionality and aesthetics on your vessel.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
