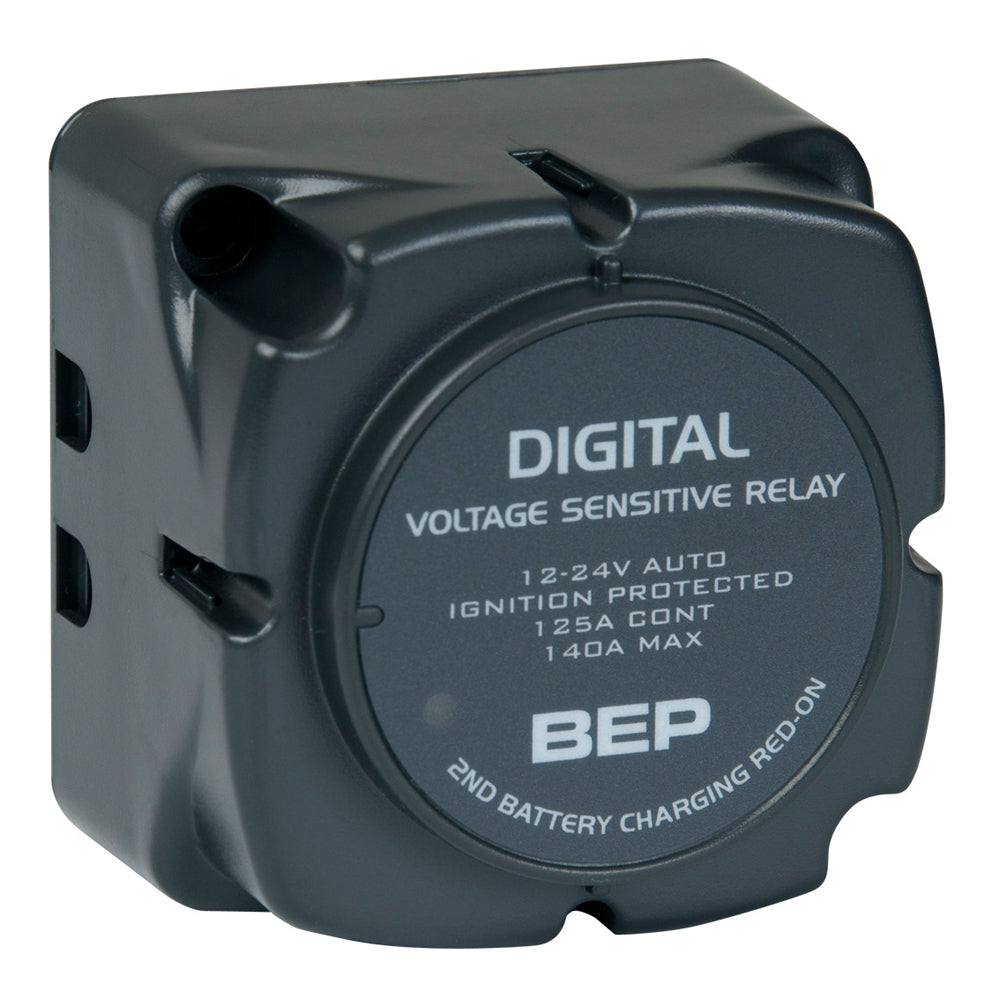

BEP Digital Voltage Sensing Relay DVSR - 12/24V

The Digital Voltage Sensing Relay (DVSR) is an essential component for marine and boating electrical systems, enabling efficient and safe charging of multiple battery banks from a single power source. Whether you're powering your boat's engine start batteries or auxiliary systems, the DVSR ensures optimal battery performance and longevity by intelligently managing the charging process.

Key Benefits

• Dual Battery Management: Seamlessly charge two or more independent battery banks from a single alternator or battery charger.
• Engine Battery Protection: Prioritizes charging of engine start batteries before activating the auxiliary bank, preventing engine battery depletion by domestic loads.
• Enhanced Safety: Isolates electronics from harmful electrical surges generated by starter motors, safeguarding sensitive marine electronics.
• Reliable Performance: Digital circuitry ensures superior reliability and extremely low power consumption, ideal for marine environments.
• Easy Installation: Simple 3-wire connection maintains the integrity of existing alternator wiring, making installation straightforward.
• Versatile Mounting: Can be surface mounted or panel mounted to fit various marine vessel configurations.
• Automatic Voltage Selection: Supports both 12V and 24V DC systems, automatically selecting the appropriate voltage for your setup.
• Remote Monitoring: Optional remote status LED output allows for easy monitoring of the relay's status from a convenient location on your vessel.
• Zero Standby Power: When using the remote sensing circuitry with a storage mode switch, the DVSR draws no standby current, conserving battery life when the engine is off.

Technical Specifications

Voltage	12V / 24V DC (Auto-select)
Current Rating	125A
Power Consumption	Extremely low, optimized for marine use
Mounting	Surface or panel mountable
Connection Type	3-wire
Protection	Ignition protected, surge isolation
Compatibility	Replaces previous models 710-125A and 710-125A-DS

Installation Guide

Installing the DVSR in your marine vessel is straightforward:

1. Identify the primary charging source (alternator or battery charger).
2. Connect the DVSR using the included 3-wire setup, ensuring the alternator wiring remains intact.
3. Mount the relay to a suitable surface or panel within your boat's electrical system.
4. For remote sensing, optionally connect the ignition switch to the DVSR for enhanced functionality.
5. Test the system to ensure both battery banks are charging correctly and that isolation occurs as needed.

Why Choose Our DVSR for Marine Applications?

Designed with the unique demands of marine environments in mind, our Digital Voltage Sensing Relay offers unparalleled reliability and efficiency. Protect your vessel's electrical systems from potential damage caused by electrical surges and ensure that your engine and auxiliary batteries remain charged and ready for use. The DVSR's advanced digital circuitry not only enhances performance but also minimizes power consumption, making it an ideal choice for boaters seeking dependable power management solutions.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Download the Owner's Manual (PDF)
