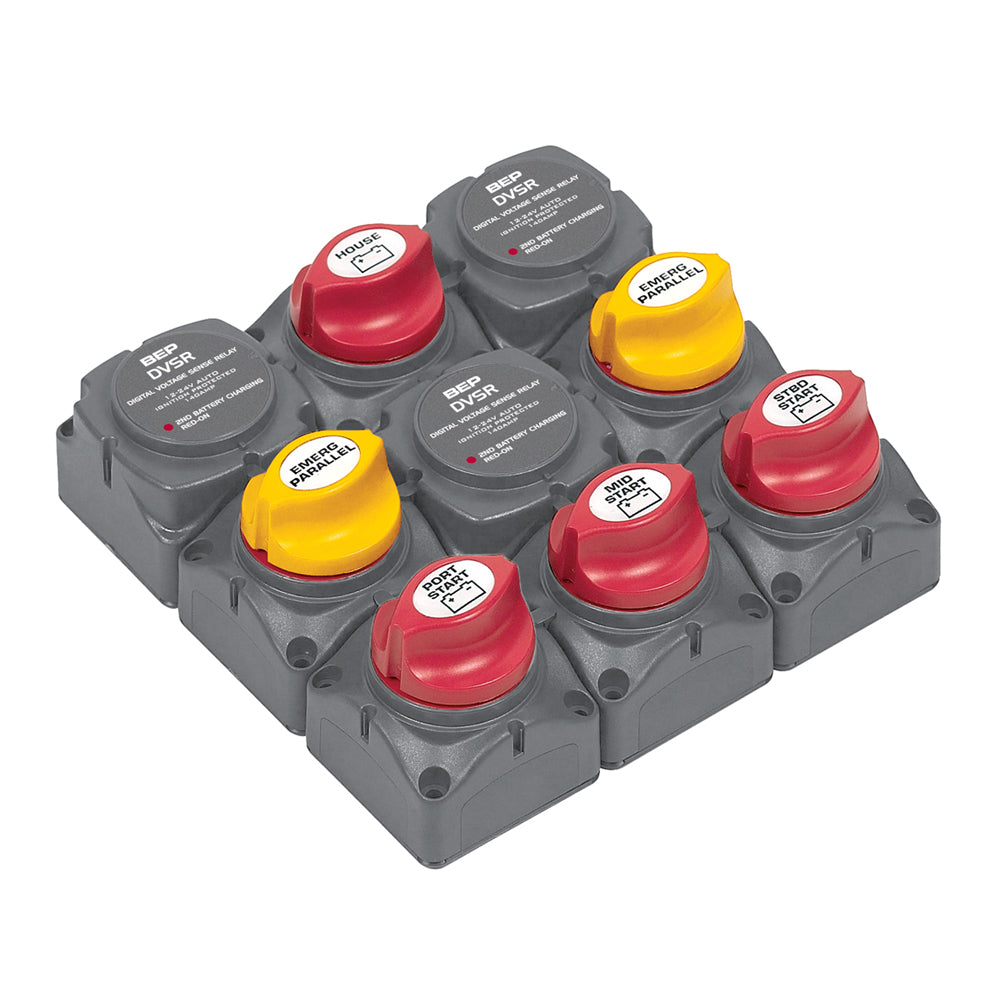

BEP Battery Distribution Cluster f/Triple Outboard Engine w/Four Battery Banks

The 719-140A-DVSR Battery Distribution Cluster is engineered for marine enthusiasts and professionals who require robust and efficient power management for triple outboard engine configurations. This advanced cluster facilitates the seamless distribution and optimization of power across four distinct battery banks, ensuring reliable performance and extended battery life for your vessel.

Key Features

• Triple Outboard Compatibility: Specifically designed to support installations with three outboard engines, providing balanced power management.
• Four Battery Banks: Accommodates four separate battery banks, allowing for customized power distribution tailored to your marine setup.
• Multiple Voltage Sensitive Relays (VSRs): Employs multiple VSRs connected to each start battery, ensuring efficient power transfer and isolation between systems.
• Combined Charging System: Aggregates charge from all three outboards into the house battery through VSRs, optimizing battery performance and longevity.
• Durable Marine-Grade Construction: Built to withstand harsh marine environments, offering reliable performance even in challenging conditions.
• Easy Installation: Designed for straightforward integration into existing marine electrical systems, minimizing downtime and installation complexity.

Technical Specifications

Model Number	719-140A-DVSR
Designed For	Triple outboard engine installations
Battery Banks Supported	Four
Voltage Sensitive Relays (VSRs)	Multiple per start battery
Charging Configuration	Combined charge from all 3 outboards into the house battery via VSRs

Benefits

• Enhanced Power Management: Efficiently manages and distributes power from multiple sources, ensuring optimal performance of your marine electrical system.
• Extended Battery Life: Prevents battery overcharging and deep discharging, thereby prolonging the lifespan of your battery banks.
• Reliable Performance: Ensures consistent power supply to critical systems, reducing the risk of power-related issues during voyages.
• Scalability: Easily expandable to accommodate additional power sources or battery banks as your marine needs grow.

Installation Guide

Installing the 719-140A-DVSR Battery Distribution Cluster is straightforward and can be accomplished with basic marine electrical knowledge. Follow these general steps:

1. Disconnect the vessel's power supply to ensure safety during installation.
2. Mount the Battery Distribution Cluster in a secure, dry location within the vessel's electrical compartment.
3. Connect each outboard engine's charging system to the respective VSRs on the cluster.
4. Attach the house battery to the designated output on the cluster, ensuring proper polarity and secure connections.
5. Double-check all connections for integrity and compliance with marine electrical standards.
6. Reconnect the power supply and test the system to verify proper operation.

For detailed installation instructions, refer to the Owner's Manual (PDF).

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Support and Resources

• Owner's Manual (PDF)
• Contact our Customer Support for assistance.
• Visit our FAQ page for common questions and troubleshooting tips.
