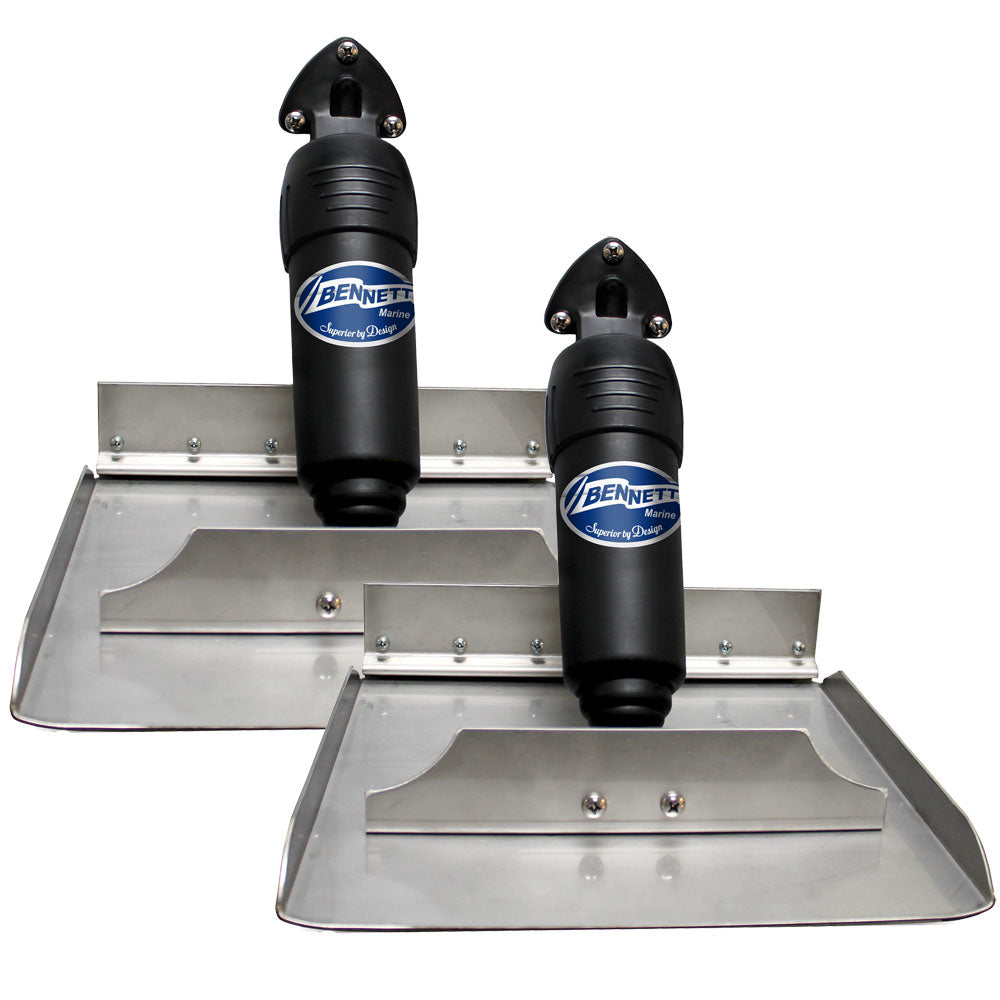

Bennett BOLT 12x9 Electric Trim Tab System - Control Switch Required

Enhance the performance and handling of your 17-28 foot trailered boat with the BOLT 12x9 Electric Trim Tab System. Engineered by Bennett Marine, this advanced trim tab solution offers superior durability, reliability, and cutting-edge technology to ensure a smooth and efficient boating experience.

Overview

Since its invention in 1960, Bennett Marine has been at the forefront of electric trim tab technology. The BOLT Electric Trim Tab System is designed to outperform and outlast any other electric system on the market. Utilizing "Superior by Design" technology, it effectively addresses common issues such as water intrusion and marine growth, ensuring long-term performance and reliability.

Why Choose Electric Trim Tabs

While hydraulic trim tabs are recommended for most applications, electric trim tab systems like the BOLT are ideal for specific scenarios:

• Trailered boats ranging from 17-28 feet
• Single actuator applications, as synchronizing two electric actuators on the same tab is not feasible

Key Features

• Concealed Wiring: Wires are protected and hidden through the upper hinge, eliminating exposure to the marine environment.
• Water-Tight Actuator: The robust black nylon actuator ensures trouble-free operation even in harsh conditions.
• High-Location Main Seal: Positioned high to prevent marine growth and water intrusion failures.
• Quiet Operation: Quieter than any competing systems, ensuring a peaceful boating experience without scaring away the fish.
• Easy Installation: Fast installation process with no need to disassemble parts of the actuator.
• Control Switch: Control switch sold separately for customizable operation.

Specifications

Construction	Stainless Steel
Actuator Type	Electro-Mechanical
Box Dimensions	5"H x 15"W x 25"L
Weight	20.1 lbs
UPC	666285600016

Installation Instructions

Installing the BOLT Electric Trim Tab System is straightforward and efficient. The actuator design eliminates the need to disassemble any parts, allowing for a quick and hassle-free setup.

For detailed installation steps, refer to the Owner's Manual (PDF).
