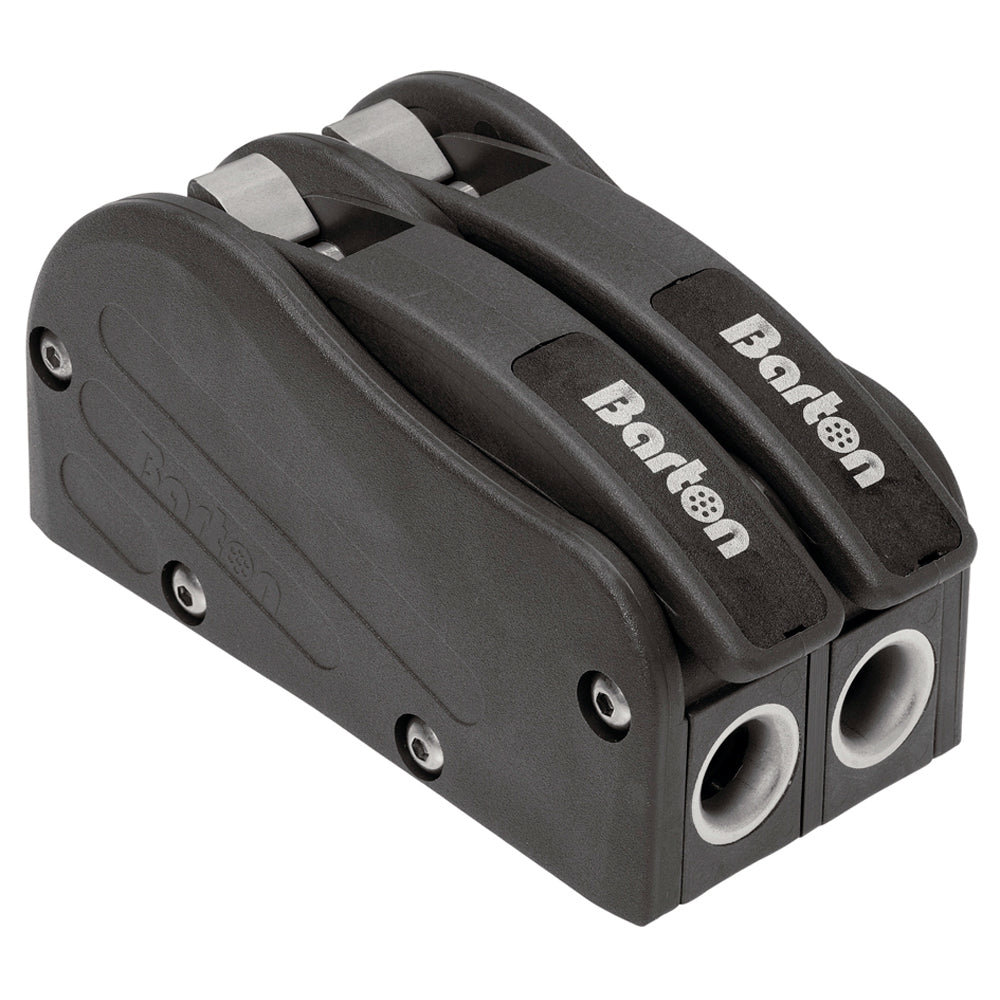

Barton Marine DO 550 Rope Clutch - Double

The DO 550 Rope Clutch - Double by Barton is engineered for both cruising and racing yachts, utilizing advanced lightweight materials to endure the demanding marine environment. Its robust construction ensures longevity and reliable performance, making it an essential component for any serious sailor.

Product Overview

The Barton DO 550 clutch is crafted from high-grade plastics and marine-grade 'Spectro' anodized aluminum, ensuring strength, lightness, and impact resistance. The stainless steel rope fairleads protect both the clutch and lines from wear, while the true clutch mechanism allows for precise line adjustments with minimal slippage. Operating the clutch is effortless, even in cold and wet conditions, providing a dependable solution for yacht management.

A standout feature of the DO 550 is its removable insert on the handle's top face. This allows for easy customization with colored inserts, enabling quick identification of the clutch's function, such as main, genoa, or spinnaker. Additionally, the bolt-together construction facilitates easy servicing and part replacement, enhancing the clutch's maintenance-friendly design.

Key Features

• Constructed from modern high-performance materials
• True clutch mechanism for precise line control
• Stainless steel rope fairleads protect lines and clutch
• Easy maintenance with bolt-together construction
• Ergonomically designed for user-friendly operation

Technical Specifications

Dimension (L x W x H)	5 ¼” x 2 ½” x 2 ½” (13.3 x 6.3 x 6.3 cm)
Hole Centres	3 1/8” (79mm)
Maximum Rope Capacity	0.47” (1.2 cm)
Maximum Holding Power	1,212 Lb (550 kg)
Weight	1.2 lb (544 g)

Sold as an individual unit

Additional Specifications

• Color: Black
• Box Dimensions: 3"H x 3"W x 6"L
• Weight: 1.2 lbs
• UPC: 5035088815012

Resources

• Quick Guide (PDF)
• Brochure (PDF)

Product Video
