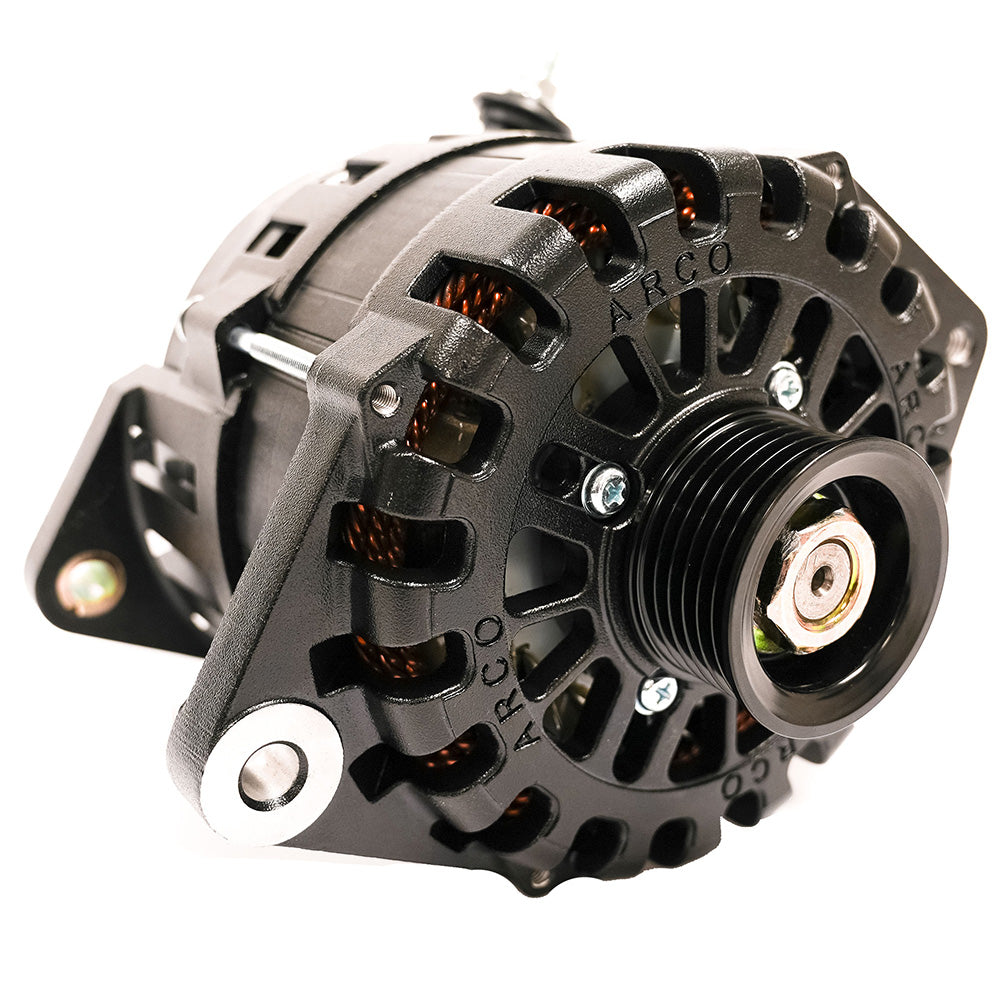

ARCO Marine Zeus A275L 1"-2" Single Foot Alternator w/Terminal Block
ARCO Marine Zeus A275L 1"-2" Single Foot Alternator w/Terminal Block is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Zeus A275L 1"-2" Single Foot Alternator is the ultimate power solution for marine and boating applications. Designed to deliver exceptional energy output and operate efficiently in demanding environments, this alternator ensures your vessel's electrical systems perform reliably under all conditions.
Key Features
- High Energy Production: Engineered to deliver the highest power output in its class, ensuring ample energy for all your marine needs.
- Versatile Applications: Perfect for marine, RV, military, and commercial use, adapting seamlessly to various power requirements.
- Fast Battery Charging: Rapidly charges large battery banks, keeping your onboard systems powered and ready.
- Superior Cooling: Operates 8-20% cooler than standard alternators thanks to advanced heat-shedding coatings, an external rectifier, dual cooling fans, and OEM-grade components.
- Optimized for Idle: Maintains high performance even at idle speeds, ideal for vessels that spend extended periods at low RPMs.
- Generator Alternative: Reduces reliance on generators by generating additional power directly from your engine.
- Durable Coating: Features E-Coat/Cerakote finishes that absorb less heat, allowing for sustained amperage and longer operational life.
- Advanced Regulation: Compatible with ARCO Zeus Bluetooth alternator regulators and lithium battery charging systems for maximum efficiency.
- Certified Quality: SAE J1171 Certified, meeting strict industry standards for reliability and performance.
- Made in the USA: Proudly manufactured in the United States, ensuring top-tier quality and support.
Technical Specifications
Parameter | Details |
---|---|
Voltage | 12V |
Field Type | P |
Rotor Poles | 16 |
Stator Size | 138mm |
Frame Size | Large |
Weight | 14.9 lbs / 6.7 kg |
Regulation | External Only (Includes terminal block and P-Type harness. Requires external regulator such as ARCO Zeus Bluetooth alternator regulator.) |
Output Voltage | 14.1V (Default) |
Finish | Black Cerakote or E-coating |
Cut-In RPM | 1,061 Alternator RPM |
Maximum Alternator RPM | 19,000 |
Battery Post | M8 Thread Post, Side Mount |
Standard Pulley | 49K6 (6-groove, 49mm) |
Pulley Mount | 17mm diameter shaft, 25mm long, threaded M17 x 1.5 |
Pulley Hardware | M17 x 1.5 x 24mm nut, with 18mm ID x 29mm OD washer (Included) |
Diodes | 6 positive, 6 negative, 50A Rated, Avalanche |
Max Output (Cold, 9,000 RPM) | 311 Amps |
Sustained Cruising Output (Hot, 6,000 RPM) | 227 Amps |
Sustained Idle Output (Hot, 3,000 RPM) | 198 Amps |
Max Continuous Operating Temperature | 110°C / 230°F |
Mounting Compatibility
- Designed to replace most domestic alternators with a single 1” or 2” mounting foot, including brands like Motorola and Prestolite.
