ARCO Marine  |  SKU: LOS-107331  |  Barcode: 695845653315

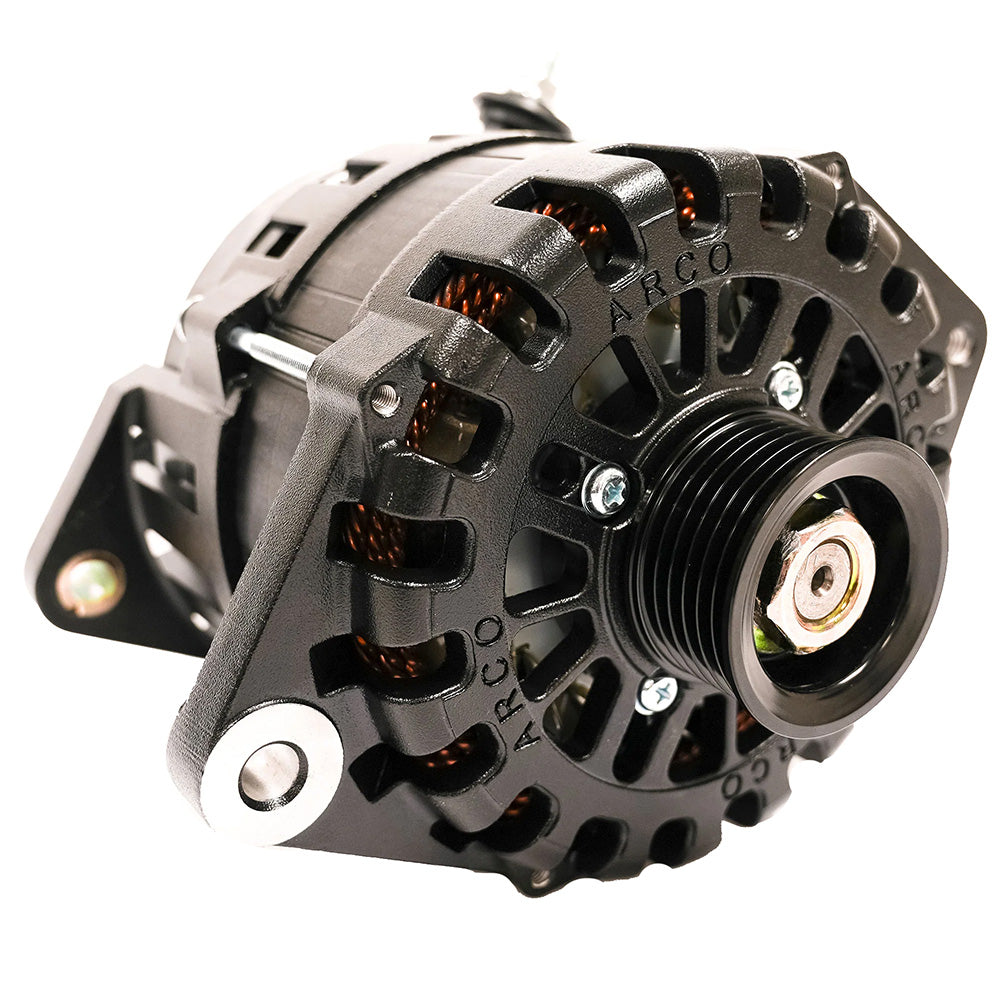

ARCO Marine Zeus A225S J-180 3.15" Alternator w/Terminal Block

$767.80 USD $874.50

Product Description

The Zeus A225S J-180 3.15" Alternator with Terminal Block is the ultimate power solution for marine enthusiasts, delivering unparalleled energy output and reliability tailored for boating applications.

Key Features

  • Engineered for high energy production, ensuring ample power for all your marine needs.
  • Ideal for marine, RV, military, and commercial applications.
  • Rapidly charges large battery banks, minimizing downtime.
  • Operates at cooler temperatures, running 8-20% cooler than standard alternators through:
    • Heat-shedding coatings
    • External rectifier
    • Dual cooling fans
  • Equipped with OEM components for durability and longevity.
  • Optimized performance at idle speeds, perfect for marine engines.
  • Reduces the necessity for generators by providing additional power directly from your engine.
  • Enhanced with E-Coat/Cerakote coating, absorbing less heat for sustained amperage.
  • Compatible with ARCO Zeus Bluetooth alternator regulator for maximum performance and lithium battery charging.
  • SAE J1171 Certified for quality assurance.
  • Proudly manufactured in the USA.

Technical Specifications

Specification Details
Voltage 12V
Field Type P
Rotor Poles 16
Stator Size 130mm
Frame Size Small
Weight 12lbs / 6.7kg
Regulation External Only
Output Voltage 14.1V (default)
Finish Black Cerakote or E-coating
Cut-In RPM 1,061 Alternator RPM
Maximum Alt RPM 19,000
Battery Post M8 Thread Post, Side Mount
Standard Pulley 49K6 (6-groove, 49mm)
Pulley Mount 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware M17 x 1.5 x 24mm nut, with 18mm ID x 29mm OD washer (Included)
Diodes 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) 254 Amps
Sustained Cruising Output (Hot, 6,000 RPM) 187 Amps
Sustained Idle Output (Hot, 3,000 RPM) 157 Amps

Mounting Applications

  • Compatible with most small case styles using a 3.15” J180 saddle-style mount, including popular models like Hitachi, Lucas, Mitsubishi, and most Yanmars.
