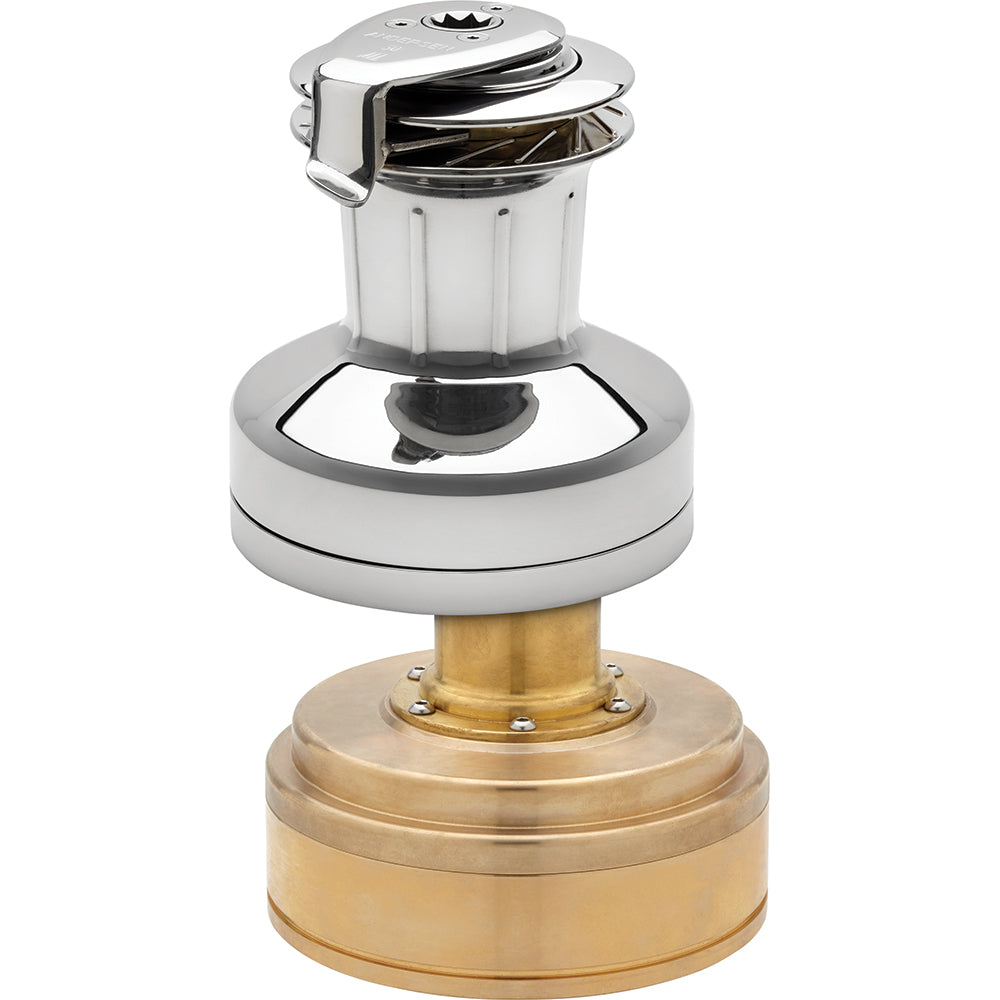

ANDERSEN 50ST Compact Below Deck Electric FS Winch Variable Speed - 12V

Enhance your boating experience with the 50ST Compact Below Deck Electric Full Stainless Winch Variable Speed - 12V. Engineered for reliability and ease of use, this stainless steel electric winch allows effortless sail trimming and line control with just a push of a button, ensuring smooth and safe operation for every crew member on board.

Features and Benefits

Easy Installation

The Andersen Compact Motor™ electric winch is designed for straightforward installation above or below deck. The motor, gearbox, and controller are integrated into a single compact unit, eliminating the need for an additional control box. Simply connect the positive and negative power cables to the motor terminals and attach the push button using the included output cable for a hassle-free setup.

Variable Speed Performance

Powered by a brushless DC motor paired with a low-profile planetary gearbox, the Compact Motor™ offers efficient performance and requires minimal installation space. Available in both 12V and 24V models, these electric winches operate at variable speeds proportional to the pressure applied on the push button, ensuring smooth and quiet operation tailored to your needs.

Intelligent Push Button

The winch comes with an illuminated push button featuring an integrated LED that activates when the winch system is powered. The button includes a hinged safety cover to prevent accidental activation and is rated IP67 for water resistance. Additionally, it interacts with the controller to display status codes, aiding in troubleshooting during overload conditions or other protective system interventions. A convenient cable for connecting the push button is included.

Built-in Protection

• Overload Protection: The controller automatically stops the winch if the maximum pull load is exceeded and resumes operation once the load is back within limits.
• Thermal Overload Protection: A thermal cutout disables the motor in case of overheating and automatically resets once the temperature returns to normal.

Durable Construction

Featuring the exclusive stainless steel Power Rib™ drum, the Compact Motor™ Electric Winch ensures maximum power and extended line life. It also includes a self-tailing device that accommodates a wide range of line sizes, enhancing versatility and ease of use on the water.

Specifications

Specification	Details
Drum Diameter	3-1/2 in. (89 mm)
Base	7-1/16 in. (180 mm)
Height	7-15/16 in. (202 mm)
Line Entry	3-9/16 in. (90 mm)
Line Size Capacity	5/16-9/16 in. (8-14 mm)
Weight	46.3 lbs. (21 kg)
Maximum Deck Thickness	2-7/16 in. (62 mm)
Motor Depth	7-3/8 in. (188 mm)
Total Motor Dimensions	7-11/16 in. (195 mm)

Download the Quick Guide (PDF)
