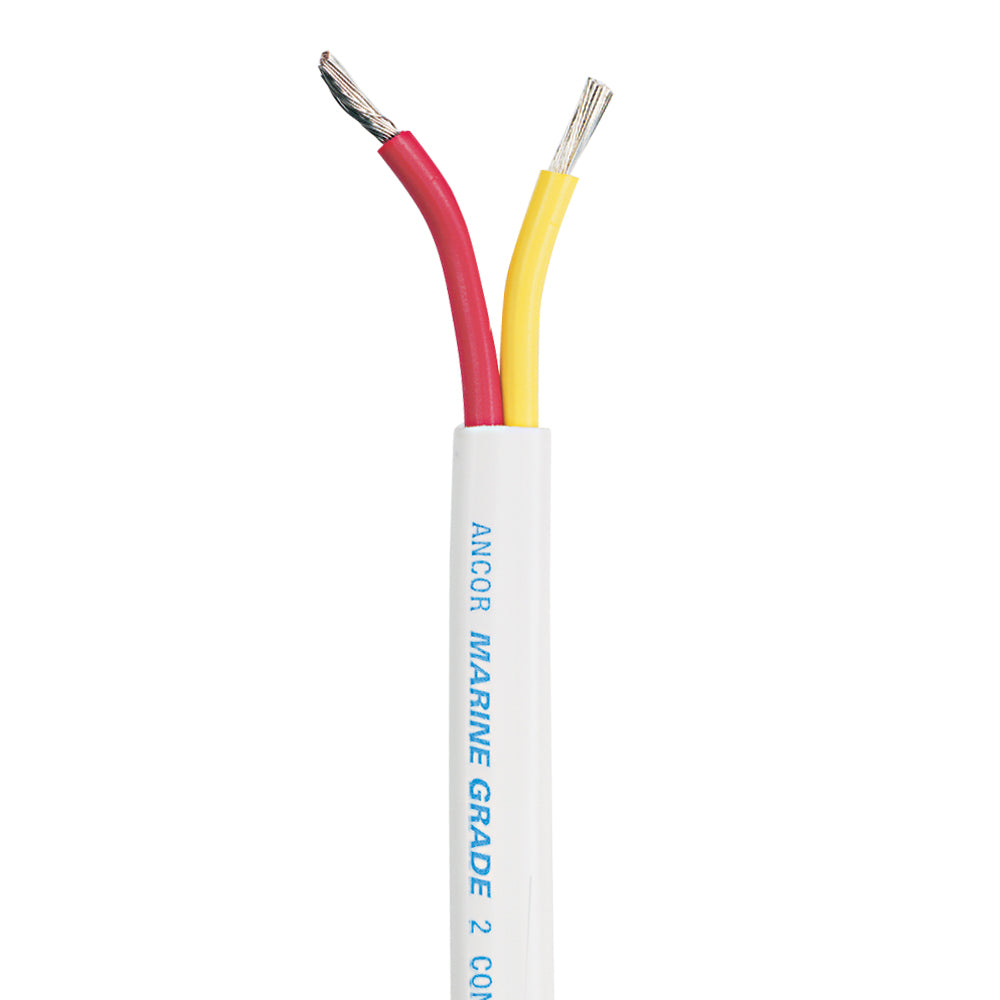

Ancor Safety Duplex Cable - 12/2 - 100'

Enhance your marine electrical systems with our Safety Duplex Cable - 12/2 - 100', engineered to provide superior performance and durability on the water. Whether you're outfitting a new vessel or upgrading existing wiring, this cable offers unmatched reliability in marine environments.

Features

• Exceptional Durability: ANCOR Duplex Cable exceeds the highest UL Boat Cable standards with ultra-flexible (Type 3/Class K) stranding, effectively resisting fatigue from constant vibration and flexing.
• Superior Abrasion Resistance: The outer jacket is designed for easy removal and provides the best abrasion resistance available, ensuring long-lasting protection against harsh marine conditions.
• Premium Insulation: ANCOR's proprietary premium vinyl insulation remains flexible even in extreme cold. It resists salt water, battery acid, oil, gasoline, and ultraviolet radiation, ensuring consistent performance. The exclusive insulation is rated at 600 volts, 105°C dry, and 75°C wet, providing excellent resistance to heat and abrasion.
• Color-Coded Conductors: The inner conductors are correctly color-coded to ABYC standards, facilitating easy and accurate installation.
• Marine Grade Conductors: Features red and yellow Marine Grade™ primary conductors housed in a white common jacket, ensuring clear identification and reliability in marine electrical systems.

Specifications

Attribute	Details
Color	Red/Yellow
Length	100 feet
Gauge	12/2 AWG
Box Dimensions	5"H x 7"W x 7"L
Weight	7.9 lbs
UPC	091887805918

Compliance & Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
