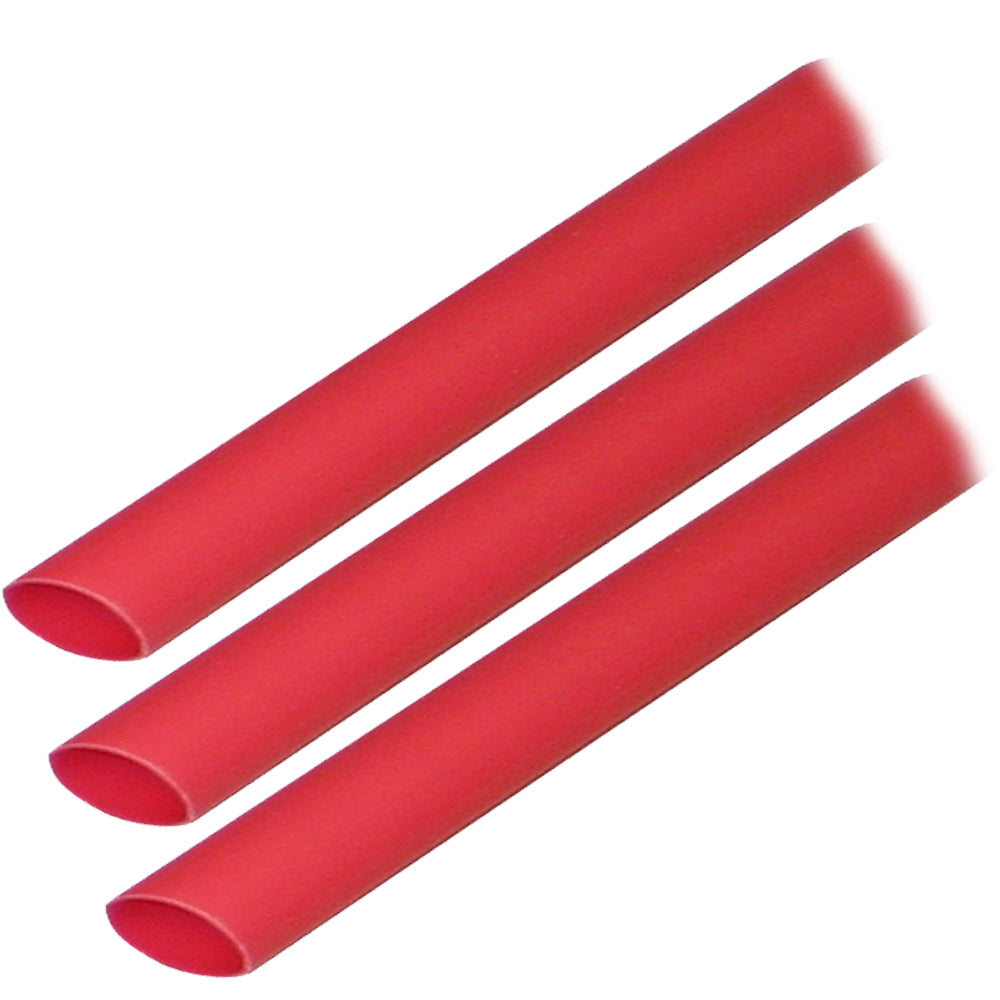

Ancor Heat Shrink Tubing 3/16" x 3" - Red - 3 Pieces

Ensure durable and reliable connections in your marine projects with our Heat Shrink Tubing 3/16" x 3" - Red, available in a pack of 3. Designed specifically for the demanding conditions of marine environments, this tubing provides superior protection against the elements.

Features

• Superior Material: Crafted from cross-linked polyolefin, our tubing is significantly stronger than PVC alternatives and offers enhanced fire resistance.
• Leak-Proof Seal: The heat-activated adhesive lining ensures an impervious barrier against saltwater, oil, acids, and sunlight, while also providing effective strain relief.
• High Shrink Ratio: Shrinks down to one-third of its original size, ensuring a tight and secure fit.
• Shrink Temperature: Activates at 257°F (125°C) for efficient application.
• Temperature Range: Operates reliably from -40°F to 230°F (-40°C to 110°C), making it suitable for various marine climates.
• UL Certified: Complies with UL 224 standards for safety and performance.
• Wire Compatibility: Suitable for 20-12 AWG wires, ideal for marine electrical systems.

Installation Instructions

1. Select a heat source that can reach and maintain 257°F (125°C), such as a heat gun rated for the appropriate flame temperatures.
2. Slide the heat shrink tubing over the wire or connection you intend to protect.
3. Gradually apply heat evenly along the tubing to prevent uneven shrinking or burning.
4. Move the heat source continuously along the tubing’s length to ensure a consistent and secure installation.
5. Allow the tubing to cool and form a solid, protective barrier around the connection.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Specifications

Type	Heat Shrink
Dimensions	3/16" x 3" - Red (3 Pieces)
Box Dimensions	1"H x 2"W x 4"L
Weight	0.01 lbs
UPC	091887990508
