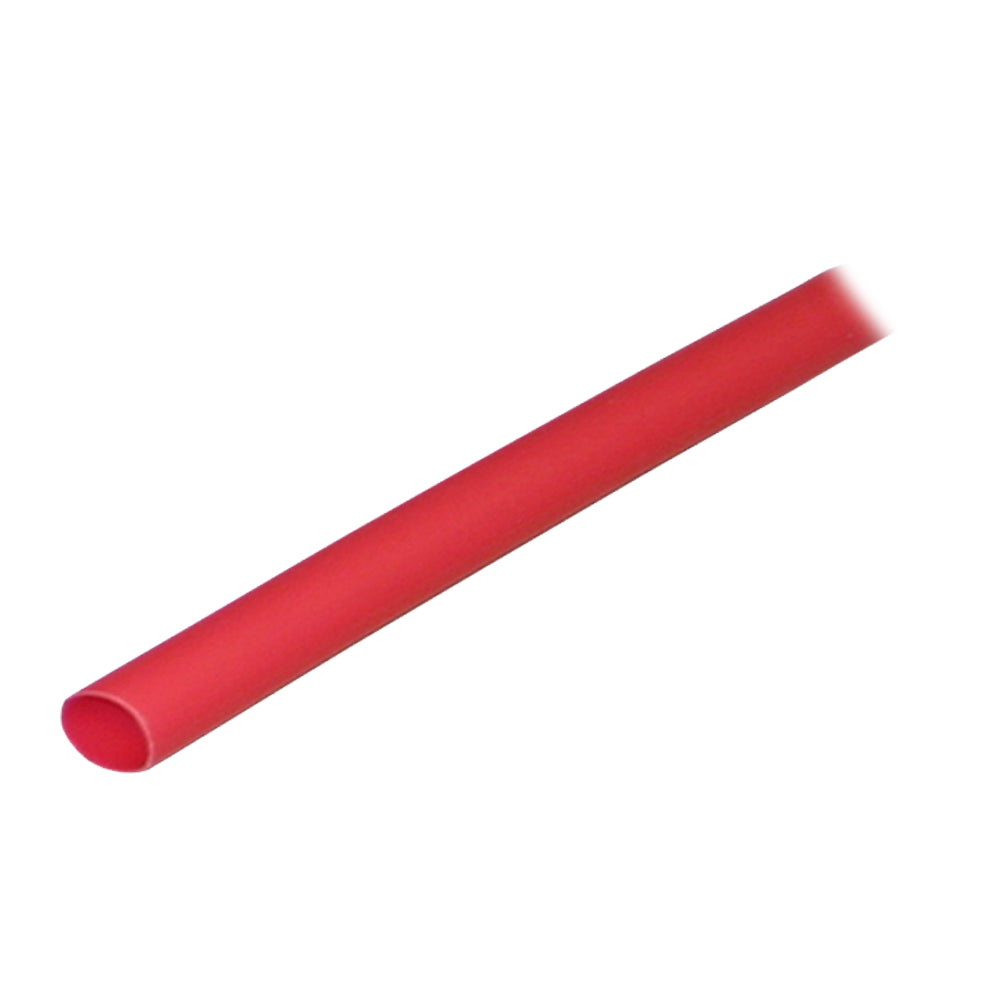

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 48" - 1-Pack - Red

Ensure your boat's electrical systems are protected and reliable with our Adhesive Lined Heat Shrink Tubing. Specially designed for marine and boating applications, this high-performance tubing offers exceptional resistance to water, salt, and harsh environmental conditions, safeguarding your wiring connections against corrosion and damage.

Product Features

• Marine-Grade Durability: Constructed from cross-linked polyolefin, this tubing provides superior strength and resilience compared to standard PVC options, making it ideal for the demanding conditions of marine environments.
• Heat-Activated Adhesive: The adhesive lining melts upon heating, creating a watertight and UV-resistant seal that protects against saltwater, oil, acids, and sunlight, while also offering strain relief to prevent wire breakage.
• Exceptional Shrink Ratio: Shrinks to one-third of its original diameter (from 1/4" to 5/64"), ensuring a tight and secure fit around various wire sizes, enhancing connection stability.
• High Shrink Temperature: Activates at 257°F (125°C), providing a reliable and lasting bond even in high-temperature conditions commonly found in marine settings.
• Wide Operating Range: Functions effectively in temperatures ranging from -40°C to 110°C, making it suitable for diverse marine climates and extreme weather conditions.
• Certified Safety: UL 224 certified, meeting rigorous industry standards for electrical insulation and safety.

Technical Specifications

Dimension	1/4" (6.4mm) diameter x 48" (122cm) length
Shrink Diameter	5/64" (2mm)
Wire Gauge Range	16-10 AWG
Shrink Temperature	257°F (125°C)
Operating Temperature	-40°C to 110°C
Package	1 Pack
Color	Red
Certification	UL 224
Box Dimensions	1"H x 1"W x 48"L
Weight	0.1 lbs
UPC	091887973921

Why Choose Our Heat Shrink Tubing for Your Marine Needs?

In the unpredictable marine environment, reliability and protection are paramount. Our Adhesive Lined Heat Shrink Tubing is engineered to withstand the rigors of saltwater exposure, UV radiation, and temperature fluctuations, ensuring your boat's electrical connections remain secure and corrosion-free. Whether you're a professional boat builder or a boating enthusiast, this tubing offers the performance and durability you need to maintain safe and efficient electrical systems.

Installation Instructions

1. Slide the heat shrink tubing over the area of the wire you wish to protect, ensuring there is enough overlap on both sides of the connection.
2. Using a heat gun or appropriate heat source, apply even heat around the tubing area.
3. Continue heating until the tubing has shrunk tightly around the wires and the adhesive lining has fully activated, forming a secure and waterproof seal.
4. Allow the tubing to cool and set before handling the wires further.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
