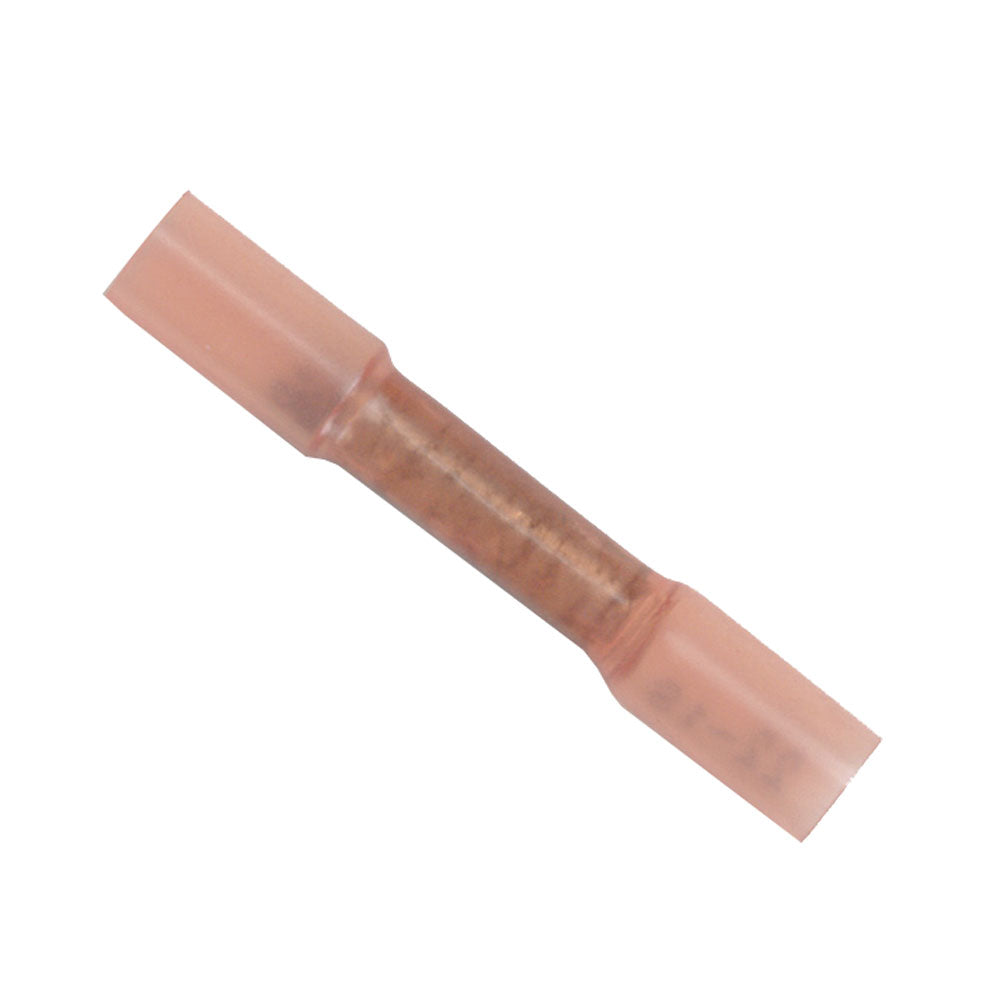

Ancor 22-18 Heatshrink Butt Connectors - 25-Pack

These 22-18 Heatshrink Butt Connectors are essential for marine and boating electrical applications, providing a durable and reliable connection for your vessel's wiring needs.

Product Features

• Gauge Size: 22-18 AWG
• Cross-linked polyolefin tubing offers superior strength compared to PVC, and it is non-flammable.
• Heat-activated adhesive lining ensures a watertight seal resistant to salt water, oil, acids, and sunlight, while providing strain relief.
• Nylon insulator delivers marine-grade resistance against sunlight, water, oil, chemicals, vibration, and potential cut-through damage.
• UL Listed and CSA Recognized for safety and compliance.
• Highest shrink ratio, reducing to one-third of the original size for a compact and secure connection.
• Shrinks at 257°F (125°C), suitable for various marine environments.
• Operating temperature range: 40°C to 110°C, ideal for marine applications.
• ANCOR heat shrink connectors feature heat-activated adhesive built into the sleeve, enabling easy and reliable installation.
• Forms a water-tight seal with excellent vibration and strain relief, critical for marine conditions.
• Tinned for enhanced corrosion resistance, essential for saltwater environments.
• Constructed with pure copper for maximum current flow and efficiency.
• Brazed seam ensures maximum strength and durability.
• Wire range: 22-18 AWG.
• Diameter range: 0.3 - 0.8 mm.

Specifications

Gauge	22-18 AWG
Heat Shrink	Yes
Type	Butt Connectors
Package Quantity	25
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887303421

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
