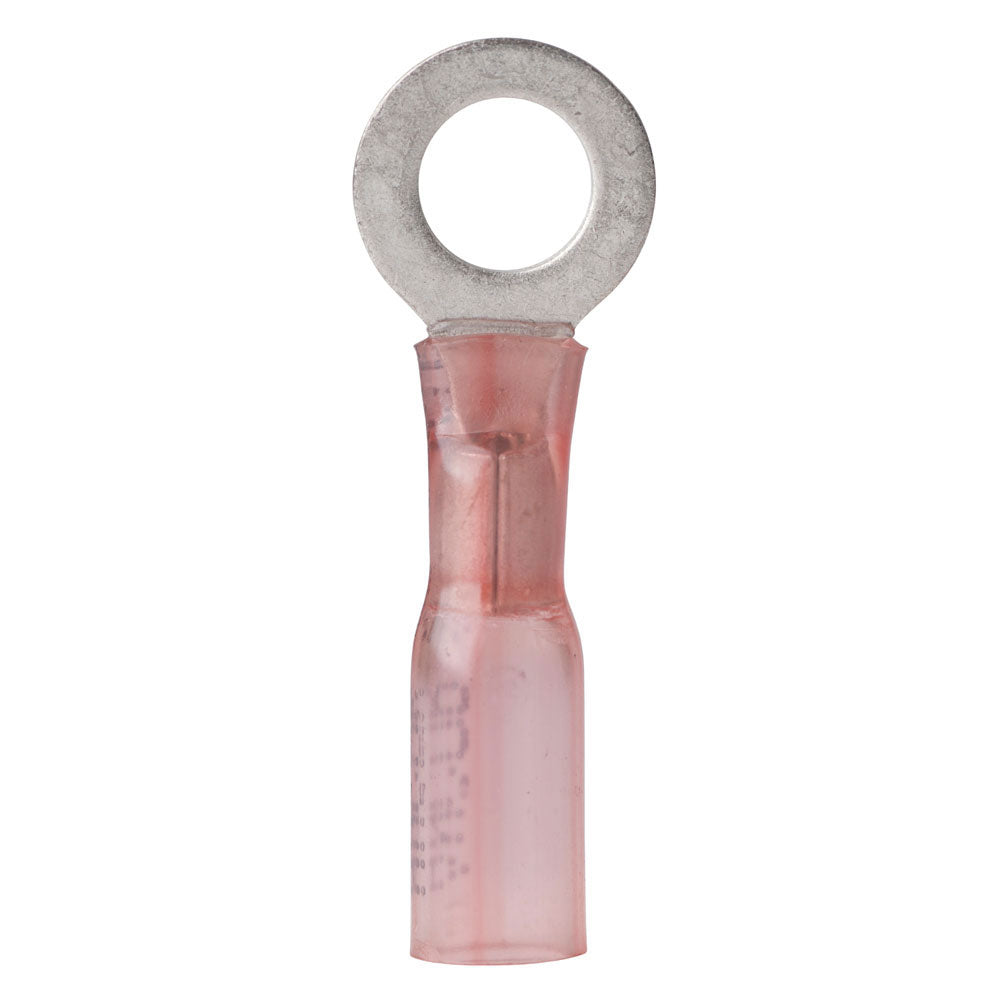

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Enhance the reliability and durability of your marine electrical connections with our 22-18 Gauge #8 Heat Shrink Ring Terminals. Specifically engineered for the harsh conditions of marine and boating environments, these ring terminals ensure secure, corrosion-resistant connections that maintain optimal performance for your vessel’s electrical systems.

Key Features

• Superior Durability: Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC tubing and resist burning, ensuring long-lasting performance in demanding environments.
• Exceptional Protection: The heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, providing robust strain relief and safeguarding your connections from environmental hazards.
• Marine-Grade Insulation: Featuring a nylon insulator preferred by industry experts, these terminals offer outstanding resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making them ideal for marine applications.
• High Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), ensuring a tight and secure fit around your connections.
• Wide Operating Range: Capable of withstanding temperatures from 40°C to 110°C, these terminals perform reliably across various conditions.
• Corrosion Resistant: Tinned pure copper wires provide maximum current flow and resist corrosion, essential for marine environments.
• Robust Construction: Brazed seams offer maximum strength, enhancing the overall durability of the terminals.
• UL Listed and CSA Recognized: Ensures compliance with industry safety standards for peace of mind.

Technical Specifications

Gauge Size	22-18 AWG
Screw Size	#8
Quantity	3-Pack
Heat Shrink	Yes
Heat Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Wire Range	22-18 AWG (0.3-0.8 mm)
Box Dimensions	1" H x 1" W x 1" L
Weight	0.1 lbs
UPC	091887316261

Compliance and Safety

• UL Listed
• CSA Recognized

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
