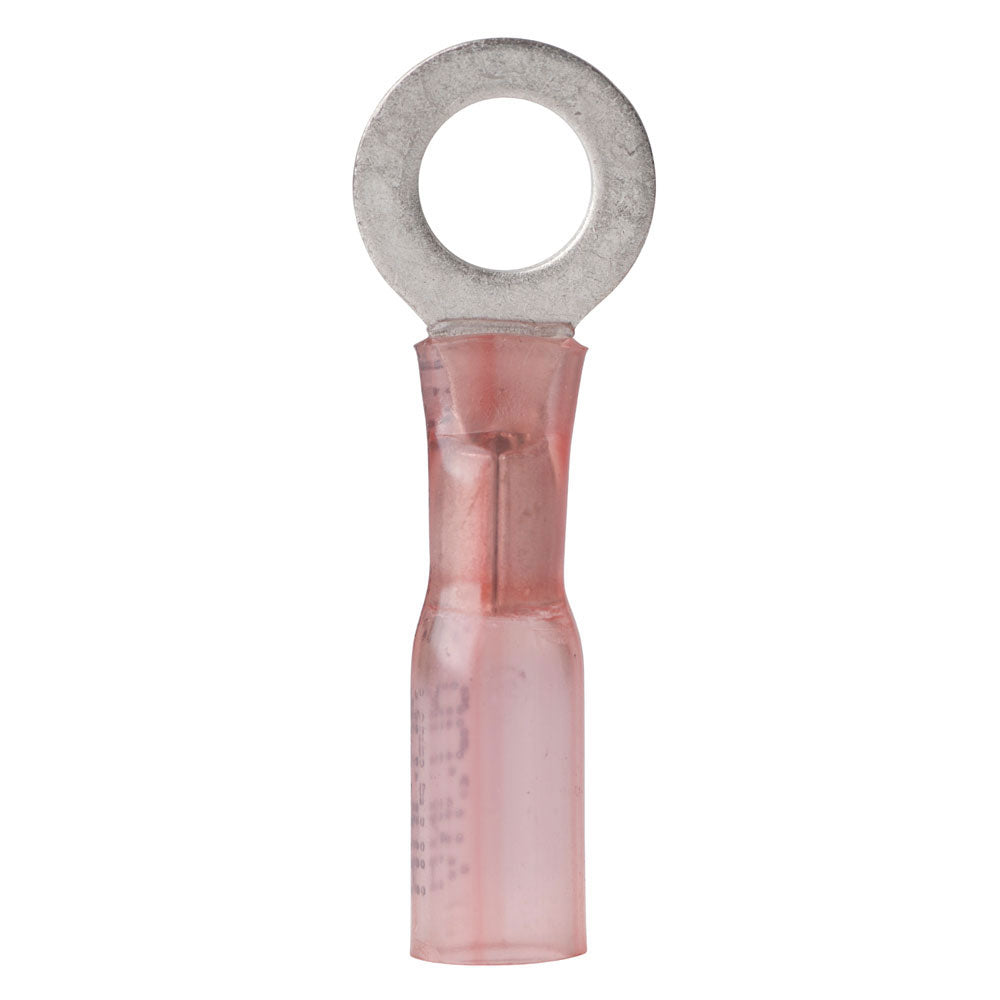

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

Enhance the reliability and safety of your marine electrical projects with our high-performance #8 Heat Shrink Ring Terminals. Designed specifically for the demanding conditions of boating and marine environments, these terminals provide a secure, water-tight connection that resists corrosion, vibration, and extreme temperatures.

Product Features

• Durable Tubing: Features cross-linked polyolefin tubing, significantly stronger than PVC and resistant to burning.
• Superior Sealing: Heat-activated adhesive lining ensures an impervious seal against salt water, oil, acids, and sunlight, while providing excellent strain relief.
• Marine-Grade Insulation: Nylon insulator offers outstanding resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it the preferred choice for marine experts.
• Certified Quality: UL Listed and CSA Recognized for top-tier safety and performance standards.
• High Shrink Ratio: Shrinks to one-third of its original size for a compact and secure fit.
• Efficient Shrinking: Activates at 257°F (125°C), ensuring quick and reliable installation.
• Wide Operating Range: Functions effectively between 40°C to 110°C, suitable for various marine applications.
• Strain Relief: ANCOR heat shrink connectors incorporate an adhesive-built sleeve, providing a watertight seal and superior vibration and strain relief.
• Corrosion Resistance: Tinned for enhanced protection against corrosion in harsh marine environments.
• Optimal Conductivity: Made with pure copper for maximum current flow and efficiency.
• Enhanced Strength: Brazed seam ensures maximum durability and connection strength.

Technical Specifications

Gauge Size	22-18 AWG
Screw Size	#8
Quantity	25-Pack
Wire Range	0.3-0.8 mm
Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887316278

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions and best practices, please refer to our Quick Guide (PDF).
