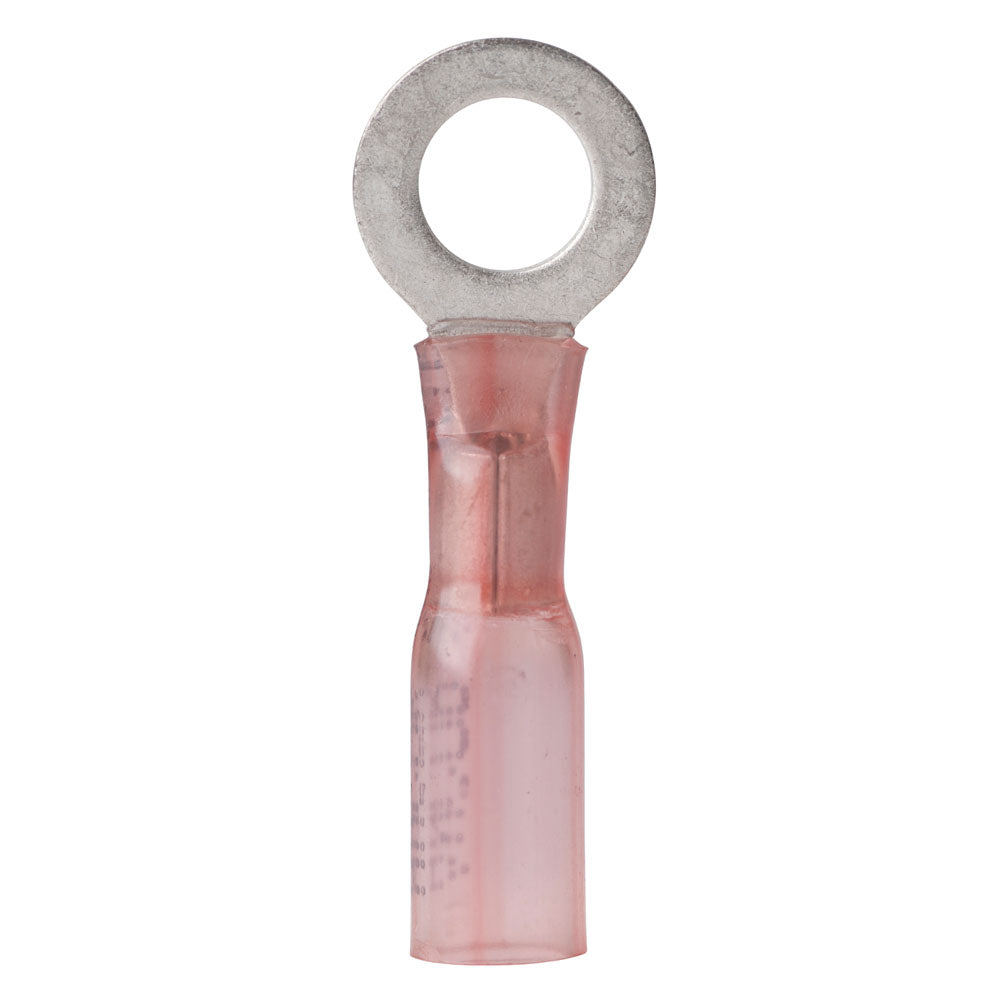

Ancor 22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-Pack

Enhance the reliability and durability of your marine electrical connections with our 22-18 Gauge 5/16" Heat Shrink Ring Terminals. Specifically designed for the demanding conditions of boating and marine environments, these high-quality terminals ensure secure, waterproof connections that stand up to saltwater, vibration, and extreme temperatures.

Key Features

• Superior Material: Constructed with cross-linked polyolefin tubing, offering greater strength and resistance compared to standard PVC tubing. This material won’t burn like PVC, ensuring long-lasting performance.
• Exceptional Sealing: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, providing reliable strain relief and protection.
• Marine-Grade Insulation: Features a nylon insulator preferred by marine experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with industry safety standards.
• High Shrink Ratio: Shrinks to one-third of the original size at 257° F (125° C), ensuring a tight and compact fit.
• Wide Temperature Range: Operates effectively between 40° C to 110° C, suitable for various marine applications.
• Integrated Adhesive: ANCOR heat shrink connectors include built-in adhesive for a water-tight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned for enhanced resistance against corrosion in harsh marine environments.
• Pure Copper: Utilizes pure copper for maximum current flow, ensuring efficient electrical performance.
• Robust Construction: Features a brazed seam for maximum strength and durability.

Technical Specifications

Gauge	22-18 AWG
Type	Ring Terminals
Post Size	5/16"
Quantity	25-Pack
Heat Shrink	Yes
Box Dimensions	1" H x 4" W x 4" L
Weight	0.2 lbs
UPC	091887311037

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
