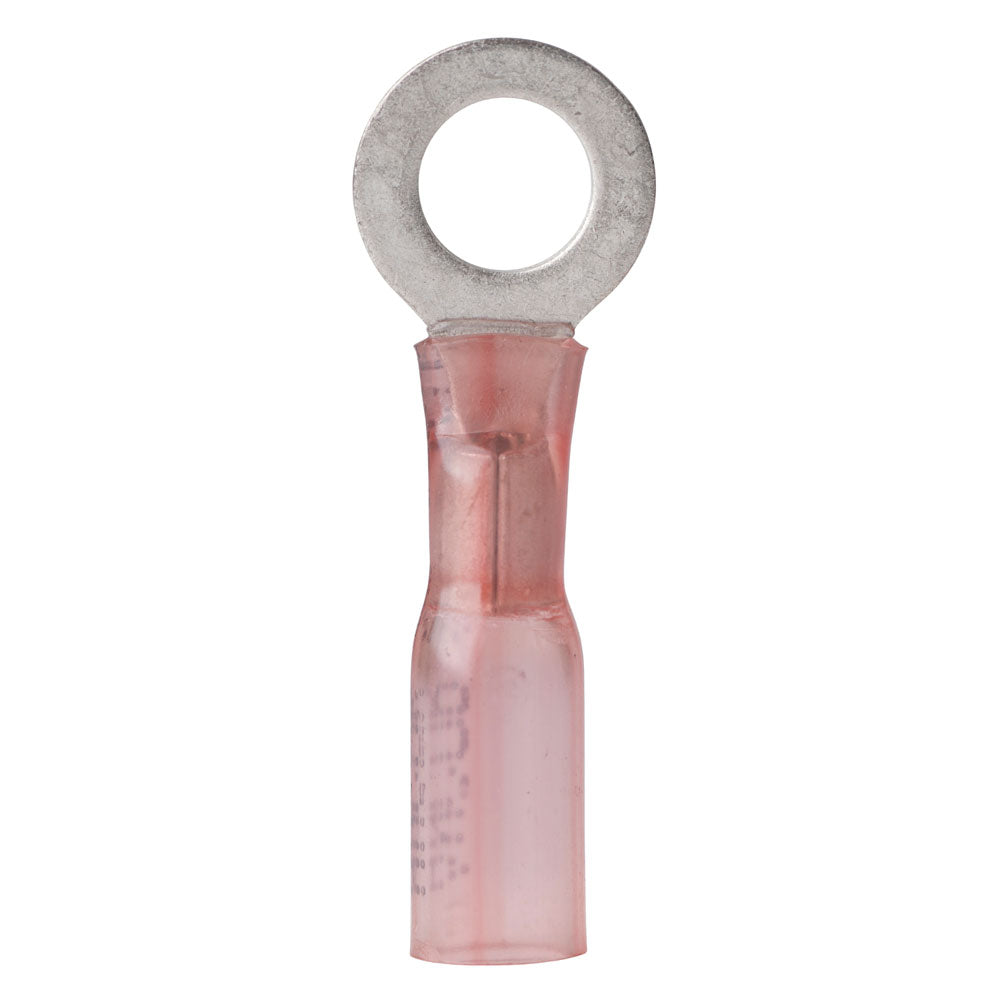

Ancor 22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and durable electrical connections on your vessel with our premium 22-18 Gauge - 3/8" Heat Shrink Ring Terminals. Designed specifically for marine applications, these ring terminals provide optimal performance in harsh marine environments, offering superior protection against saltwater, vibrations, and other challenges faced on the water.

Product Features

• Superior Tubing: Crafted from cross-linked polyolefin tubing, these heat shrink terminals are significantly stronger than traditional PVC tubing and offer enhanced flame resistance.
• Advanced Sealant: The heat-activated adhesive lining creates an impervious barrier against saltwater, oil, acids, and UV exposure, ensuring a watertight and secure connection.
• Marine-Grade Insulation: Features a nylon insulator preferred by marine professionals for its resistance to sunlight, water, oil, chemicals, vibrations, and cut-through damage.
• Certified Quality: UL Listed and CSA Recognized, guaranteeing compliance with rigorous safety and performance standards.
• High Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), providing a compact and durable seal.
• Wide Temperature Range: Operates efficiently between 40°C to 110°C, suitable for various marine electrical systems.
• Integrated Adhesive: ANCOR heat shrink connectors include built-in adhesive for added strain relief and protection.
• Waterproof Seal: Shrinks to form a watertight seal, offering ultimate vibration and strain relief for marine wiring.
• Corrosion Resistant: Tinned for enhanced corrosion resistance, ideal for marine environments exposed to moisture and salt.
• High Conductivity: Made from pure copper to ensure maximum current flow and electrical efficiency.
• Robust Construction: Features a brazed seam for maximum strength and longevity in demanding marine applications.

Specifications

Feature	Details
Heat Shrink	Yes
Type	Ring Terminals
Wire Range	22-18 AWG
Screw Size	3/8"
Quantity	100-Pack
Box Dimensions	2" H x 3" W x 8" L
Weight	0.6 lbs
UPC	091887311167

Installation Guide

For a seamless installation process, refer to our comprehensive Quick Guide (PDF).

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
