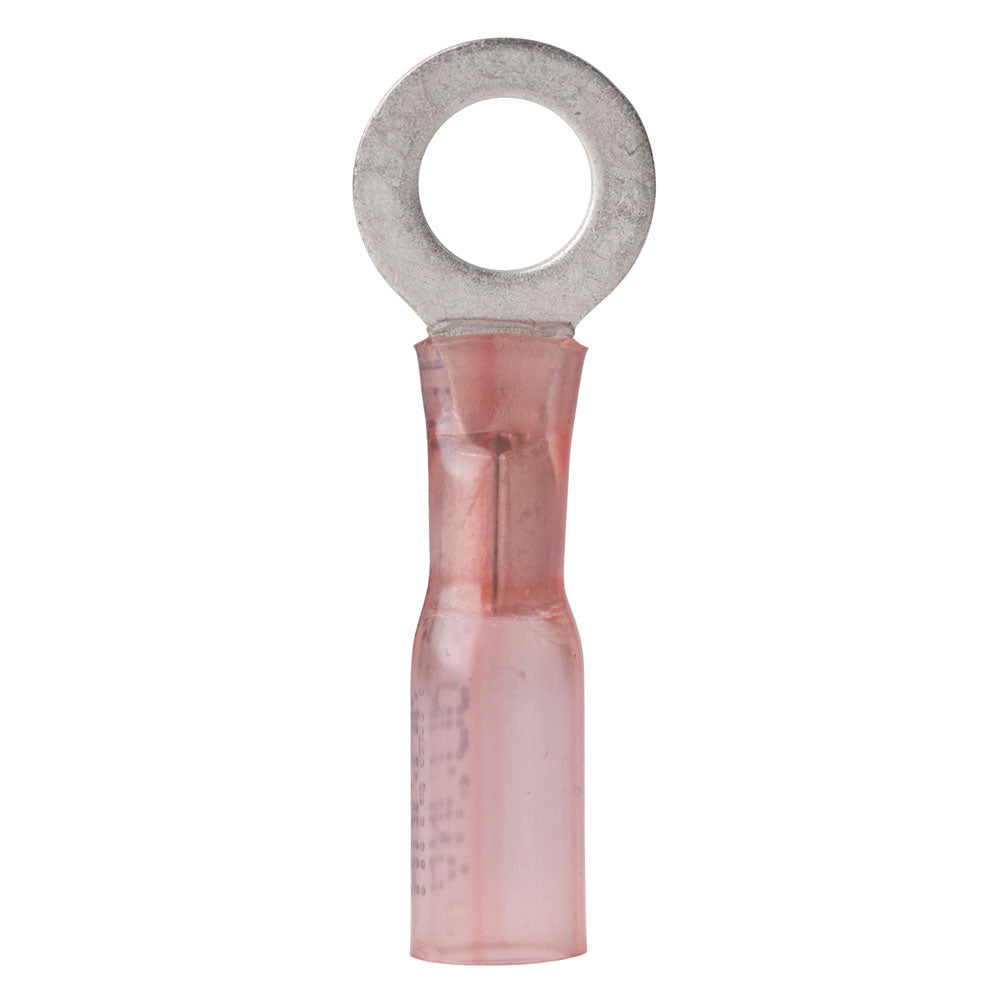

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 3-Pack

Ensure secure and reliable electrical connections on your vessel with our high-quality 22-18 Gauge #10 Heat Shrink Ring Terminals. Specifically engineered for marine applications, these ring terminals provide exceptional durability and protection against the harsh marine environment.

Product Features

• Superior Tubing Material: Cross-linked polyolefin tubing offers enhanced strength compared to PVC, ensuring longevity and resistance to burning.
• Waterproof Seal: Heat-activated adhesive lining creates an impervious barrier against salt water, oil, acids, and sunlight, while providing effective strain relief.
• Marine-Grade Insulation: Nylon insulator delivers outstanding resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, as preferred by marine professionals.
• Certified Safety: UL Listed and CSA Recognized for meeting rigorous safety and quality standards.
• Efficient Shrinkage: Highest shrink ratio that reduces the terminal to one-third of its original size for a compact and secure fit.
• Heat Activation: Shrinks at 257° F (125° C), ensuring a reliable and permanent connection.
• Wide Temperature Range: Operates effectively between 40° C and 110° C, suitable for various marine electrical systems.
• Integrated Adhesive: ANCOR heat shrink connectors include built-in heat-activated adhesive for added protection and strain relief.
• Water Tight Seal: Forms a secure, water-resistant seal that offers ultimate vibration and strain relief.
• Corrosion Resistant: Tinned connectors prevent corrosion in marine environments.
• High Conductivity: Made from pure copper to maximize current flow and minimize resistance.
• Durable Construction: Brazed seam ensures maximum strength and reliability under demanding conditions.

Specifications

Gauge	22-18 AWG
Heat Shrink	Yes
Type	Ring Terminals
Post Size	#10
Package Quantity	3
Box Dimensions	1"H x 1"W x 1"L
Weight	0.1 lbs
UPC	091887318302

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download Quick Guide (PDF)
