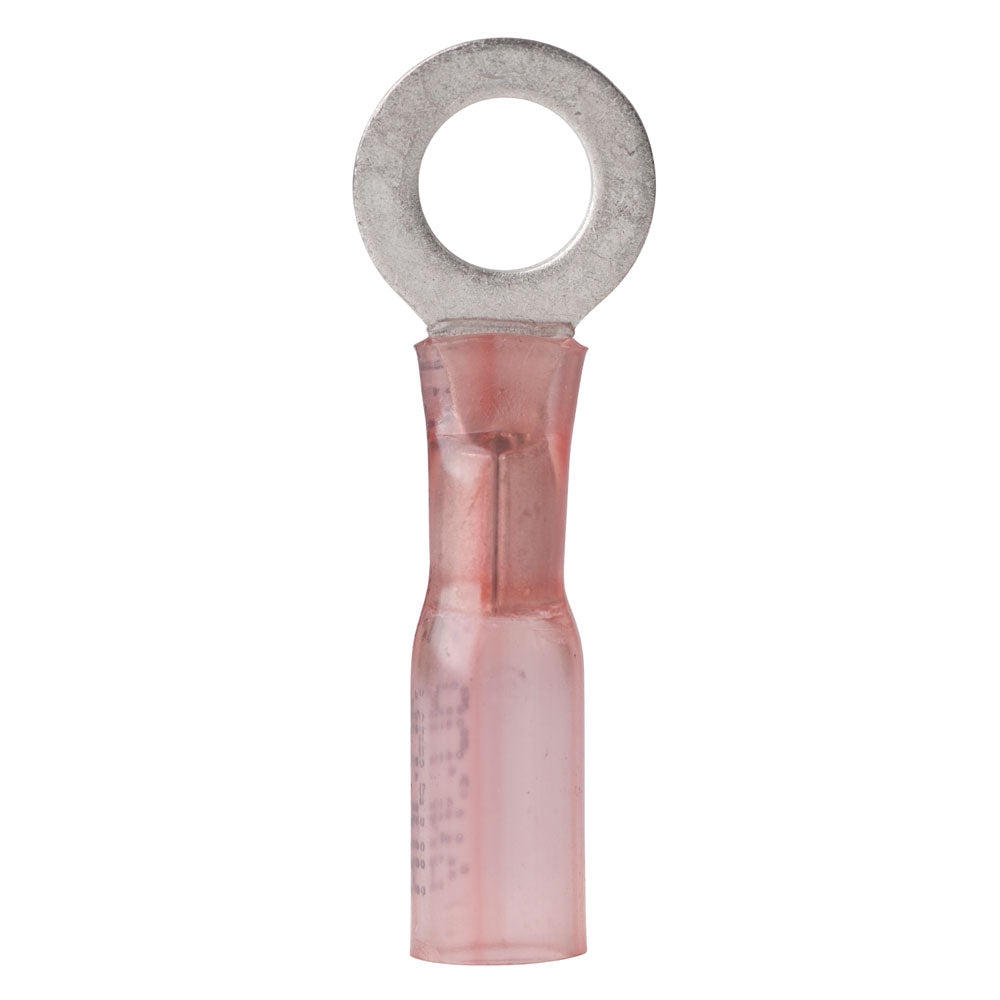

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack

Ensure reliable and secure electrical connections on your boat with our premium #10 Heat Shrink Ring Terminals. Designed specifically for marine applications, these heat shrink terminals provide superior protection against harsh marine environments, including exposure to saltwater, sunlight, and corrosive elements. Whether you're upgrading your vessel's wiring or performing routine maintenance, these ring terminals offer the durability and performance you need to keep your marine electrical systems running smoothly.

Product Features

• Durable Tubing: Constructed with cross-linked polyolefin tubing, these heat shrink terminals are significantly stronger than PVC alternatives and offer enhanced flame resistance.
• Advanced Sealant: Features a heat-activated adhesive lining that creates an impervious seal against saltwater, oil, acids, and UV exposure, ensuring long-lasting protection and strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator preferred by marine experts for its exceptional resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized, meeting stringent safety and quality standards for marine electrical components.
• High Shrink Ratio: Shrinks to one-third of its original size for a compact and secure fit, minimizing bulk and ensuring a neat installation.
• Quick Shrinking: Activates at 257° F (125° C) for efficient application, allowing for a rapid and reliable installation process.
• Wide Operating Range: Functions effectively between 40° C and 110° C, accommodating various marine electrical environments.
• Integrated Adhesive: ANCORS heat shrink connectors incorporate heat-activated adhesive within the sleeve for a robust, water-tight seal and superior vibration and strain relief.
• Corrosion Resistant: Tin-plated for enhanced corrosion resistance, ensuring longevity in saline marine conditions.
• Pure Copper Construction: Made from pure copper to maximize current flow and maintain optimal electrical performance.
• Strong Seams: Features a brazed seam for maximum strength and durability, preventing leaks and ensuring a secure connection.

Specifications

Gauge	22-18 AWG
Type	Ring Terminals
Post Size	#10
Package Quantity	25-Pack
Heat Shrink	Yes
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887311051

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions and best practices, please refer to our Quick Guide (PDF).
