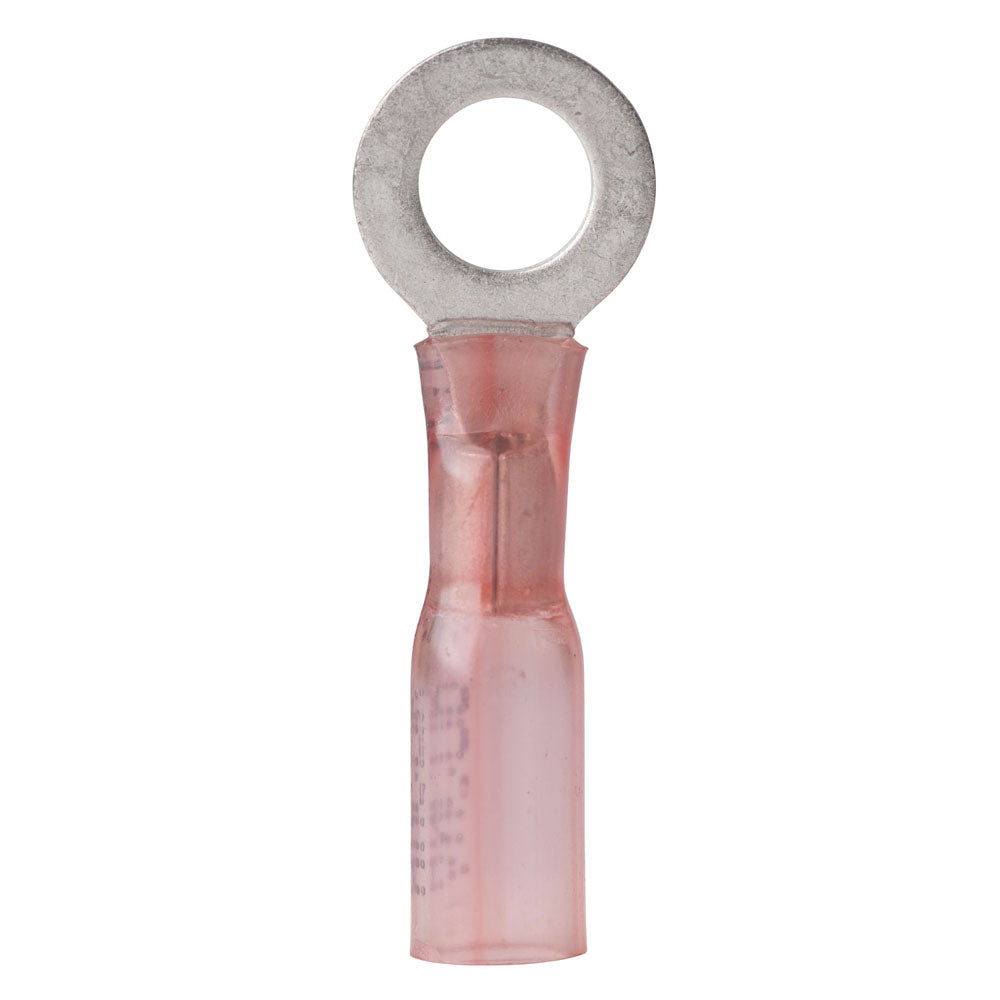

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and durable connections on your marine vessels with our high-quality 22-18 Gauge #10 Heat Shrink Ring Terminals. Designed specifically for the demanding conditions of the boating environment, these ring terminals provide optimal performance, corrosion resistance, and ease of installation, making them an essential addition to your marine electrical toolkit.

Product Features

• Superior Tubing: Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC tubing and do not burn like PVC, ensuring long-lasting performance.
• Advanced Sealant: The heat-activated adhesive lining creates a watertight seal resistant to saltwater, oil, acids, and UV exposure, while providing effective strain relief.
• Marine-Grade Insulation: Features a nylon insulator preferred by marine experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized for compliance with industry safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size for a secure and compact fit.
• Heat Shrink Activation: Activates at 257°F (125°C) to ensure a strong, lasting bond.
• Temperature Resilience: Operates effectively within a temperature range of 40°C to 110°C.
• Integrated Adhesive: ANCOR heat shrink connectors feature heat-activated adhesive built into the sleeve, enhancing the seal.
• Secure Connection: Forms a watertight seal with ultimate vibration and strain relief, ideal for the dynamic marine environment.
• Corrosion Resistant: Tinned for enhanced resistance against corrosion, ensuring longevity in harsh conditions.
• Pure Copper Construction: Made from pure copper to maximize current flow and minimize resistance.
• Brazed Seam: Features a brazed seam for added strength and durability.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Specifications

Gauge	22-18 AWG
Type	Ring Terminals
Post Size	#10
Package Quantity	100-Pack
Heat Shrink	Yes
Box Dimensions	1"H x 3"W x 4"L
Weight	0.2 lbs
UPC	091887311044

Additional Resources

Download the Quick Guide (PDF)
