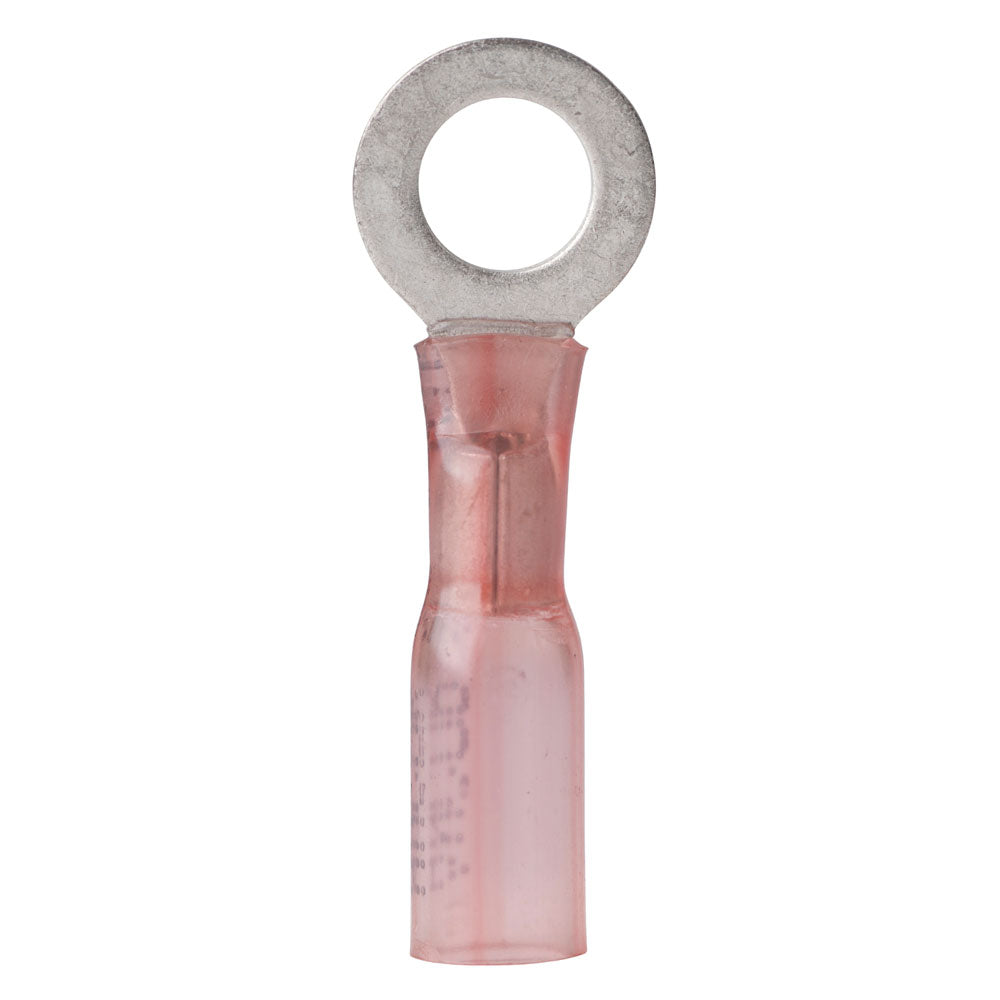

Ancor 22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and secure electrical connections on your marine vessel with our 22-18 AWG Heat Shrink Ring Terminals. Specifically designed for the demanding conditions of marine environments, these ring terminals provide exceptional durability and protection against corrosion, moisture, and vibration.

Product Features

• Superior Tubing: Cross-linked polyolefin tubing offers enhanced strength over PVC, ensuring long-lasting performance without the risk of burning.
• Waterproof Seal: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and UV exposure, while providing effective strain relief.
• Marine-Grade Insulation: Nylon insulator delivers resistance to sunlight, water, oil, chemicals, vibration, and physical damage, making it the preferred choice for marine applications.
• Certified Safety: UL Listed and CSA Recognized for adherence to high safety and quality standards.
• High Shrink Ratio: Shrinks to one-third of its original size, ensuring a compact and secure fit.
• Efficient Shrinking: Activates at 257°F (125°C) for quick and easy installation.
• Wide Temperature Range: Operates efficiently between 40°C and 110°C, suitable for various marine electrical systems.
• Integrated Adhesive: ANCOR heat shrink connectors feature built-in heat-activated adhesive for a watertight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned pure copper construction ensures maximum current flow and excellent corrosion resistance.
• Durable Connection: Brazed seam enhances the terminal’s strength and reliability for long-term use.

Specifications

Gauge	22-18 AWG
Heat Shrink	Yes
Post Size	1/4"
Type	Ring Terminals
Package Quantity	100-Pack
Box Dimensions	2"H x 3"W x 4"L
Weight	0.3 lbs
UPC	091887311082

Download Quick Guide (PDF)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
