Ancor 16/2 Safety Duplex Cable - 500'

Ensure the safety and reliability of your marine electrical systems with our 16/2 Safety Duplex Cable. Designed specifically for the demanding environment of boats and marine applications, this cable offers exceptional durability and performance to keep your onboard systems running smoothly.

Key Features

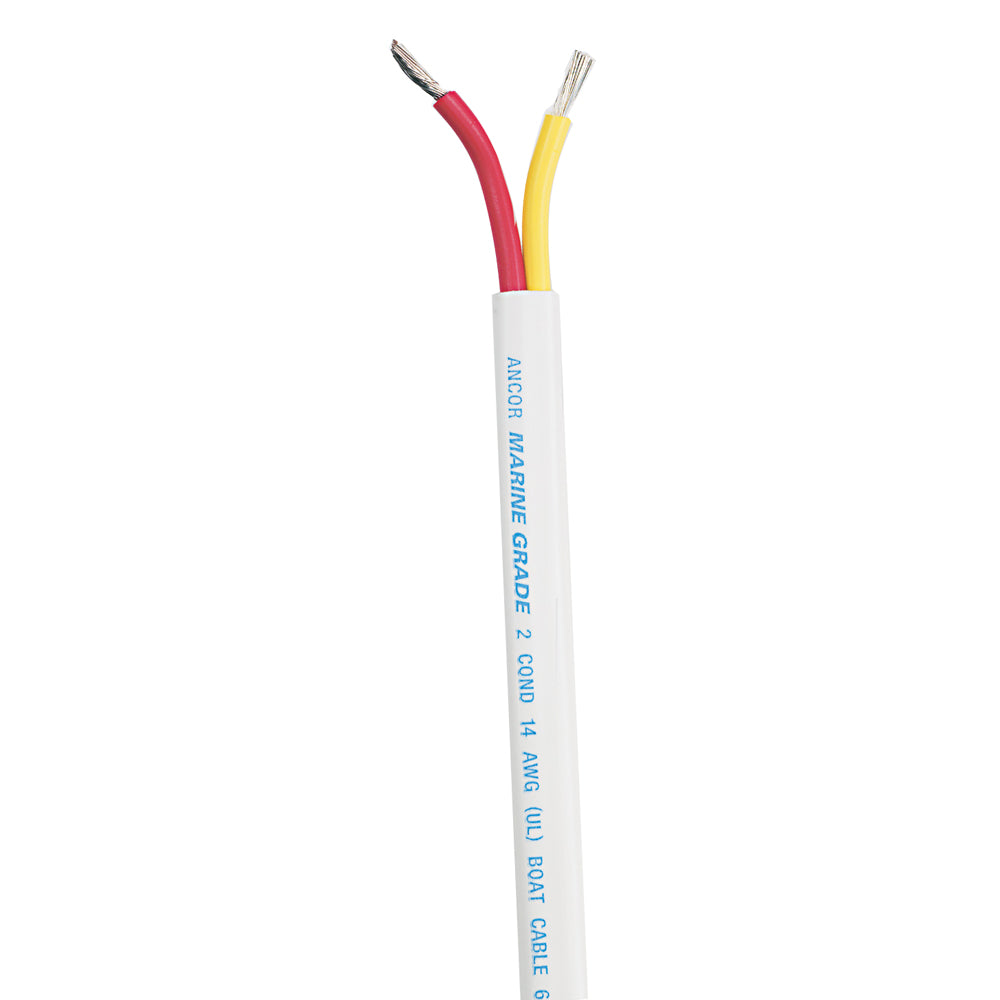

• Marine-Grade Conductors: Red and yellow primary conductors encased in a durable white common jacket for clear identification and reliable performance.
• Safety-Oriented Color Coding: Yellow wire is recommended for DC negative applications to prevent accidental cutting of AC live wires, enhancing safety when working on DC systems.
• Superior Flexibility: Exceeds UL Boat Cable standards with ultra-flexible Type 3/Class K stranding, resisting fatigue caused by constant vibration and flexing.

Durable Construction

The 16/2 Safety Duplex Cable is built to withstand the harsh marine environment:

• Easy Removal Outer Jacket: Designed for effortless removal, providing the best abrasion resistance available to protect against physical wear.
• Premium Vinyl Insulation: ANCOR's proprietary insulation remains flexible in extreme cold and resists salt water, battery acid, oil, gasoline, and ultraviolet radiation.
• High Voltage Rating: Insulation rated at 600V, 105°C dry, and 75°C wet, ensuring robust protection against heat and abrasion.
• ABYC Compliance: Inner conductors are correctly color-coded to ABYC standards, facilitating safe and standardized installations.

Specifications

Attribute	Details
Color	Red/Yellow
Length	500 feet
Gauge	16/2 AWG
Box Dimensions	10" H x 11" W x 11" L
Weight	21.6 lbs

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download Brochure (PDF)
