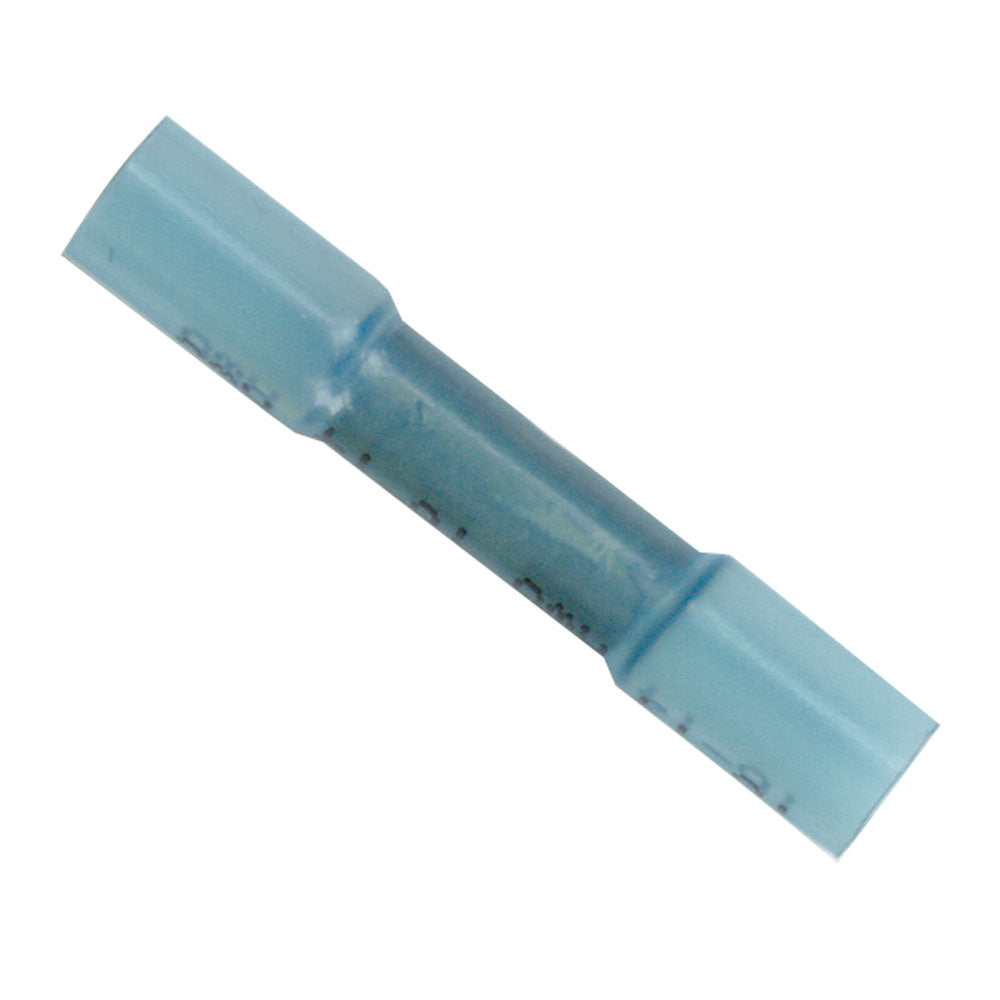

Ancor 16-14 Heatshrink Butt Connectors - 100-Pack

The 16-14 Heatshrink Butt Connectors are your go-to solution for creating secure and reliable electrical connections in marine and boating applications. Engineered to endure the harsh conditions of the marine environment, these connectors ensure optimal performance and longevity for your boat's electrical systems.

Features

• Durable Material: Constructed with cross-linked polyolefin tubing, these connectors are significantly stronger than PVC tubing and offer superior flame resistance.
• Impervious Seal: The heat-activated adhesive lining provides a watertight seal that protects against saltwater, oil, acids, and UV exposure, while also offering strain relief.
• Marine-Grade Nylon Insulator: Preferred by experts, the nylon insulator is resistant to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring long-lasting performance.
• Certified Safety: UL Listed and CSA Recognized, guaranteeing compliance with high safety and quality standards.
• High Shrink Ratio: Shrinks to one-third of its original size, allowing for a compact and secure connection.
• Heat Shrinking Temperature: Activates at 257°F (125°C) for efficient installation.
• Operating Temperature Range: Functions reliably in environments ranging from 40°C to 110°C.
• Enhanced Protection: Features heat-activated adhesive built into the sleeve, forming a watertight seal with excellent vibration and strain relief.
• Corrosion Resistance: Tinned connectors prevent corrosion, making them ideal for marine settings.
• Pure Copper: Ensures maximum current flow for efficient electrical connections.
• Brazed Seam: Provides maximum strength for enduring connections.

Technical Specifications

Gauge Size	16-14 AWG
Type	Butt Connectors
Quantity	100-Pack
Heat Shrink	Yes
Wire Range	16-14 AWG
Millimeters	1-2 mm
Box Dimensions	2"H x 3"W x 8"L
Weight	0.4 lbs
UPC	091887307962

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download Quick Guide (PDF)
