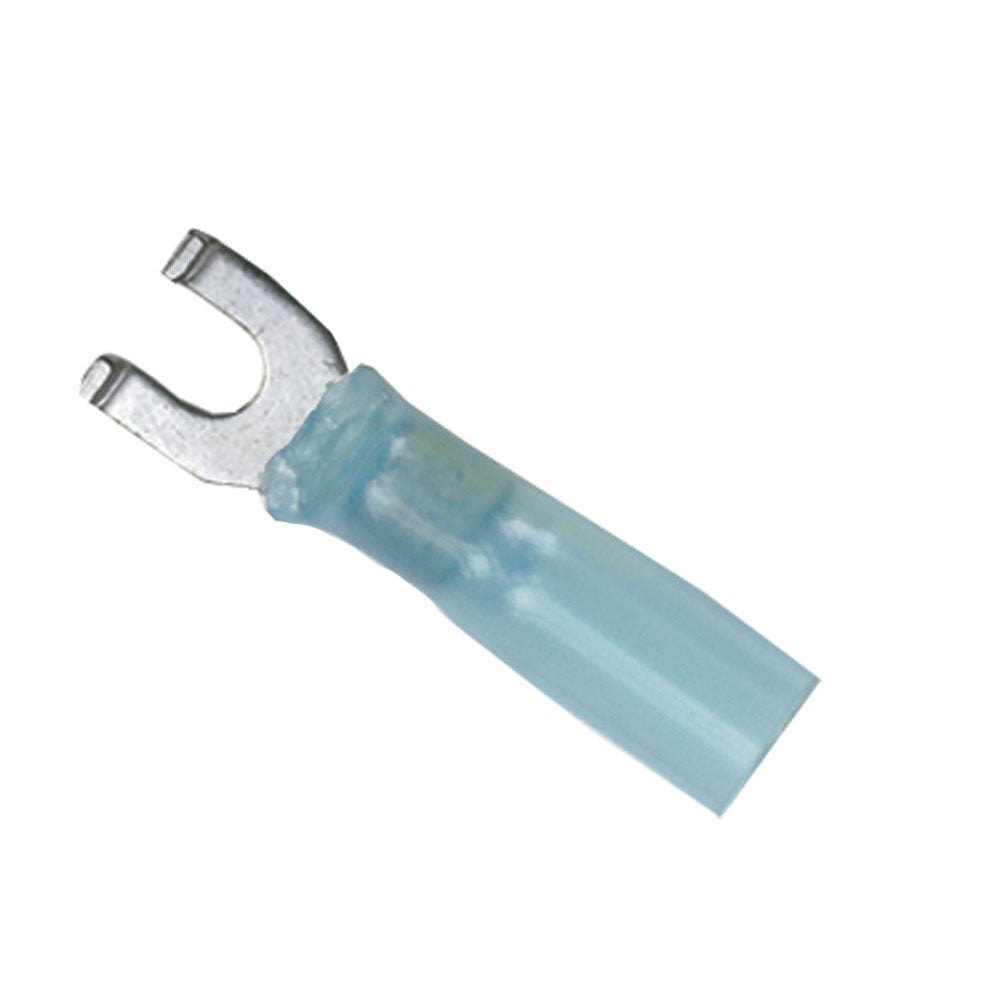

Ancor 16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-Pack

Enhance your marine electrical connections with our premium 16-14 Gauge #8 Heat Shrink Spade Terminals. Designed specifically for the rigorous demands of marine and boating environments, these terminals ensure reliable performance and long-lasting durability in harsh conditions.

Key Features

• Superior Tubing Material: Crafted from cross-linked polyolefin tubing, these terminals offer significantly greater strength than PVC tubing and are resistant to burning, ensuring safety and longevity.
• Advanced Sealing: The heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, providing excellent protection and strain relief for your electrical connections.
• Expert-Preferred Insulation: Equipped with a nylon insulator, these terminals are favored by professionals for their reliability and performance.
• Certified Quality: UL Listed and CSA Recognized, guaranteeing adherence to strict safety and quality standards essential for marine applications.
• High Shrink Ratio: These terminals shrink to one-third of their original size at 257°F (125°C), ensuring a tight and secure fit around your wires.
• Wide Operating Temperature Range: Capable of withstanding temperatures from 40°C to 110°C, making them suitable for various marine environments.
• Corrosion Resistance: Tinned for enhanced resistance against corrosion, ensuring longevity even in saltwater conditions.
• Maximum Current Flow: Made from pure copper to facilitate optimal current flow, reducing the risk of voltage drops and ensuring efficient electrical performance.
• Durable Construction: Featuring a brazed seam for maximum strength, these terminals withstand the vibrations and movements associated with boating.
• Versatile Wire Range: Compatible with 16-14 AWG wires, accommodating a variety of marine electrical applications.

Specifications

Gauge	16-14 AWG
Type	Spade Connectors
Package Quantity	100-Pack
Heat Shrink	Yes
Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Tube Material	Cross-Linked Polyolefin
Insulator Material	Nylon
Corrosion Resistance	Tinned
Current Conductor	Pure Copper
Seam Type	Brazed
Wire Range	1-2 mm
Screw Size	4mm
Box Dimensions	2"H x 3"W x 4"L
Weight	0.3 lbs
UPC	091887316353

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
