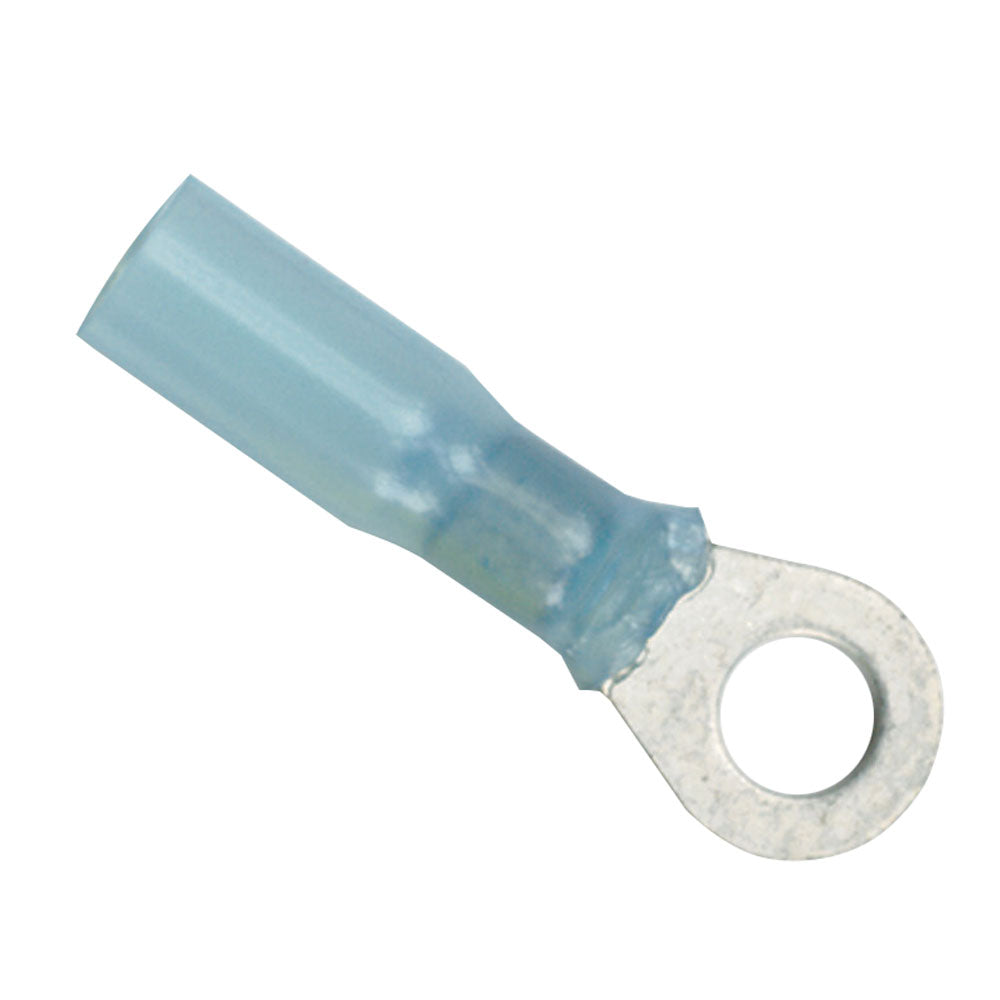

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack

Enhance your marine electrical connections with our high-performance 16-14 Gauge #8 Heat Shrink Ring Terminals. Designed specifically for the demanding conditions of marine and boating environments, these ring terminals ensure reliable and durable connections, providing ultimate protection against the elements.

Product Features

• Durable Tubing: Made with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC tubing and resistant to burning.
• Secure Seal: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, while providing effective strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator for exceptional resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized for quality and safety compliance.
• High Shrink Ratio: Shrinks to one-third of the original size at 257°F (125°C), ensuring a tight and compact fit.
• Operating Temperature Range: Reliable performance between 40°C and 110°C.
• Advanced Adhesive Technology: Features ANCOR heat shrink connectors with built-in heat-activated adhesive for a watertight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned for enhanced resistance against corrosion in harsh marine environments.
• Pure Copper Construction: Ensures maximum current flow with high conductivity.
• Strong Connection: Brazed seam provides maximum strength for long-lasting connections.

Technical Specifications

Gauge Size	16-14 AWG
Screw Size	#8
Quantity	100-Pack
Heat Shrink	Yes
Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Box Dimensions	2"H x 3"W x 4"L
Weight	0.3 lbs
UPC	091887313062

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
