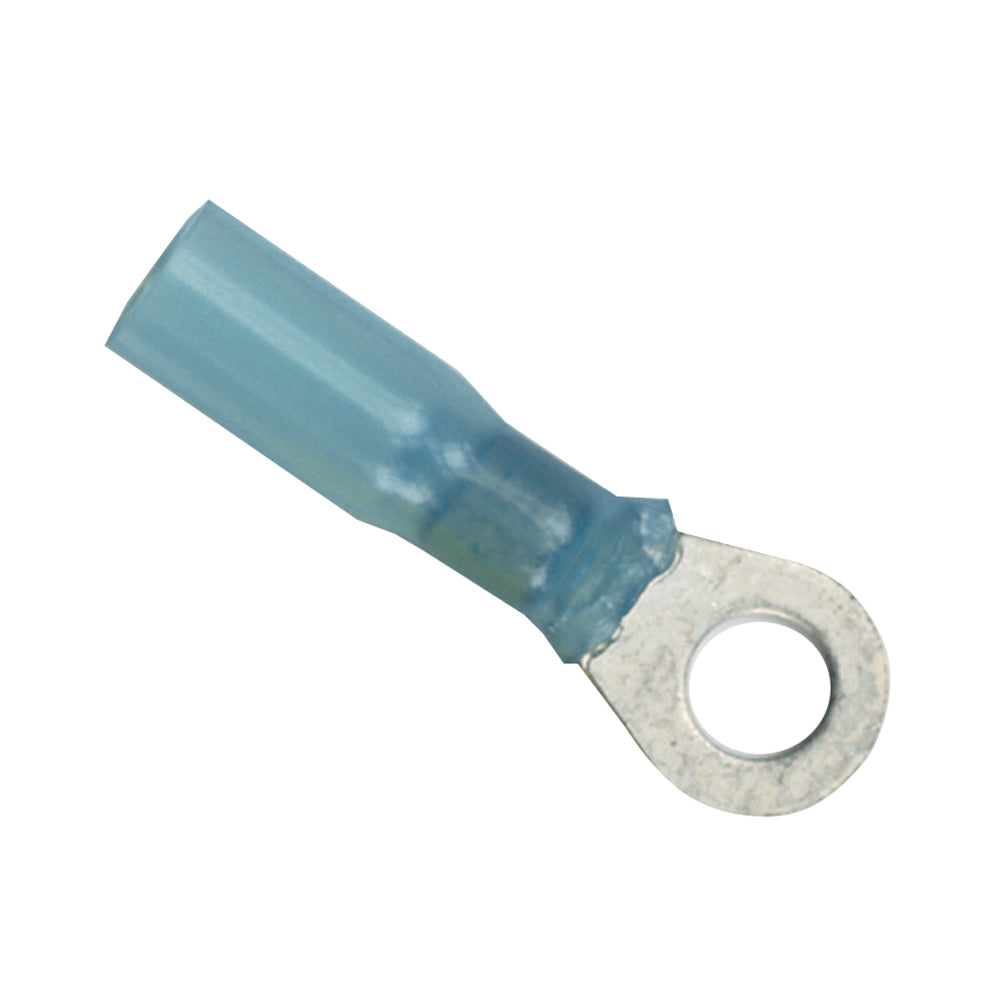

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

Ensure reliable and secure electrical connections on your vessel with our high-performance 16-14 AWG Heat Shrink Ring Terminals. Designed specifically for marine applications, these terminals provide exceptional durability and resistance against the harsh marine environment, ensuring your boat's electrical systems remain safe and efficient.

Product Features

• Durable Tubing: Crafted with cross-linked polyolefin tubing, offering superior strength compared to PVC and enhanced resistance to burning.
• Advanced Sealant: Features a heat-activated adhesive lining that creates an impermeable seal against saltwater, oil, acids, and sunlight, while also providing strain relief.
• Marine-Grade Insulation: Utilizes a nylon insulator preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with industry safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size for a compact and secure fit.
• Heat Shrinking Temperature: Activates at 257° F (125° C) for efficient installation.
• Operating Temperature Range: Functions reliably between 40° C to 110° C.
• Integrated Adhesive: ANCOR heat shrink connectors include built-in heat-activated adhesive for an extra layer of protection.
• Waterproof Seal: Shrinks to form a watertight barrier, providing ultimate vibration and strain relief.
• Corrosion Resistant: Tinned for enhanced resistance against corrosion in marine environments.
• Pure Copper: Ensures maximum current flow for optimal electrical performance.
• Strong Construction: Brazed seam design offers maximum strength and durability.

Specifications

Gauge	16-14 AWG
Package Quantity	3
Heat Shrink	Yes
Type	Ring Terminals
Post Size	5/16"
Box Dimensions	1"H x 1"W x 1"L
Weight	0.1 lbs
UPC	091887313147

Safety Information

WARNING: This product may expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions, please refer to our Quick Guide (PDF).
