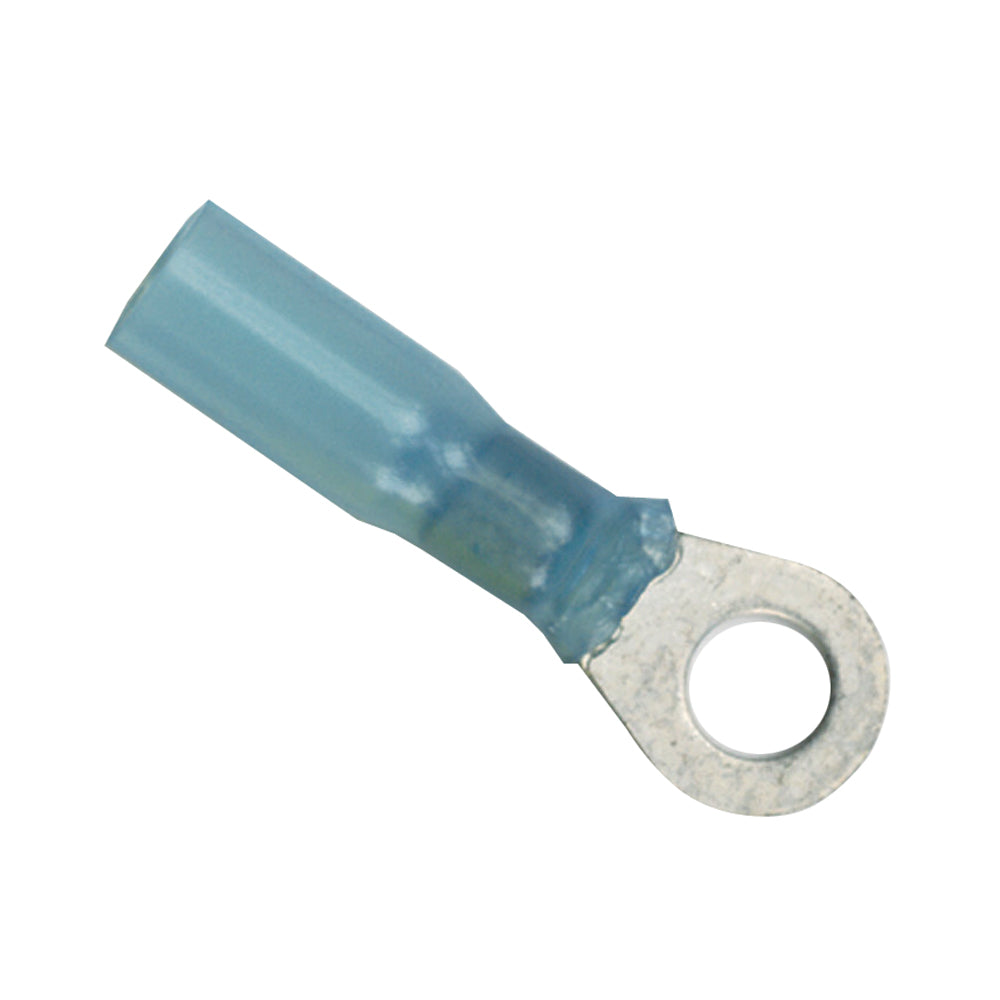

Ancor 16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack

Ensure reliable and secure electrical connections on your boat with our 3/8" Heat Shrink Ring Terminals. Designed specifically for marine applications, these heat shrink terminals provide superior protection against the harsh marine environment, including exposure to salt water, UV rays, and constant vibrations.

Product Features

• Durable Construction: Cross-linked polyolefin tubing offers enhanced strength compared to PVC, ensuring longevity and resistance to burning.
• Superior Sealing: Heat-activated adhesive lining creates an airtight and waterproof seal, protecting against salt water, oil, acids, and sunlight while providing strain relief.
• Marine-Grade Insulation: Expert-preferred nylon insulators provide exceptional resistance to sunlight, water, oil, chemicals, vibrations, and cut-through damage.
• Certified Quality: UL Listed and CSA Recognized for safety and reliability in marine environments.
• High Shrink Ratio: Shrinks to one-third of the original size at 257° F/125° C, ensuring a tight fit and robust connection.
• Wide Operating Temperature Range: Functional from 40° C to 110° C, suitable for various marine climates.
• Integrated Heat Shrink Adhesive: Built-in adhesive in the heat shrink sleeve forms a waterproof seal and provides ultimate vibration and strain relief.
• Corrosion Resistant: Tinned connections resist corrosion, ideal for the salty marine environment.
• Pure Copper Construction: Ensures maximum current flow for efficient electrical performance.
• Strong Brazed Seam: Provides maximum strength and durability for long-lasting connections.

Specifications

Gauge	16-14 AWG
Type	Ring Terminals
Post Size	3/8"
Quantity	3-Pack
Heat Shrink	Yes
Box Dimensions	1" H x 1" W x 1" L
Weight	0.1 lbs
UPC	091887313208

WARNING: This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Download Quick Guide (PDF)
