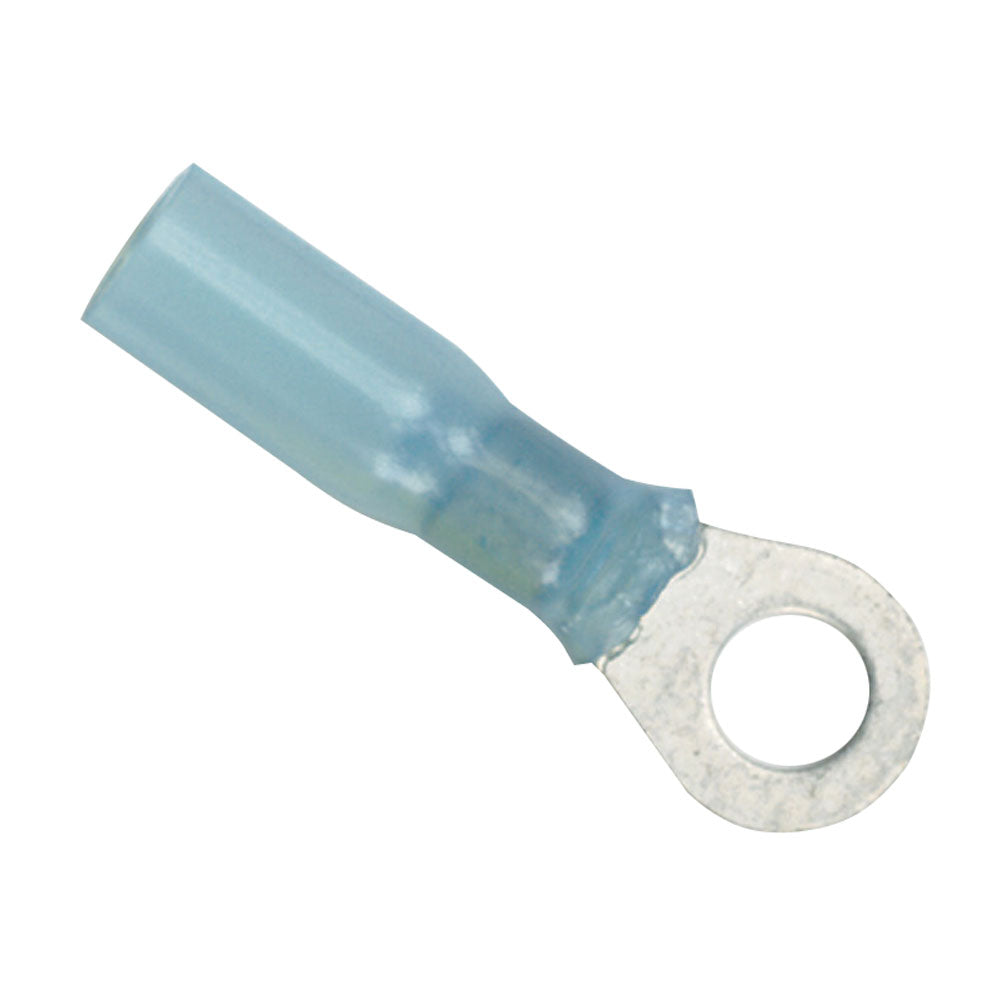

Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack

Ensure reliable and durable electrical connections on your boat with our high-quality 16-14 Gauge #10 Heat Shrink Ring Terminals. Designed specifically for marine environments, these terminals provide superior protection against corrosion, vibration, and harsh weather conditions, making them the perfect choice for all your boating electrical needs.

Product Features

• Superior Material: Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger than traditional PVC tubing and offer enhanced flame resistance.
• Advanced Seal: Features a heat-activated adhesive lining that creates an impervious seal against salt water, oil, acids, and sunlight while providing excellent strain relief.
• Marine-Grade Insulator: Equipped with a nylon insulator, preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with stringent safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size at 257° F/125° C, providing a compact and secure fit.
• Wide Operating Range: Functions effectively within a temperature range of 40° C to 110° C, suitable for various marine applications.
• Integrated Adhesive: ANCOR heat shrink connectors come with built-in heat-activated adhesive for a watertight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned for excellent corrosion resistance, ensuring longevity in marine environments.
• Pure Copper Construction: Made with pure copper for maximum current flow and optimal electrical performance.
• Enhanced Strength: Brazed seam design provides maximum strength and durability for secure connections.

Specifications

Gauge	16-14 AWG
Type	Ring Terminals
Post Size	#10
Heat Shrink	Yes
Package Quantity	25-Pack
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887313109

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) for detailed instructions and tips on installing your heat shrink ring terminals.
