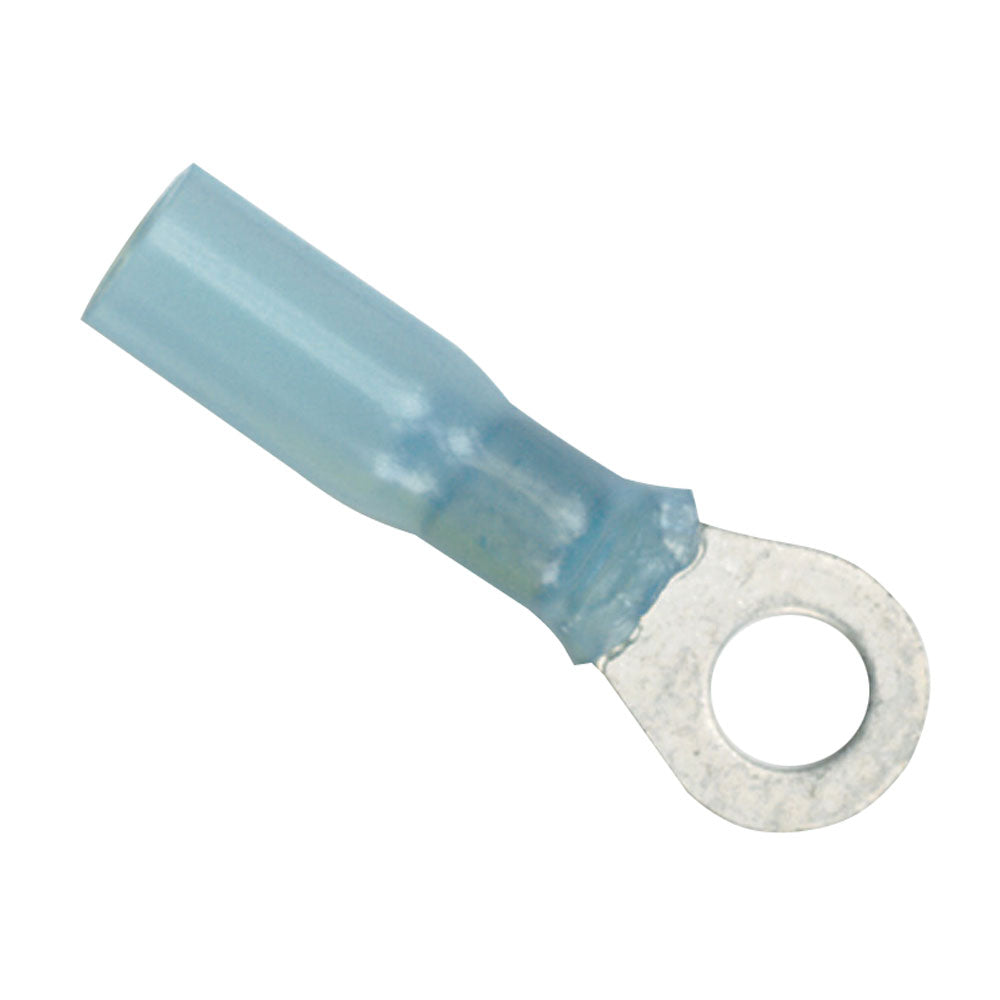

Ancor 16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

Ensure reliable and durable electrical connections on your boat with our high-quality 16-14 Gauge 1/4" Heat Shrink Ring Terminals. Specifically designed for marine environments, these ring terminals provide exceptional protection against harsh conditions, ensuring your marine electrical systems remain safe and efficient.

Product Features

• Superior Tubing: Cross-linked polyolefin tubing offers enhanced strength compared to PVC, providing superior resistance to burning and abrasion.
• Advanced Sealing: Heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, while also offering effective strain relief.
• Marine-Grade Insulation: Nylon insulators are preferred by marine professionals for their resistance to UV rays, water, oil, chemicals, vibration, and cut-through damage.
• Certified Quality: UL Listed and CSA Recognized for safety and reliability.
• High Shrink Ratio: Shrinks to one-third of the original size, ensuring a tight and secure fit.
• Heat Shrink Compatibility: Activates at 257° F (125° C) to provide a robust seal.
• Wide Operating Range: Functions effectively between 40° C to 110° C, suitable for various marine applications.
• Integrated Adhesive: ANCOR heat shrink connectors feature built-in heat-activated adhesive for an additional layer of protection.
• Waterproof Seal: Forms a watertight barrier, offering ultimate vibration and strain relief to withstand marine conditions.
• Corrosion Resistance: Tinned for added protection against corrosion in saline environments.
• Pure Copper Construction: Ensures maximum current flow and minimal resistance.
• Enhanced Strength: Brazed seam construction provides maximum durability and strength.

Specifications

Gauge	16-14 AWG
Type	Ring Terminals
Post Size	1/4"
Package Quantity	25
Heat Shrink	Yes
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887316292

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) for detailed instructions on installation and usage.
