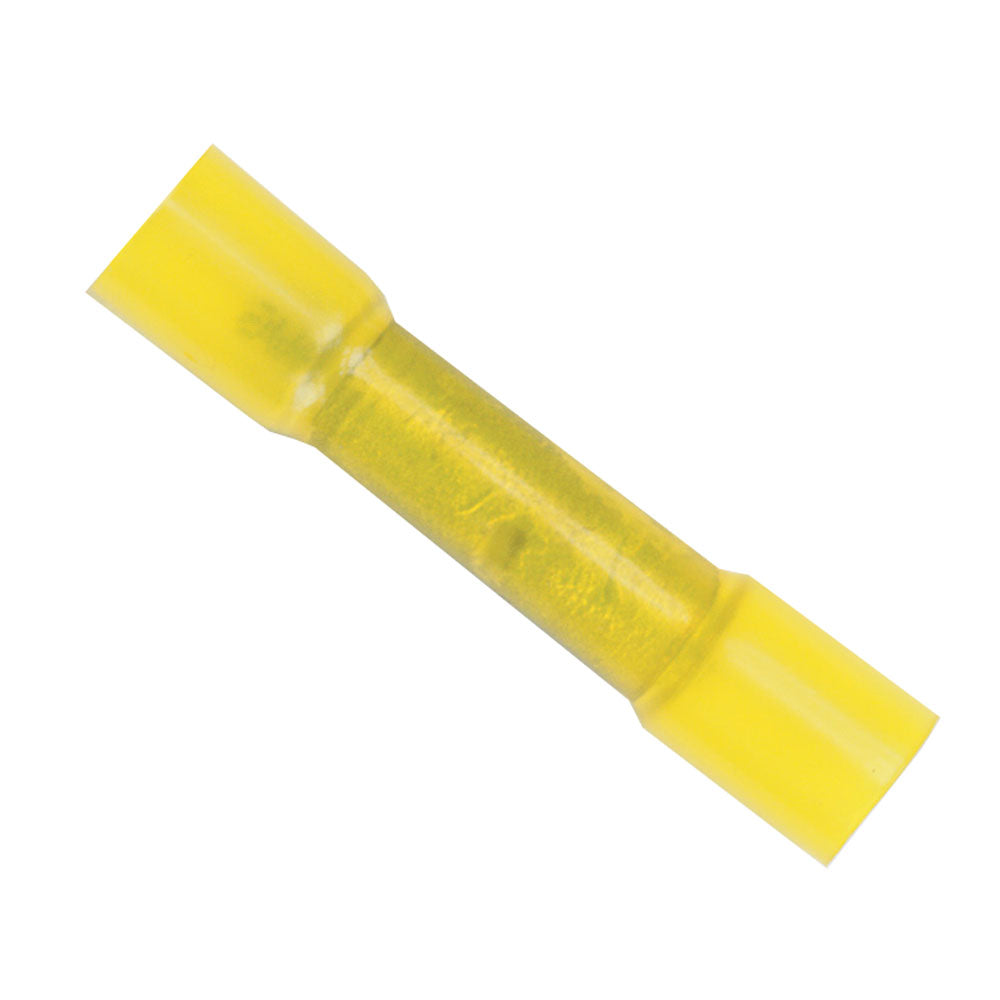

Ancor 12-10 Heatshrink Butt Connectors - 500-Pack

Ensure your marine electrical connections are secure and reliable with our 12-10 Heatshrink Butt Connectors. Designed specifically for the demanding conditions of marine and boating environments, these connectors provide exceptional protection against water, corrosion, and physical stress, ensuring long-lasting performance for your vessel's wiring needs.

Key Features

• Superior Durability: Constructed with cross-linked polyolefin tubing, these connectors are significantly stronger than standard PVC tubing and offer enhanced resistance to burning.
• Advanced Sealing: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, while also providing effective strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator, these connectors are preferred by experts for their resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Quality: UL Listed and CSA Recognized, ensuring compliance with safety and performance standards.
• High Shrink Ratio: Shrinks to one-third of its original size, allowing for a compact and secure fit.
• Optimal Shrinking Temperature: Shrinks effectively at 257°F (125°C) to form a tight seal.
• Wide Operating Range: Functions reliably in temperatures ranging from 40°C to 110°C.
• Enhanced Adhesion: Features built-in heat-activated adhesive within the heat shrink sleeve for a watertight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned for added protection against corrosion in harsh marine environments.
• Pure Copper Construction: Ensures maximum current flow with high conductivity.
• Strong Brazed Seam: Provides maximum strength and durability for long-term use.
• Compatibility: Suitable for wire ranges 12-10 AWG and 3-5 mm.

Technical Specifications

Gauge	12-10 AWG
Type	Butt Connectors
Quantity per Pack	500
Heat Shrink	Yes
Box Dimensions	4"H x 4"W x 13"L
Weight	3.6 lbs
UPC	091887308259

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
