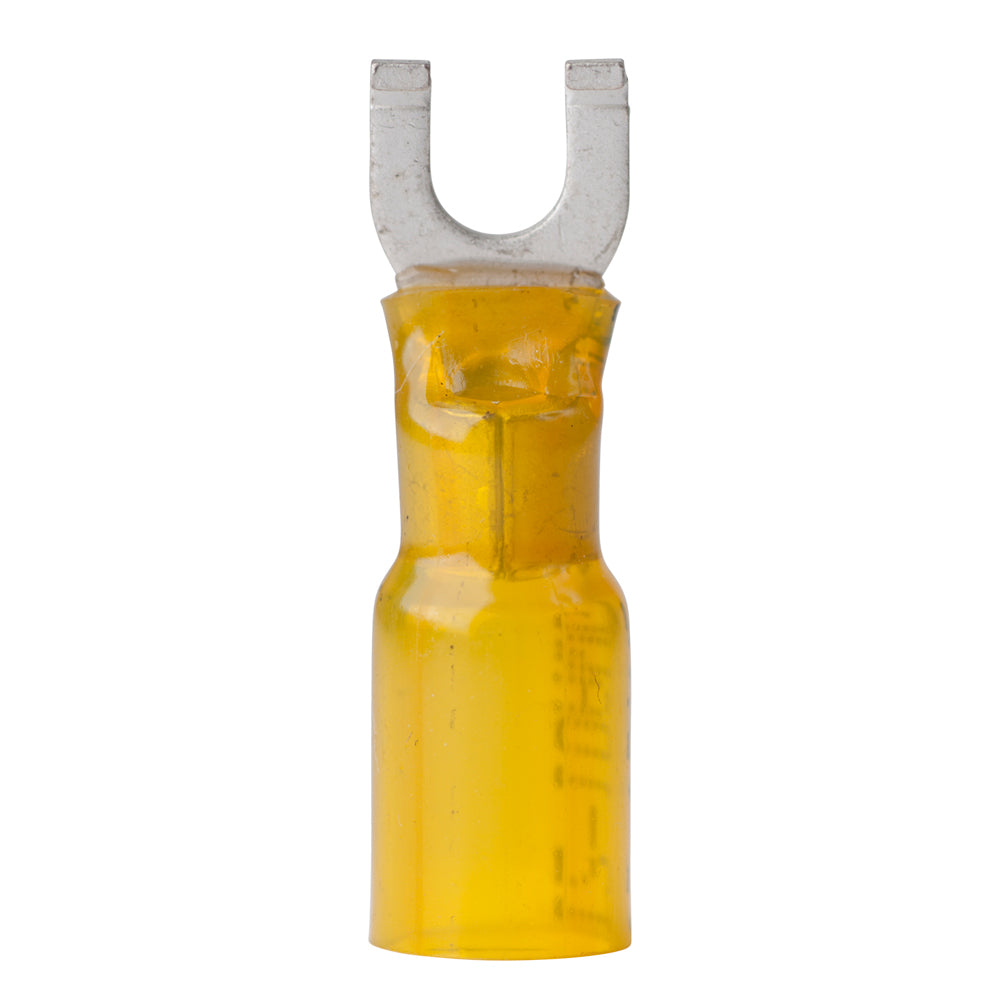

Ancor 12-10 Gauge - #8 Heat Shrink Spade Terminals - 100 Pack

Ensure reliable and secure electrical connections on your boat with our high-quality 12-10 Gauge #8 Heat Shrink Spade Terminals. Designed specifically for marine and boating applications, these terminals offer superior durability and protection against the harsh marine environment, ensuring your electrical systems perform flawlessly even in the most demanding conditions.

Key Features

• Enhanced Durability: Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger than standard PVC tubing and offer superior resistance to burning, making them ideal for marine use.
• Superior Sealing: The heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and UV exposure, providing excellent protection and strain relief for your connections.
• Expert-Preferred Insulation: Featuring a nylon insulator, these terminals are the top choice among marine electrical professionals for their reliability and performance.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with rigorous safety standards for marine electrical systems.
• Maximum Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), offering a compact and secure fit for your connections.
• Wide Operating Range: Functions efficiently in temperatures ranging from 40°C to 110°C, suitable for various marine environments.
• Corrosion Resistant: Tinned for enhanced resistance to corrosion, prolonging the lifespan of your electrical connections in salty marine conditions.
• High Conductivity: Made from pure copper to ensure maximum current flow and minimal resistance.
• Robust Construction: Features a brazed seam for added strength and durability, ensuring long-lasting performance.
• Versatile Wire Range: Compatible with 12-10 AWG wires, accommodating a variety of marine electrical applications.
• Optimal Sizing: Designed with a 3-5 mm size and a 4mm screw size for secure and reliable connections.
• Convenient Packaging: Comes in a pack of 100, providing ample supply for multiple projects or installations.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Specifications

Gauge	12-10 AWG
Type	Spade Connectors
Package Quantity	100
Heat Shrink	Yes
Box Dimensions	1"H x 3"W x 8"L
Weight	0.5 lbs
UPC	091887318524

Download Quick Guide (PDF)
