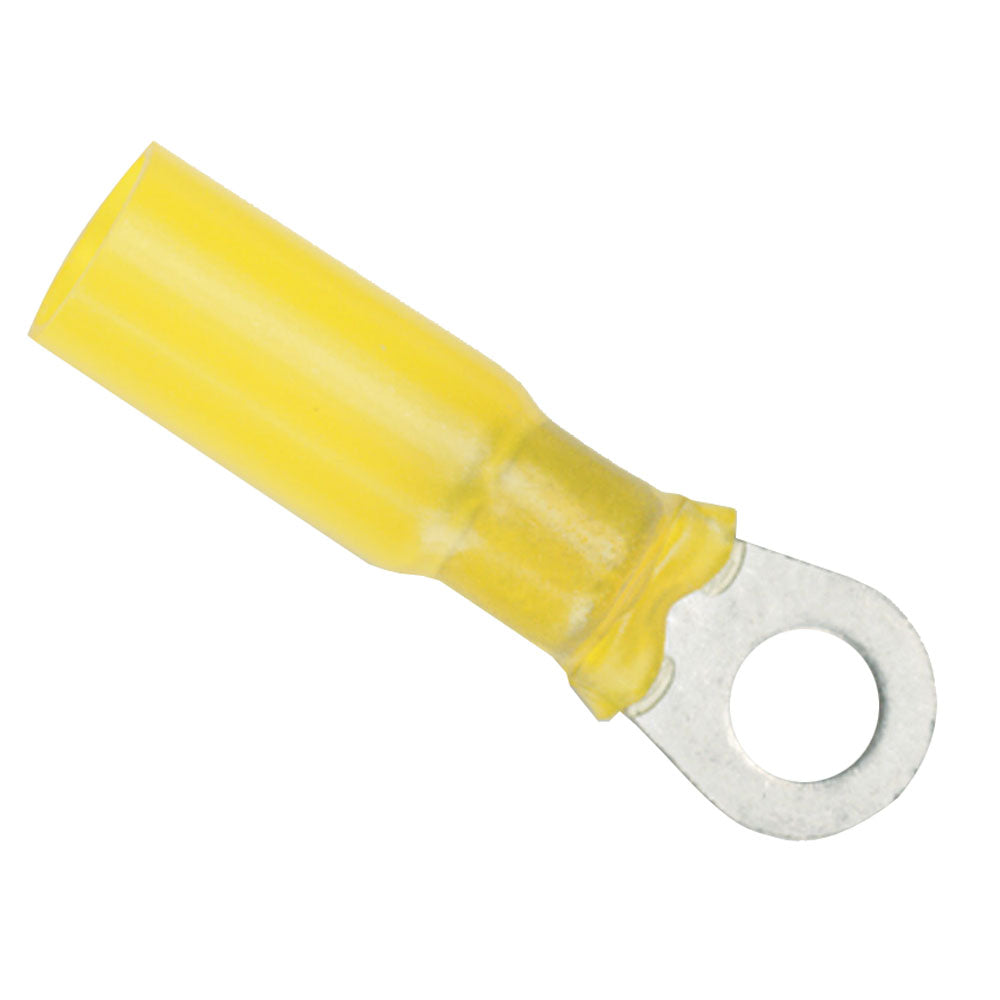

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Ensure reliable and durable electrical connections on your marine vessel with our 12-10 Gauge #8 Heat Shrink Ring Terminals. Designed specifically for marine applications, these high-quality terminals provide superior protection against the harsh conditions of maritime environments, ensuring safe and efficient performance.

Product Features

• Superior Durability: Cross-linked polyolefin tubing offers enhanced strength compared to PVC, providing superior protection and resistance to burning.
• Advanced Sealing: Heat-activated adhesive lining ensures a watertight seal against salt water, oil, acids, and sunlight, while also providing effective strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator, these terminals are preferred by experts for their resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with industry safety standards.
• High Shrink Ratio: Shrinks to one-third of the original size for a compact and secure fit.
• Heat Shrink Specifications: Activates at 257°F (125°C) for reliable performance under varying temperatures.
• Operating Temperature Range: Functions optimally between 40°C to 110°C.
• Built-In Adhesive: ANCOR heat shrink connectors feature built-in adhesive for enhanced sealing and strain relief.
• Corrosion Resistance: Tinned pure copper construction ensures maximum current flow and resistance to corrosion.
• Robust Construction: Brazed seam design offers maximum strength for enduring marine conditions.

Technical Specifications

Parameter	Details
Gauge Size	12-10 AWG
Screw Size	#8
Quantity	3-Pack
Shrink Ratio	Shrinks to 1/3 original size
Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Wire Range	12-10 AWG
Dimensions	3-5 mm
Box Dimensions	1" H x 1" W x 1" L
Weight	0.1 lbs
UPC	091887316025

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download Quick Guide (PDF)
