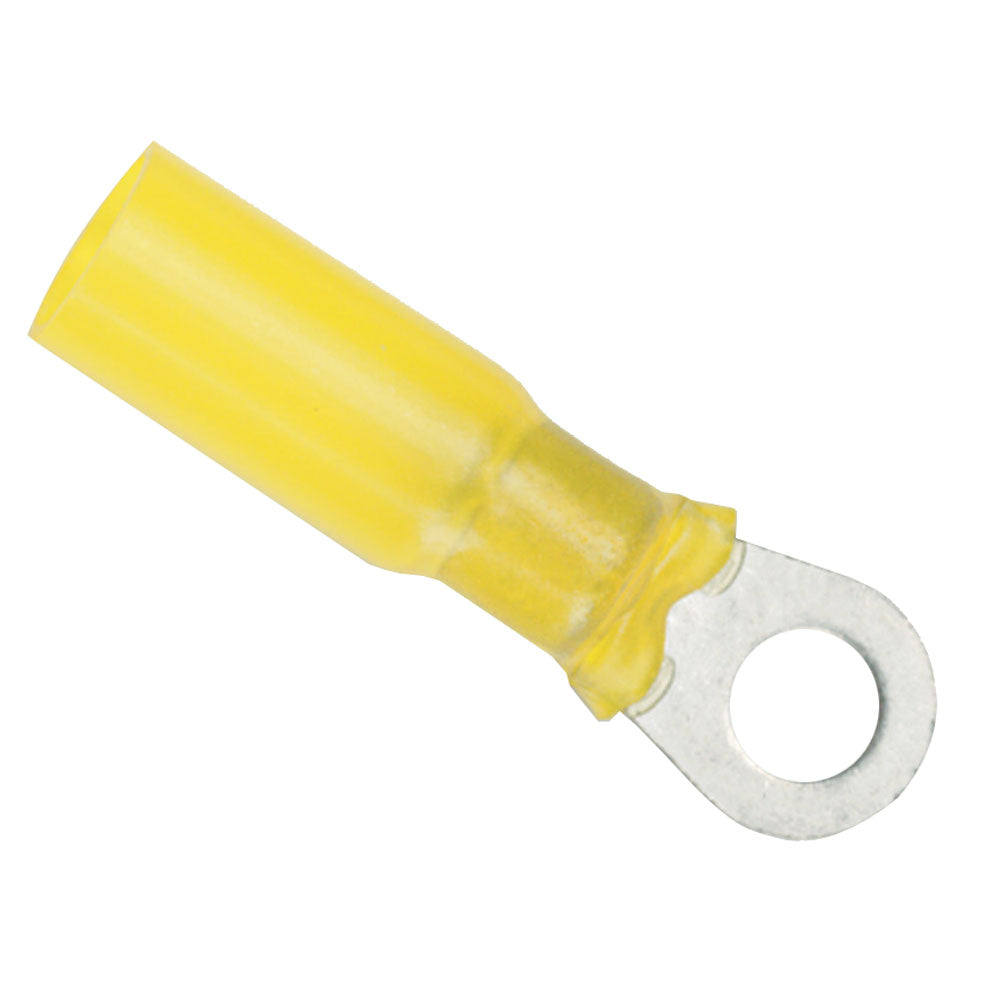

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and durable electrical connections on your boat with our 100-Pack of #8 Heat Shrink Ring Terminals. Designed specifically for marine applications, these ring terminals provide superior protection against the harsh marine environment, ensuring optimal performance and safety for your vessel's electrical systems.

Features

• Superior Tubing Material: Made with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC tubing and offer enhanced flame resistance, making them ideal for marine environments.
• Advanced Sealant: Features a heat-activated adhesive lining that creates an impervious seal against salt water, oil, acids, and sunlight, while also providing effective strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator, preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, ensuring long-lasting performance.
• Certified Safety: UL Listed and CSA Recognized for meeting stringent safety standards, giving you peace of mind for your marine electrical installations.
• High Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), providing a compact and secure fit for your connections.
• Wide Temperature Range: Operates effectively within a temperature range of 40°C to 110°C, suitable for various marine applications.
• Water-Tight Seal: Forms a water-tight barrier and offers ultimate vibration and strain relief, essential for the dynamic conditions on a boat.
• Corrosion Resistant: Tinned for excellent corrosion resistance, ensuring longevity in saltwater environments.
• Pure Copper Construction: Made with pure copper for maximum current flow and reliable electrical conductivity.
• Robust Design: Features a brazed seam for maximum strength, enhancing the durability of the terminals under constant marine use.

Specifications

Gauge	12-10 AWG
Screw Size	#8
Quantity	100-Pack
Heat Shrink	Yes
Wire Range	12-10 AWG
Diameter	3-5 mm
Operating Temperature	40°C to 110°C
Shrink Temperature	257°F / 125°C
Box Dimensions	1"H x 3"W x 8"L
Weight	0.4 lbs
UPC	091887316063

Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
