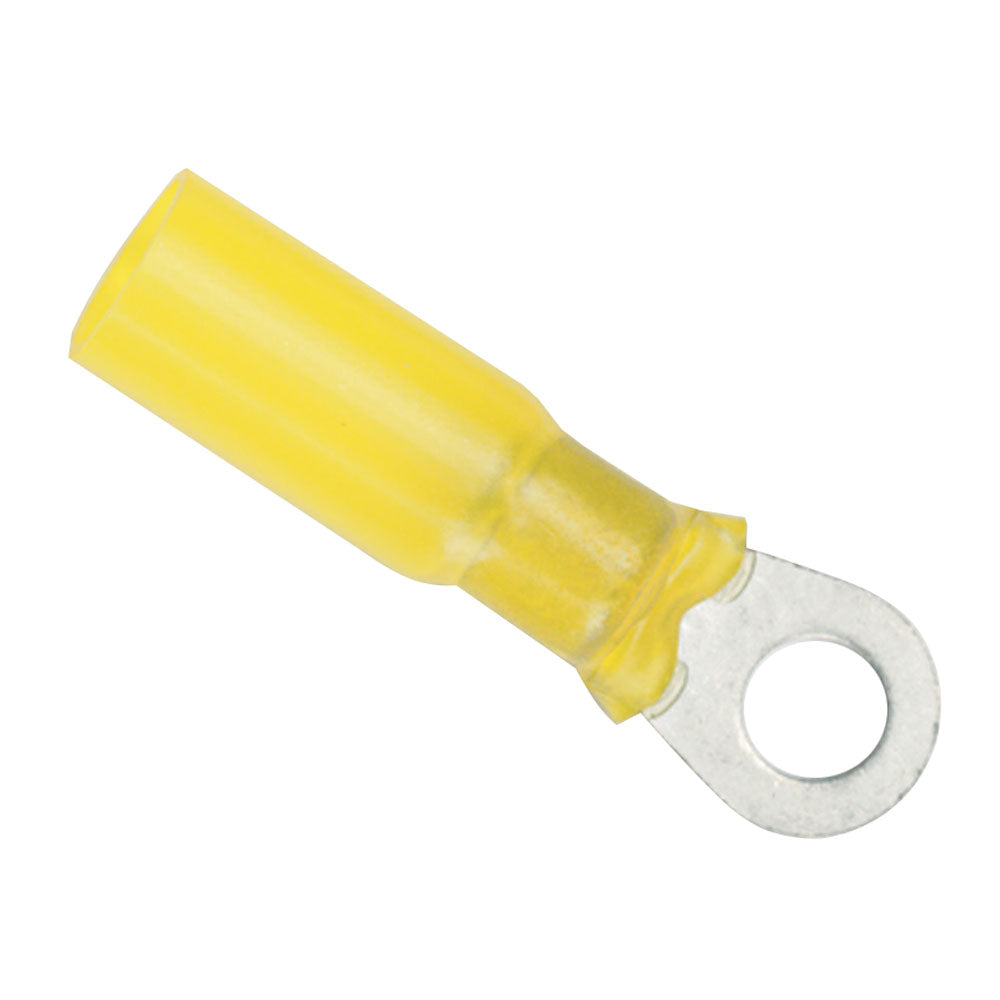

Ancor 12-10 Gauge - #10 Heat Shrink Ring Terminal - 3-Pack

Enhance the reliability and durability of your marine electrical connections with our high-quality #10 Heat Shrink Ring Terminals. Specifically engineered for the demanding conditions of marine and boating environments, these ring terminals ensure secure, corrosion-resistant connections that withstand exposure to water, salt, and harsh weather.

Product Features

• Superior Tubing: Cross-linked polyolefin tubing is significantly stronger than PVC, providing enhanced durability and resistance to burning.
• Advanced Sealing: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight while offering strain relief.
• Marine-Grade Insulation: Nylon insulator preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized for assured quality and safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size for a compact and secure fit.
• Heat Shrink Activation: Activates at 257° F (125° C) to ensure a tight and lasting seal.
• Wide Temperature Range: Operates efficiently between 40° C to 110° C, suitable for various marine applications.
• Integrated Adhesive: Ancor heat shrink connectors feature built-in adhesive for a watertight seal and ultimate vibration and strain relief.
• Corrosion Resistant: Tinned for enhanced corrosion resistance, ideal for saltwater environments.
• High Conductivity: Made from pure copper to maximize current flow and ensure reliable electrical performance.
• Robust Construction: Brazed seam for maximum strength and durability under marine conditions.

Specifications

Type	Ring Terminals
Gauge Size	12-10 AWG
Screw Size	#10
Quantity	3-Pack
Heat Shrink	Yes
Operating Temperature Range	40° C to 110° C
Shrink Temperature	257° F / 125° C
Box Dimensions	1" H x 1" W x 1" L
Weight	0.1 lbs
UPC	091887316087

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF)
