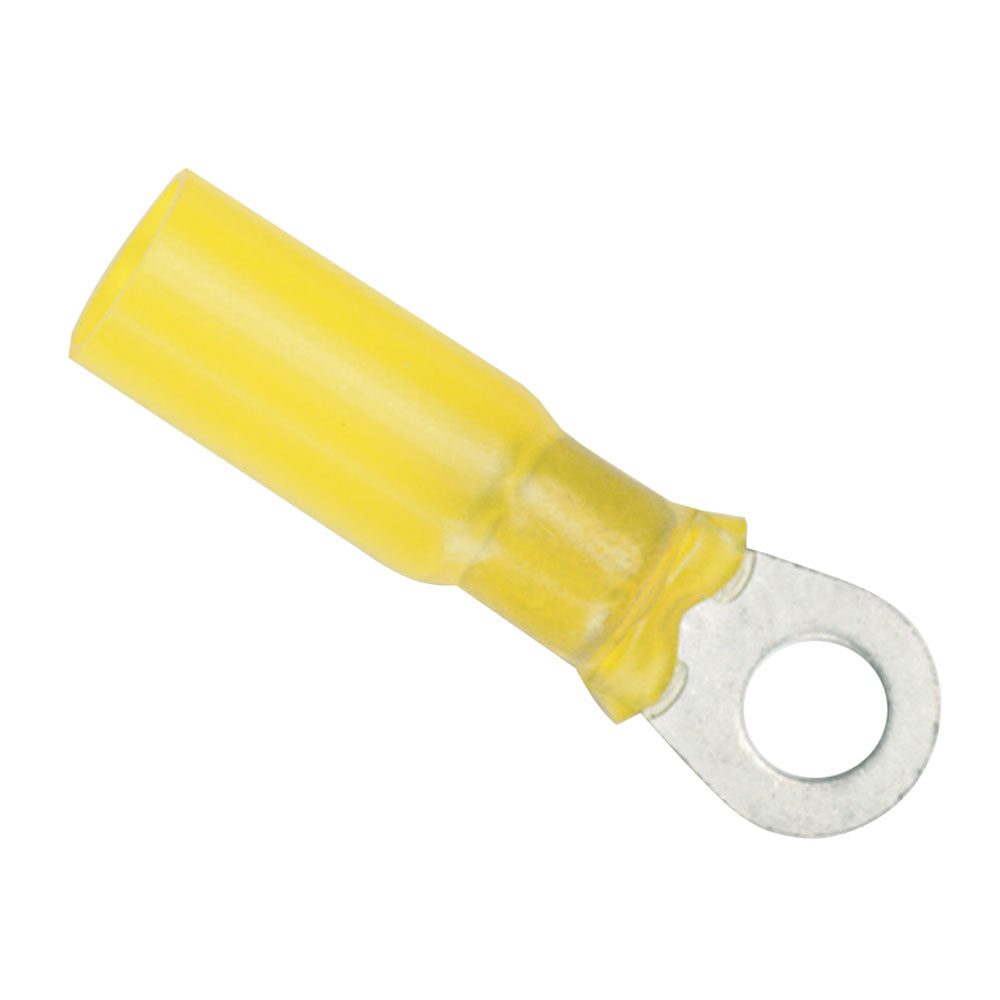

Ancor 12-10 Gauge - #10 Heat Shrink Ring Terminal - 25-Pack

Enhance your marine electrical projects with our premium 12-10 AWG #10 Heat Shrink Ring Terminals. Specifically designed for the demanding conditions of the marine environment, these ring terminals ensure secure, waterproof connections, providing reliable performance and longevity for all your boating electrical systems.

Product Features

• Constructed with cross-linked polyolefin tubing, offering superior strength and flame resistance compared to PVC tubing.
• Heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, while providing excellent strain relief.
• Features a marine-grade nylon insulator, trusted by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• UL Listed and CSA Recognized for safety and reliability.
• Boasts the highest shrink ratio in the industry, reducing to one-third of its original size for a tight fit.
• Activates shrinkage at 257° F (125° C) for quick and efficient installation.
• Operates effectively within a temperature range of 40° C to 110° C, suitable for various marine applications.
• Incorporates ANCOR’s heat shrink connectors with built-in adhesive for a seamless and durable seal.
• Forms a watertight seal, providing ultimate vibration and strain relief to protect your connections.
• Tinned for enhanced corrosion resistance, ideal for harsh marine environments.
• Made from pure copper to ensure maximum current flow and electrical efficiency.
• Features a brazed seam for added strength and durability in demanding conditions.

Specifications

Package Quantity	25 Pack
Heat Shrink	Yes
Type	Ring Terminals
Post Size	#10
Gauge	12-10 AWG
Box Dimensions	1" H × 4" W × 4" L
Weight	0.2 lbs
UPC	091887316100

Compliance

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

Quick Guide (PDF)
