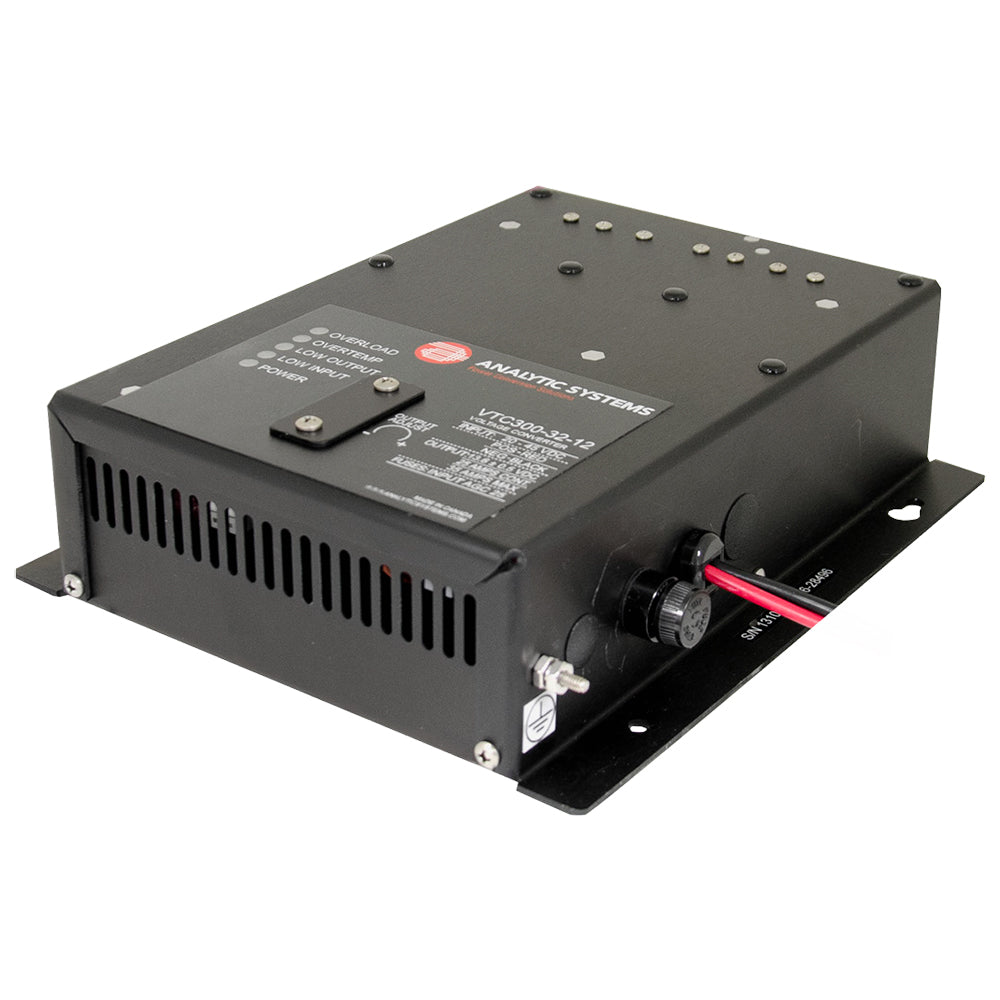

Analytic Systems Waterproof IP66 DC Converter 25/35A 12VDC Out/20-45VDC In

A versatile and reliable power solution for marine and boating applications, our Waterproof IP66 DC Converter ensures stable and efficient power management for your vessel’s electrical systems. Designed with durability and safety in mind, this converter withstands harsh marine environments while delivering precise voltage regulation and protection against power anomalies.

Advanced Switchmode Technology

Utilizing state-of-the-art switchmode technology, this DC Converter offers unmatched efficiency and ultra-quiet operation, making it ideal for maintaining a peaceful marine environment onboard. The single board design ensures a compact and robust build suitable for various boating applications.

Superior Noise Reduction

Multiple stages of filtering significantly reduce both radiated and conducted noise, ensuring that sensitive marine electronics operate without interference. This feature is essential for maintaining clear communication and optimal performance of navigation and entertainment systems on your vessel.

Adjustable Output Voltage

Customize the output voltage to meet your specific power requirements. Whether you need 12VDC or a different voltage within the 20-45VDC range, this converter provides the flexibility needed for various onboard devices and systems.

Comprehensive Safety Features

• Reverse Input Protection: Prevents damage caused by incorrect power connections.
• Over-Temperature Shutdown: Automatically shuts down the converter to prevent overheating.
• Current Limiting Protection: Safeguards against excessive current draw.
• Short Circuit Shutdown: Protects your electronics from short circuits.
• Output Overvoltage Crowbar: Shields connected devices from voltage spikes.
• Dry Contact Alarm Relay Output: Provides reliable alarm signals for system monitoring.

Indicator Alerts

Stay informed with audible and visual indicators that notify you of critical conditions such as low input voltage, low output voltage, constant current, and over-temperature situations. These indicators help you maintain optimal performance and address issues promptly.

Rugged and Reliable Construction

Built to endure the demanding conditions of marine environments, this DC Converter features high tolerance for shock and vibration. Its rugged design ensures years of safe and trouble-free operation, making it a dependable choice for your boating power needs.

Low EMI Operation

Experience ultra-quiet performance with low electromagnetic interference (EMI), which minimizes disruptions to your vessel’s sensitive electronics and communication systems.

Optional Remote Control and Monitoring

Enhance your power management with optional remote panel monitoring and On-Off control. This feature allows for convenient operation and monitoring of the converter from a distance, adding an extra layer of functionality to your marine setup.

Technical Specifications

Specification	Details
Input Voltage	20-45 VDC
Output Voltage	12 VDC (Adjustable)
Output Current	25/35 A
Ingress Protection	IP66 Waterproof
Operating Temperature	Wide Range Available
Warranty	Three Years Parts and Labour

Additional Features

• Power-sensitive electronics without interference
• Parallel output diodes available for expanded configurations
• Conformal coating and/or ruggedization for harsh environments

Why Choose Our DC Converter for Your Boat?

When it comes to marine power solutions, reliability and safety are paramount. Our Waterproof IP66 DC Converter is engineered to meet the rigorous demands of boating, providing steady and efficient power while protecting your valuable electronics. Its robust construction, combined with advanced safety features and customizable options, makes it the perfect addition to any vessel seeking dependable power management.
