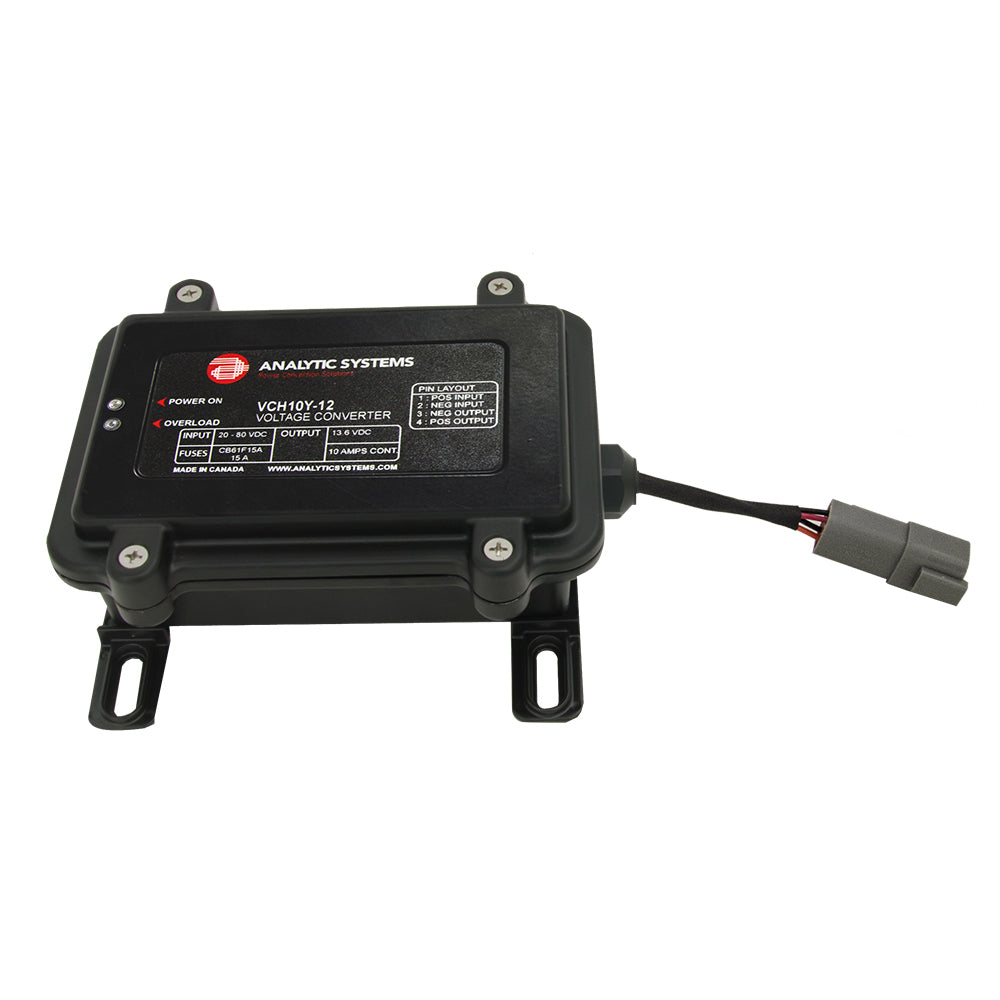

Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized

The VCH10 Step Down Voltage Converter is engineered specifically for marine and boating applications, delivering reliable and efficient power conversion in the most demanding environments. Its waterproof and rugged design ensures seamless performance, making it an essential component for your vessel's electrical system.

Superior Waterproof and Rugged Design

Built with an IP66 rated watertight and EMC shielded enclosure, the VCH10 is designed to withstand harsh marine conditions. Whether exposed to saltwater spray or extreme weather, this voltage converter maintains optimal performance and longevity, ensuring your boat's electrical systems remain dependable.

High Efficiency and Powerful Output

The VCH10 features an all surface mount high-frequency design that offers exceptional reliability and efficiency exceeding 92%. It delivers up to 10 amps of output current at 12, 24, 36, or 48 volts from any higher input voltage between 20 and 80 volts DC. With a maximum power output of up to 544 watts at 48 VDC, it provides ample power for a wide range of marine applications.

Robust and Secure Connectivity

For secure and reliable connections, the standard VCH10W model is equipped with a Deutsch connector on a pigtail input/output cable. The military-grade VCH10MW variant enhances durability with separate bayonet-style MIL connectors for both input and output, ensuring robust performance even in challenging marine environments.

Reliable Performance in Extreme Conditions

The VCH10MW is engineered to operate in a wide temperature range from -40 to +55 degrees Celsius. It has been rigorously tested and confirmed to meet MIL-STD-461F standards for radiated and conducted emissions, as well as MIL-STD-810G for shock and vibration. This ensures consistent and reliable performance, no matter the conditions.

Advanced Safety and Protection Features

• Reverse input protection prevents damage from incorrect connections
• Output current limiting safeguards your devices from overload
• Over-voltage protection maintains safe operation

Key Features

• Watertight O-ring sealed and EMC gasketed enclosure
• MIL connectors for enhanced durability and secure connections
• ‘Output ON’ and ‘Overload’ LED indicators for easy monitoring
• Compact size and easy mounting, ideal for marine installations
• Supports input voltages up to 80V for versatile applications
• Heavy-duty ruggedization with a wide operating temperature range
• Paralleling diodes for improved performance and reliability
• Custom output voltages available to meet specific marine needs
• Two-year warranty covering parts and labor for peace of mind

Technical Specifications

Input Voltage	20-80 V DC
Output Current	10 A
Output Voltage	12 V DC
Dimensions	5" H x 8" W x 10" L
Weight	2.05 lbs

Perfect for Marine and Boating Applications

The VCH10 Step Down Voltage Converter is an ideal choice for marine enthusiasts looking to ensure their boat's electrical systems are powered efficiently and reliably. Its rugged construction, high efficiency, and comprehensive protection features make it a trusted component for a wide range of marine electrical needs.

Warranty and Support

Enjoy peace of mind with our two-year warranty covering both parts and labor. Our dedicated support team is here to assist you with any questions or concerns, ensuring your VCH10 converter performs flawlessly on every voyage.
