Analytic Systems Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized

Ensure reliable and efficient battery charging on your marine adventures with our Waterproof IP66 DC Battery Charger. Designed specifically for the demanding environments of boats and marine equipment, this ruggedized charger delivers up to 10 amps at 24V while withstanding harsh weather and corrosive saltwater conditions.

Durable and Weather-Resistant Design

Built to endure the toughest marine conditions, the BCH10 Step Down Battery Charger features an IP66-rated watertight enclosure and EMC shielding. Whether you're navigating through rainstorms or docking in rough waters, this charger maintains optimal performance without compromising on safety.

High Efficiency and Compact Performance

Utilizing an all surface mount high-frequency design, the BCH10 offers superior reliability and efficiency, achieving over 91% power efficiency. Its compact size ensures easy installation in tight engine compartments or boat cabins without taking up valuable space.

Advanced Protection Features

Safety is paramount on the water. This charger includes multiple protection mechanisms, such as:

• Reverse input and battery connection protection
• Output over-voltage protection
• Spark-free battery connection
• Smart Ideal Diode output circuitry to prevent reverse current from the battery back into the converter

Versatile Connectivity Options

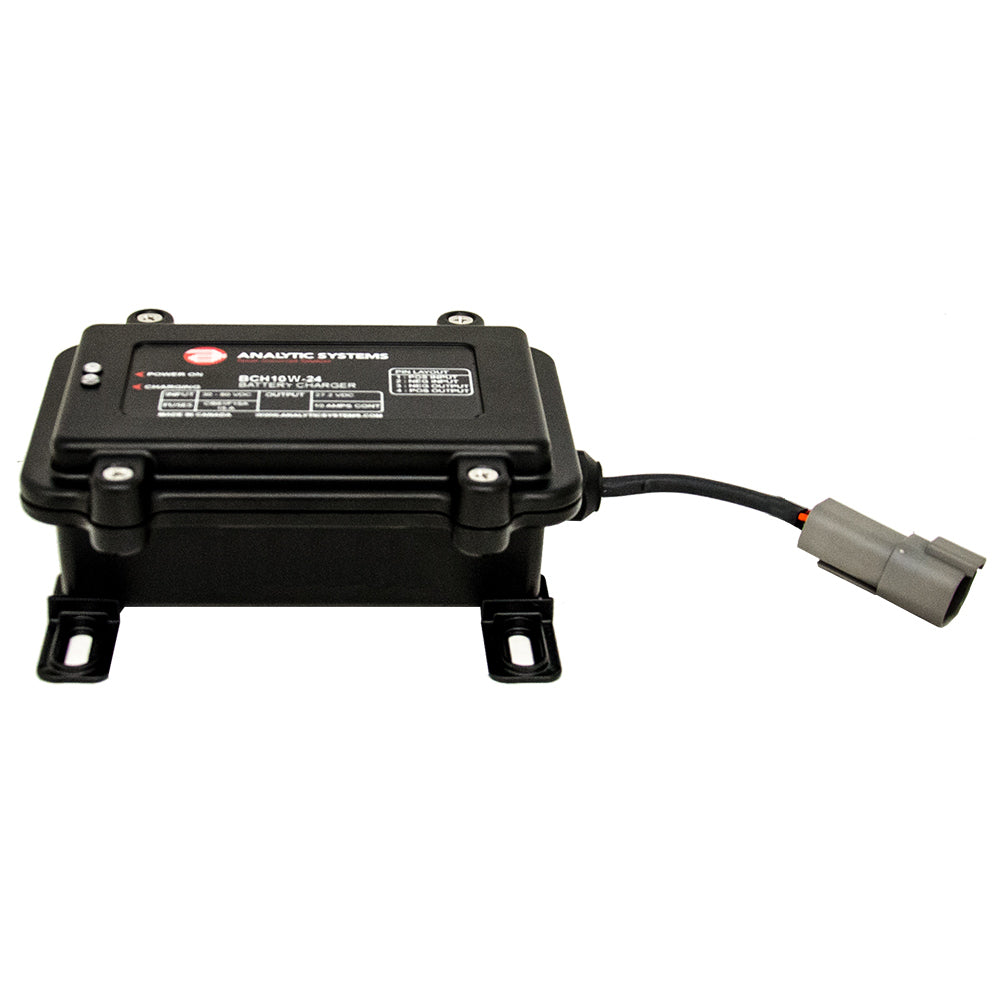

Choose between the standard BCH10W model with a Deutsch connector on a pigtail cable or the military-grade BCH10MW, which features separate bayonet-style MIL connectors for both input and output. Both options ensure secure and reliable connections suitable for marine applications.

Wide Operating Temperature Range

Whether you're sailing in freezing temperatures or tropical heat, the BCH10MW maintains consistent performance. It is rated for operation from -40°C to +55°C and meets stringent MIL-STD-461F and MIL-STD-810G standards for radiated and conducted emissions, shock, and vibration.

Technical Specifications

Feature	Specification
Input Voltage	30-80V DC
Output Voltage	24V DC
Charging Current	10A
Power Output	Up to 544 Watts at 48 VDC
Dimensions	5" H x 8" W x 9" L
Weight	2.1 lbs
Portability	No

Key Features

• Watertight O-ring sealed and EMC gasketed enclosure for superior protection
• “Output ON” and “Charging” LED indicators for easy monitoring
• Up to 80V input to accommodate a wide range of power sources
• Compact size with easy mounting options for versatile installation
• Choice between Deutsch DT04-4P connector on pigtail or MIL connectors for secure connections
• Heavy-duty ruggedization suitable for marine and industrial environments
• Customizable output voltages and connector arrangements to fit specific marine setups
• Integrated input and output EMC filters to reduce electromagnetic interference
• Two-year warranty covering parts and labor for peace of mind

Why Choose Our Marine-Grade DC Battery Charger?

Optimize your boat’s electrical system with a charger that combines durability, efficiency, and advanced protection features. Whether powering your boat’s batteries, heavy equipment, or alternative energy systems, the BCH10 Step Down DC Battery Charger is the reliable choice for marine enthusiasts seeking top performance in every voyage.
