Analytic Systems Waterproof IP66 DC Battery Charger 10A, 12V Out, 20-80V In, Ruggedized

The BCH10 Step Down Battery Charger is engineered for marine and boating applications, providing reliable and efficient charging in harsh environments. Its waterproof IP66 rating and rugged construction ensure dependable performance on your vessel, while the high efficiency and smart circuitry protect your boat's battery system.

Robust and Waterproof Design

Designed to withstand the demanding conditions of the marine environment, the BCH10 Charger features an IP66 watertight enclosure and EMC shielding. Whether exposed to saltwater, vibrations, or extreme temperatures, this charger maintains optimal performance, making it ideal for boats, yachts, and other marine applications.

Powerful and Efficient Charging

Delivering up to 10 amps of charging current at 12, 24, 36, or 48 volts, the BCH10 Step Down series can handle input voltages ranging from 20 to 80 volts DC. Its high-frequency, surface-mount design ensures over 91% efficiency, maximizing power delivery to your boat's battery system.

Advanced Protection Features

The BCH10 Charger is equipped with multiple protection mechanisms to safeguard your battery and equipment:

• Reverse input protection
• Reverse battery connection protection
• Output over-voltage protection
• Spark-free connection to the battery
• Smart Ideal Diode output circuitry to prevent reverse current flow

Versatile Connectivity

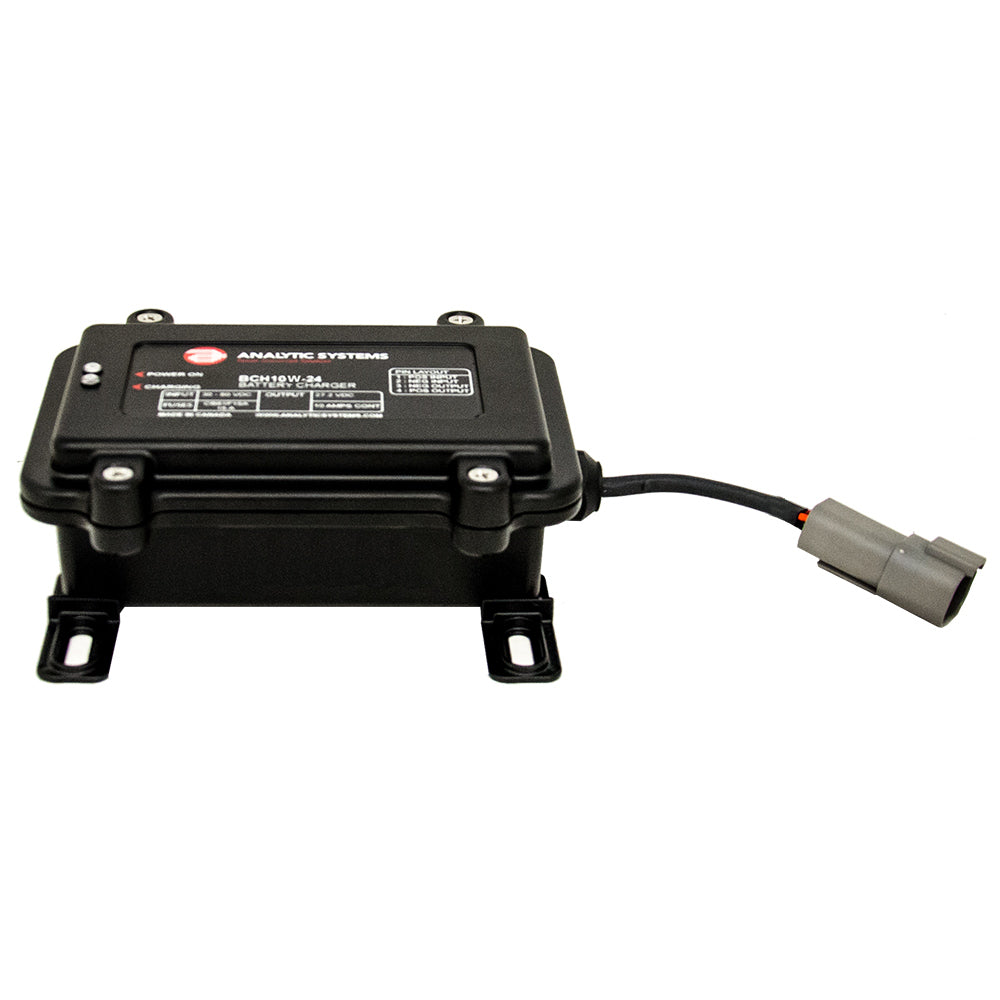

Choose between the standard BCH10W model with a Deutsch connector on a pigtail cable or the military-grade BCH10MW featuring separate bayonet-style MIL connectors for input and output. Custom connector arrangements and output voltages are available to meet specific marine electrical setups.

Reliable Performance in Extreme Conditions

The BCH10MW variant is rated for operation between -40°C to +55°C, meeting MIL-STD-461F for radiated and conducted emissions and MIL-STD-810G for shock and vibration. This ensures dependable operation on demanding vessels exposed to varying climates and handling conditions.

Compact and Easy to Install

With a compact size of 5"H x 8"W x 9"L and weighing just 2.1 lbs, the BCH10 Charger is easy to mount in tight spaces on your boat. Its surface-mount design minimizes size without sacrificing power, making it a seamless addition to your marine electrical system.

Specifications

Feature	Details
Input Voltage	20-80 V DC
Output Current	10 A
Output Voltage	12 V DC
Dimensions	5"H x 8"W x 9"L
Weight	2.1 lbs
Operating Temperature	-40°C to +55°C
Protection Features	Reverse input, reverse battery connection, output over-voltage, spark-free connection, Smart Ideal Diode
Connectors	Deutsch DT04-4P or MIL bayonet style
Warranty	2 years (parts and labor)

Additional Features

• Watertight O-ring sealed and EMC gasketed enclosure
• ‘Output ON’ and “Charging” LED indicators
• Custom output voltages available
• Input and output EMC filters
• Two-year warranty (parts and labor)
