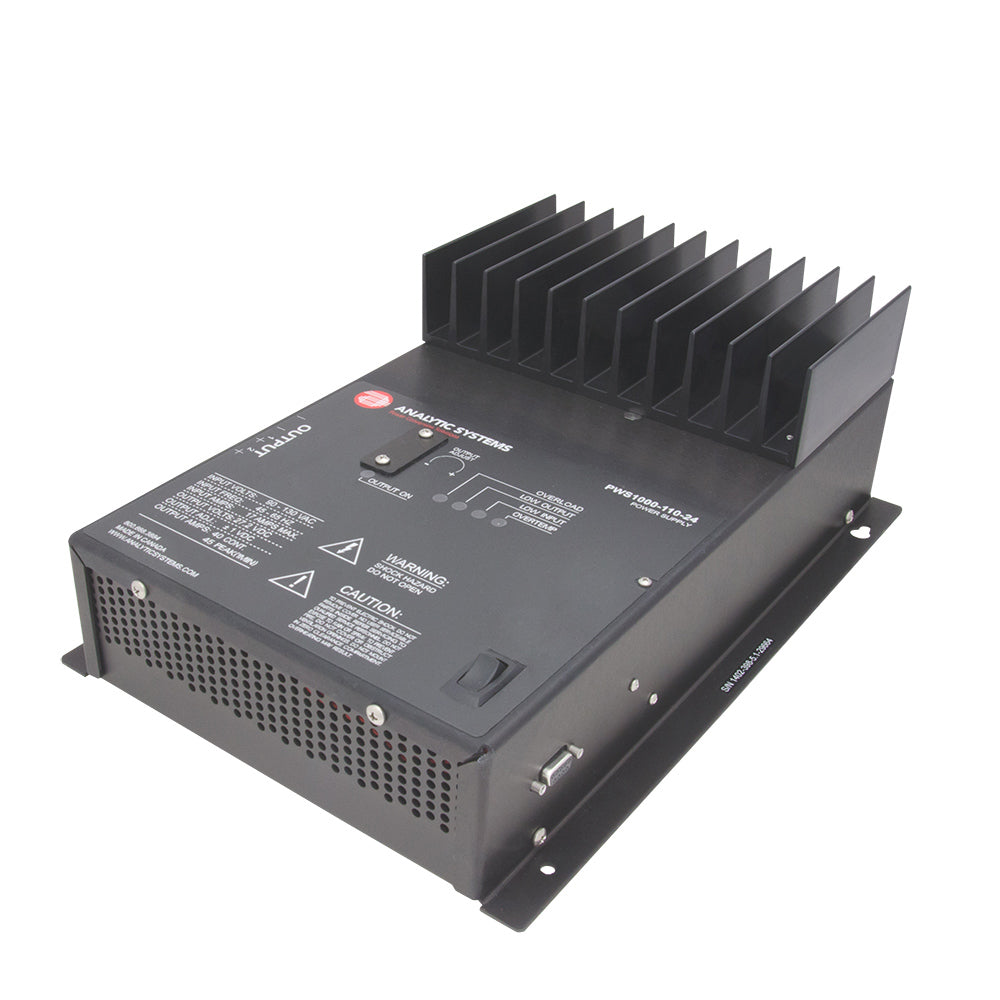

Analytic Systems Power Supply 110AC to 24DC/40A

The Power Supply PWS1000 Series is the ideal solution for marine and boating applications, delivering reliable and efficient 12, 24, or 48 Volts DC at up to 1000 Watts of continuous power from a versatile 110 or 220 Volt AC source. Designed with the demanding marine environment in mind, this power supply ensures your onboard electronics operate smoothly and safely.

Advanced Switchmode Technology

Equipped with state-of-the-art Switchmode technology and robust IGBT switching transistors, the PWS1000 Series offers exceptional reliability and efficiency in a compact form factor. Innovative circuit designs minimize output ripple, providing cleaner power comparable to larger, less efficient linear power supplies.

Enhanced Safety and Protection

Safety is paramount on the water. The PWS1000 includes multiple protection features such as:

• Input fuse protection
• Thermal shutdown to prevent overheating
• Current limiting to safeguard against overloads
• Short circuit protection with automatic recovery
• Output Overvoltage Crowbar to protect connected devices from excessive voltage

Quiet and Efficient Operation

The newly updated single-board design ensures ultra-quiet performance, making it perfect for environments where noise reduction is essential. The latest generation of current mode PWM control enhances efficiency while maintaining minimal electromagnetic interference (EMI), ensuring your sensitive marine electronics remain unaffected.

Customizable and User-Friendly

Tailor the power supply to your specific needs with adjustable output voltage settings. The PWS1000 features:

• Adjustable output voltage for versatile applications
• Audible and visual indicators for low input voltage, low output voltage, over temperature, overload, and output status
• Four-contact output terminals (two positive and two negative) for easy and secure connections
• Field convertible input for 110 or 220 VAC

Additional Features for Marine Use

Designed to withstand the rigors of marine environments, the PWS1000 Series offers:

• Extremely rugged construction for durability in harsh conditions
• Ultra-quiet low EMI operation to reduce interference with onboard electronics
• Dry contact output fail relay for enhanced system reliability
• Remote control and digital Volt/Ammeter options for convenient monitoring and management
• Custom output voltages available from 8V to 55V to meet various marine equipment requirements
• 19” Rackmount option for seamless integration into existing marine electrical systems
• Parallel output diodes available for expanded power capabilities

Technical Specifications

Parameter	Specification
Input Voltage	110VAC or 220VAC (Field Convertible)
Output Voltage	Adjustable: 12V, 24V, 48V (Custom options 8V to 55V available)
Continuous Power	1000 Watts
Output Current	40A
Protection Features	Input fuse, thermal shutdown, current limiting, short circuit protection, overvoltage crowbar
Indicators	Audible & visual indicators for various statuses
Warranty	Three-year parts and labor

Why Choose the PWS1000 Series for Your Marine Needs?

With its combination of rugged durability, advanced protection features, and customizable options, the PWS1000 Series power supply is the perfect choice for marine and boating enthusiasts who demand reliable and efficient power solutions. Ensure your vessel's electronics are powered safely and efficiently with Analytic Systems’ trusted technology.
