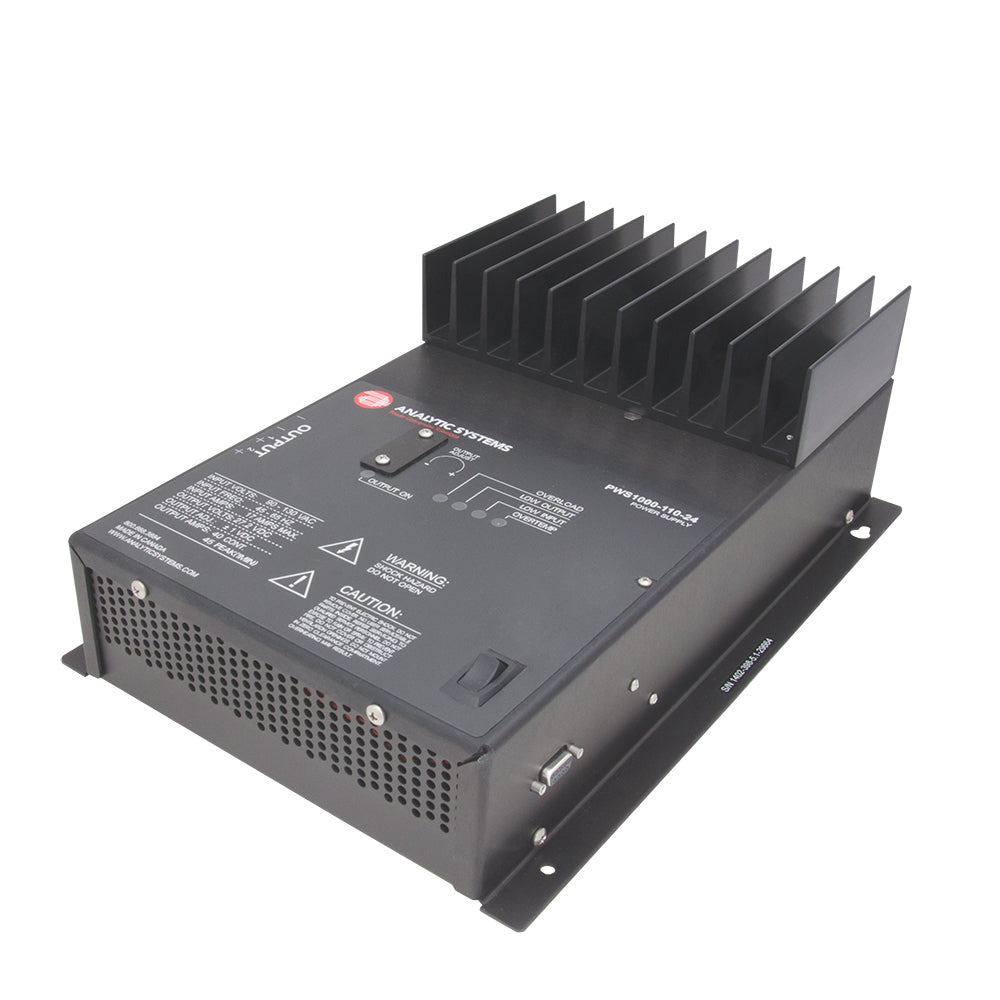

Analytic Systems Power Supply 110AC to 12DC/70A

The PWS1000 Series Power Supply is the ultimate solution for marine and boating applications, delivering reliable and efficient 12V DC power to keep your vessel's electronics running smoothly. Designed to withstand the demanding marine environment, this power supply ensures uninterrupted performance whether you're cruising on calm waters or navigating through rough seas.

Overview

The PWS1000 Series transforms your boat's 110V or 220V AC power source into a stable 12V, 24V, or 48V DC output with up to 1000 Watts of continuous power. Utilizing advanced switchmode technology and robust IGBT switching transistors, this power supply offers exceptional reliability and efficiency in a compact, lightweight design. Innovative circuitry minimizes output ripple, rivaling the performance of traditional linear power supplies while maintaining a significantly smaller footprint.

Key Features

• Rugged Construction: Engineered for the harsh conditions of marine environments, ensuring years of trouble-free operation.
• Adjustable Output Voltage: Customize the voltage output to meet the specific needs of your onboard electronics.
• Ultra-Quiet Operation: Low EMI design ensures minimal noise, perfect for maintaining a peaceful vessel ambiance.
• Comprehensive Protection:
  • Input Fuse
  • Thermal Shutdown
  • Current Limiting
  • Short Circuit Protection with Automatic Recovery
  • Output Overvoltage Crowbar
• Indicators and Controls:
  • Audible & Visual Indicators for Low Input Voltage, Low Output Voltage, Over Temperature, Overload, and Output On
  • Digital Volt/Ammeter Option
• Flexible Input: Field convertible for either 110V or 220V AC input to suit your marine power setup.
• Easy Connectivity: Features a four-contact output terminal (two positive and two negative) for straightforward device connections.

Technical Specifications

Parameter	Specification
Input Voltage	110V / 220V AC
Output Voltage	12V / 24V / 48V DC (Customizable from 8V to 55V)
Output Current	60-70A
Continuous Power	1000 Watts
Dimensions	7" H x 12" W x 16" L
Weight	12.3 lbs
Warranty	Three-Year Parts and Labor

Installation and Reliability

The PWS1000 Series is designed for easy installation in marine settings. Its compact size fits seamlessly into limited spaces on your vessel, while the rugged construction ensures durability against vibrations, moisture, and temperature fluctuations common in marine environments. The power supply’s advanced protection features safeguard your onboard electronics, providing peace of mind during extended voyages.

Additional Options

• Remote Control Option: Manage your power supply remotely for added convenience.
• Digital Voltmeter/Ammeter: Monitor your power usage in real-time with the optional digital display.
• Rackmount Model: Available in a 19” rackmount configuration for organized and efficient power management.
• Parallel Output Diodes: Enhance reliability and connection flexibility with available parallel diodes.

Why Choose PWS1000 for Your Marine Needs?

Investing in the PWS1000 Series means choosing a power supply that delivers unmatched performance, reliability, and versatility tailored for marine applications. Whether you're outfitting a small boat or a large vessel, the PWS1000 ensures your electrical systems remain powered and protected, allowing you to focus on enjoying your time on the water.
