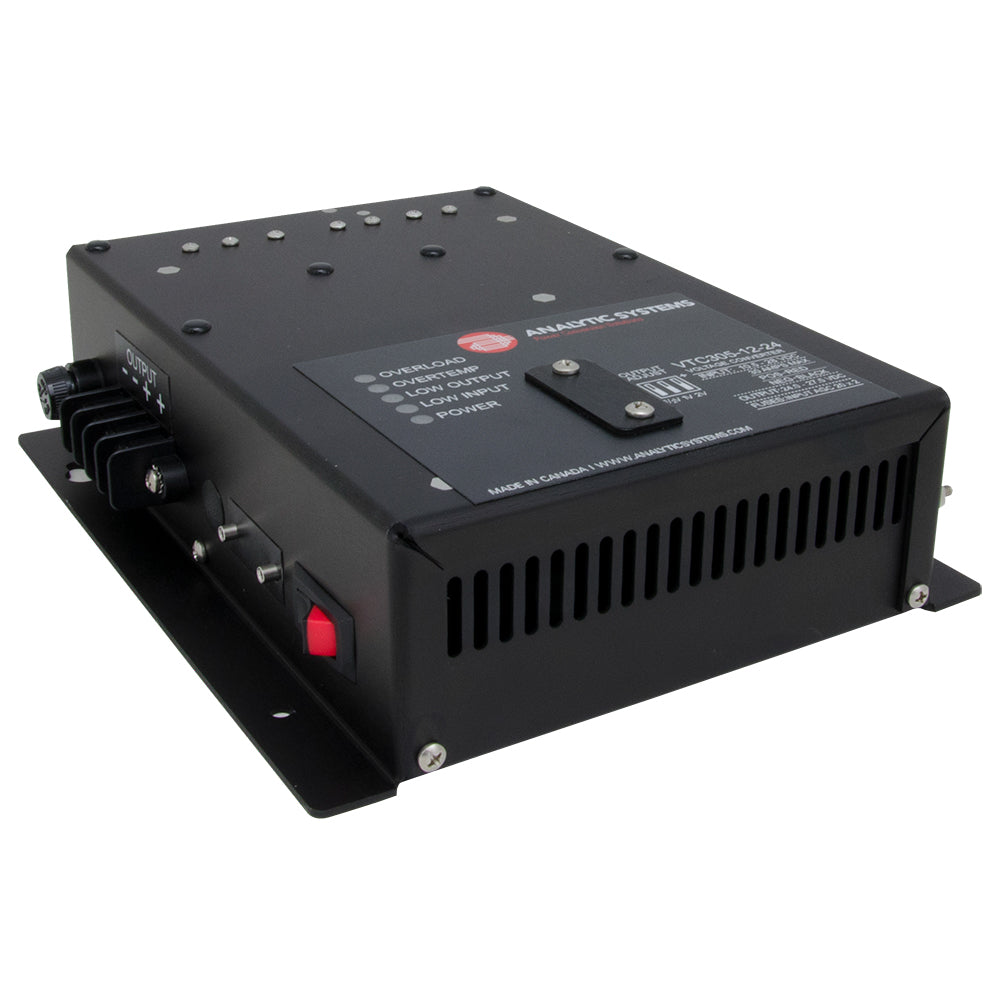

Analytic Systems Non Isolated DC/DC Converter 27A - 12V Out - 11-15V In

Enhance your marine electrical system with our high-performance Non-Isolated DC/DC Converter. Designed specifically for boating and marine applications, this converter ensures stable and reliable power supply, whether you're cruising the open seas or docked at port.

Product Overview

The Non-Isolated DC/DC Converter steps up a 12 VDC battery to a selectable output between 13.5 and 17.0 VDC or 24.0 and 27.5 VDC in 0.5 VDC increments using a 3-position DIP switch. It also stabilizes 12V or 24VDC power systems, providing peace of mind with its comprehensive safety features. If the input voltage exceeds the regulated output, the converter seamlessly passes the voltage through with full LC filtering and a minimal schottky diode drop of 0.5 VDC or less.

Key Features

• Ultra-quiet operation ensures a peaceful boating experience
• Rugged and reliable construction for years of safe, trouble-free use
• Simple, user-friendly operation
• Current limiting protection to safeguard your equipment
• Paralleling diodes for enhanced performance
• European ROHS Compliant: Lead-Free Manufactured
• Electric Fork Lift compatible with effective filtering and surge suppression
• Open frame design with heat sink bars for optimal heat dissipation
• Safety Special Inspection certified (CSA/UL)
• Heavy-duty ruggedization with a wide temperature range suitable for marine environments
• Customizable input/output options available
• Three-year parts and labor warranty for added assurance

Advanced Safety Features

• Reverse input protection prevents damage from incorrect connections
• Low input voltage alarm alerts you when battery levels are low
• Low output voltage alarm ensures your devices receive consistent power
• Over-temperature shutdown and alarm protect against overheating
• Output overvoltage crowbar safeguards connected equipment

Optional Enhancements

• Dry contact alarm relay output for seamless integration with other systems
• Remote panel monitoring with On/Off control for added convenience

Marine Applications

Perfect for a variety of marine and boating uses, including:

• Temporarily increasing brightness of 12V headlights or work lights
• Boosting voltage in automotive or marine ignition systems for hotter sparks and preventing failures during engine start
• Stabilizing 12V and 24VDC power systems in marine, automotive, or aeronautical environments
• And much more, ensuring your vessel's electrical systems perform reliably under all conditions

Technical Specifications

Parameter	Specification
Input Voltage	11-15 VDC
Output Voltage	12 VDC (Adjustable to 13.5-17.0 VDC or 24.0-27.5 VDC)
Output Current	27 A
Increment Adjustment	0.5 VDC via 3-position DIP switch
Protection Features	Reverse input, low input/output voltage alarms, over-temperature shutdown, overvoltage crowbar
Compliance	European ROHS, CSA/UL certified
Warranty	3 years parts and labor
