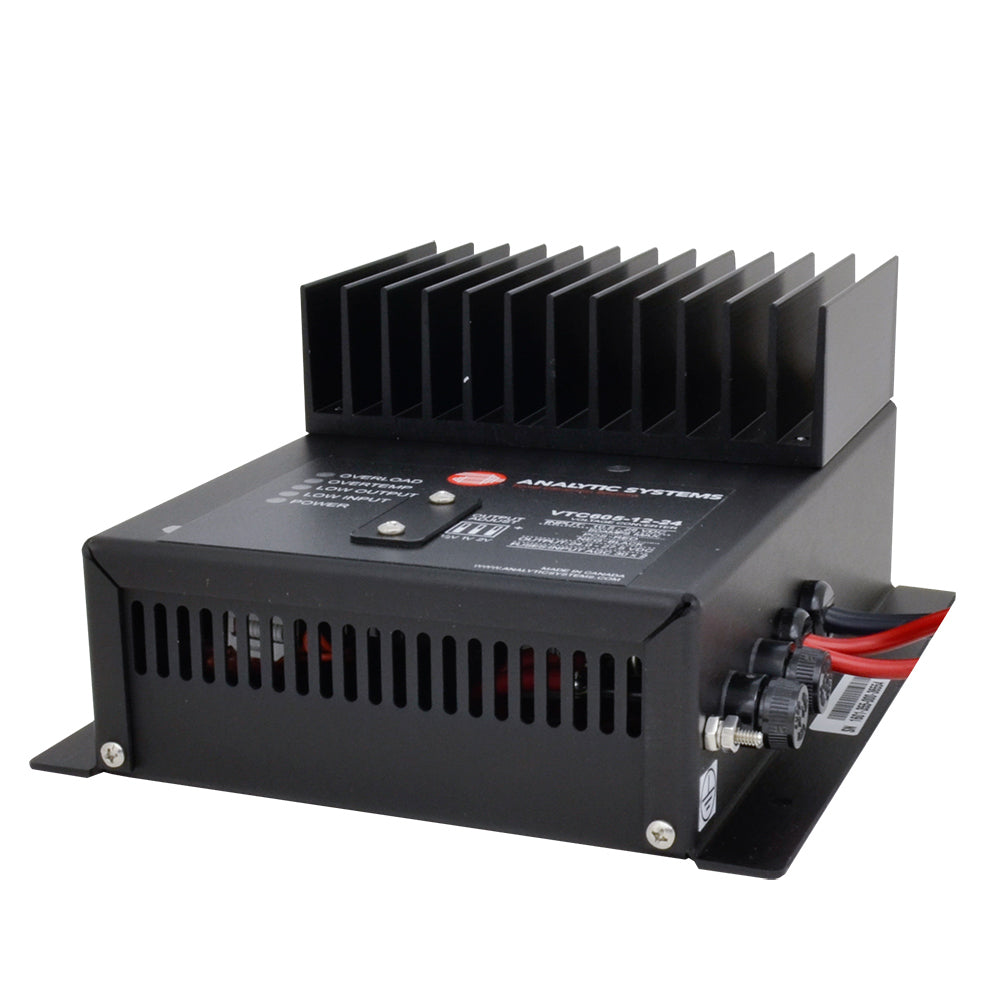

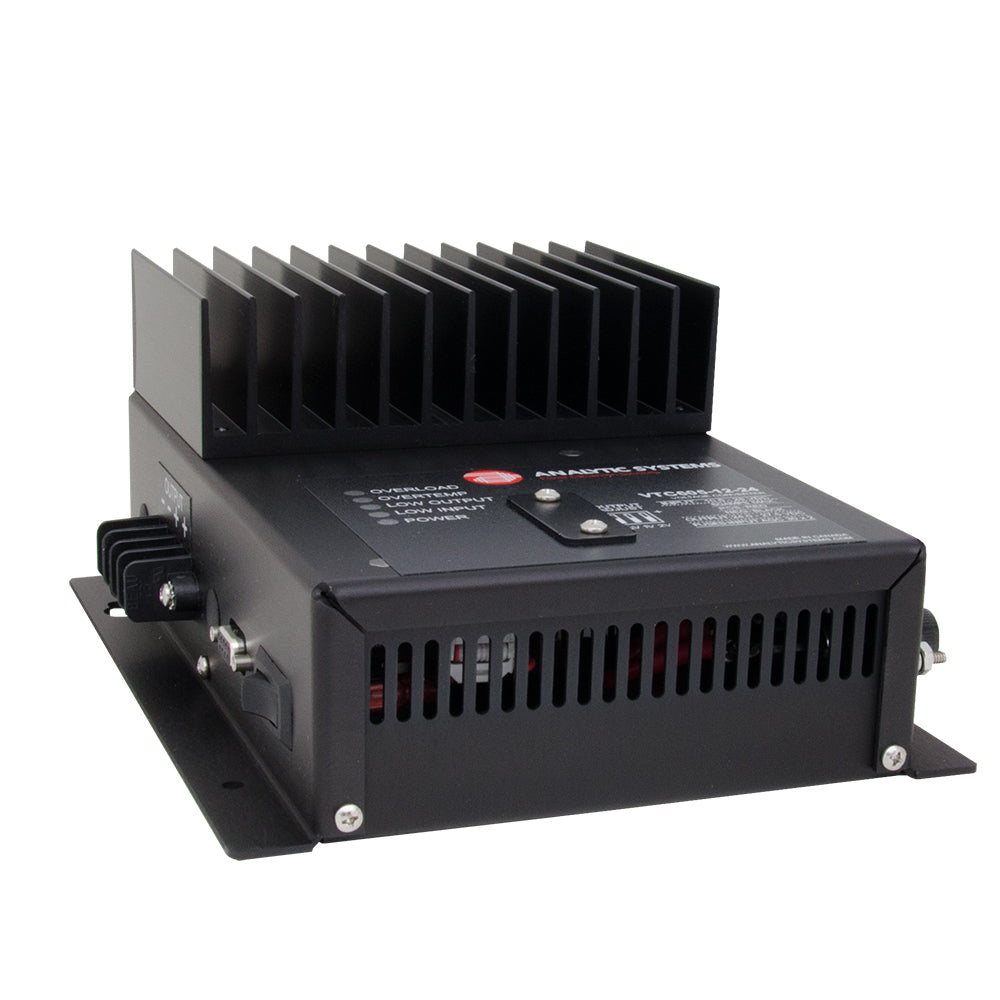

Analytic Systems Non Iso DC/DC Converter 22A, 24V Out, 11-15V In

Optimize your marine electrical system with our high-performance Non-Isolated DC/DC Converter. Designed specifically for boating applications, this converter ensures stable and reliable power management, enhancing the performance of your vessel’s electrical components.

Key Features

• High Efficiency: Step up a 12 VDC battery to a stable 24V output, ideal for various marine applications.
• Adjustable Output: Easily adjust output between 13.5V and 17.0V or 24.0V and 27.5V in 0.5 V increments using the 3-position DIP switch.
• Comprehensive Safety Protections:
  • Reverse Input Protection
  • Low Input Voltage Alarm
  • Low Output Voltage Alarm
  • Over Temperature Shutdown and Alarm
  • Dry Contact Alarm Relay Output
  • Output Overvoltage Crowbar Protection
• Seamless Voltage Pass-Through: When input voltage exceeds regulated output, the unit passes the voltage through with full LC filtering and a single Schottky diode drop (0.5 VDC or less).
• Optional Remote Monitoring: Remote panel monitoring with On/Off control available for enhanced convenience.

Applications for Marine Use

Our DC/DC Converter is perfect for a variety of marine applications, including:

• Temporarily brightening 12-volt headlights or work lights for better visibility during night navigation.
• Increasing voltage to automotive or marine ignition systems for hotter sparks and preventing failures due to voltage drops during engine start.
• Stabilizing 12V and 24V DC power systems in marine environments, ensuring reliable performance of onboard electronics.
• Enhancing the performance of navigation and communication equipment by providing consistent power supply.

Technical Specifications

Why Choose Our DC/DC Converter?

• Ultra-Quiet Operation: Power-sensitive electronics operate without interference, ensuring smooth performance of all onboard devices.
• Rugged and Reliable: Built to withstand the harsh marine environment, guaranteeing years of safe and trouble-free operation.
• Easy to Use: Simple operation with straightforward adjustments and monitoring.
• Compliance and Safety: European ROHS compliant (Lead Free Manufactured) and undergoes safety special inspection (CSA/UL).
• Heavy-Duty Construction: Open frame design with heat sink bars, heavy-duty ruggedization, and a wide temperature range suitable for marine conditions.
• Customization and Warranty: Custom input/output options available and backed by a three-year parts and labor warranty.

Installation and Maintenance

Installing our DC/DC Converter in your marine setup is straightforward. Ensure proper ventilation and secure mounting to maintain optimal performance. Regularly check connections and monitor the system using available alarms and remote monitoring options to ensure continuous reliable power supply.

Customer Support

We stand behind our products with exceptional customer service. If you have any questions or need assistance with installation and setup, our support team is here to help you ensure your marine electrical system operates at its best.
